Yamaha EF7000 - FUEL TANK, CANISTER

3-7
ENG

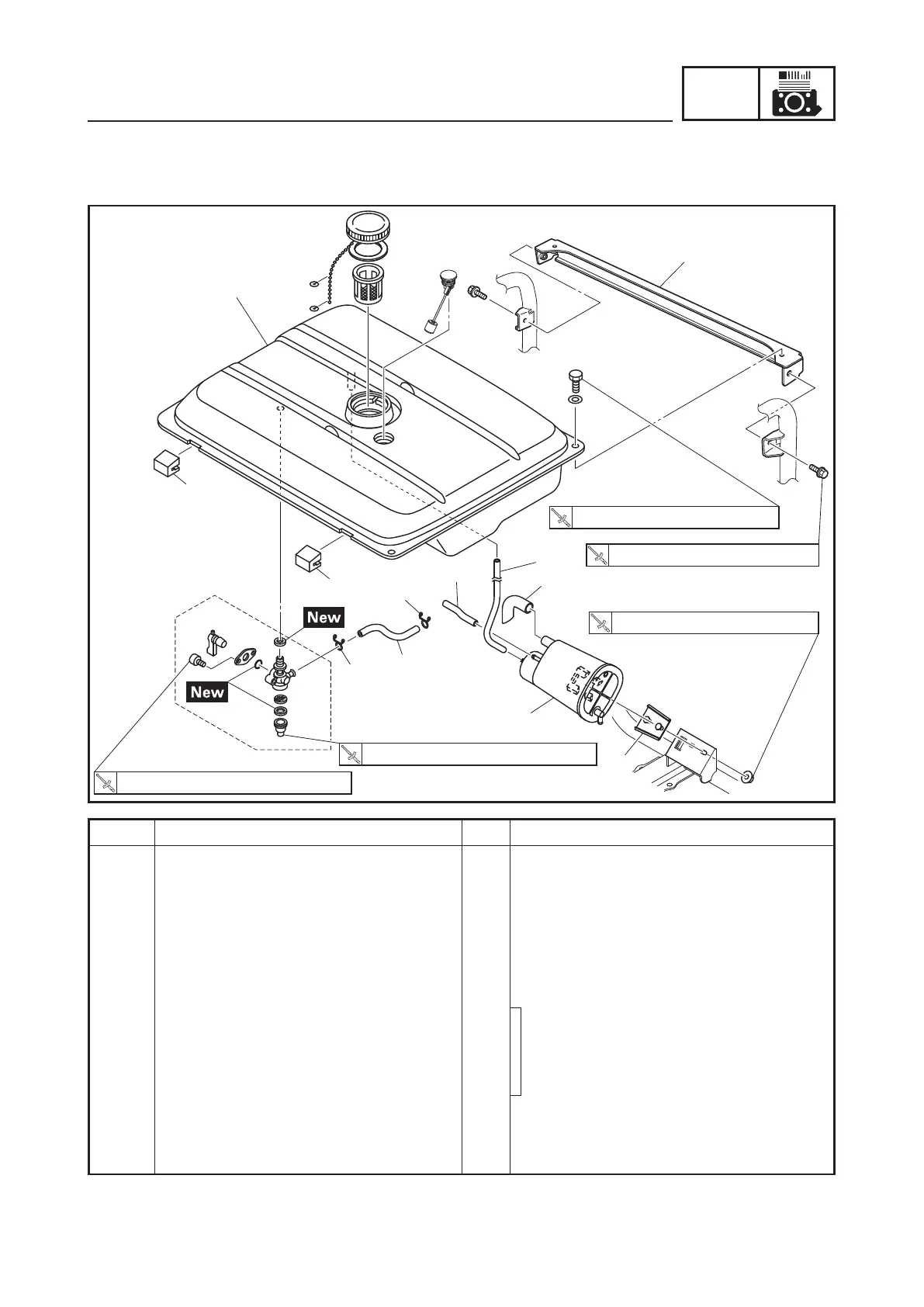

FUEL TANK, CANISTER
2
4
3
6
5
9
2
10
8
1
7
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
0.8 Nm (0.08 m á kgf, 0.58 ft á lbf)
1.3 Nm (0.13 m á kgf, 0.94 ft á lbf)
16 Nm (1.6 m á kgf, 12 ft á lbf)
10
Order Job/Parts to remove Q’ty Remarks
Removing the fuel tank, canister Remove the parts in the order listed.
Carrier frame Refer to “HANDLE AND WHEELS (FOR
EF7200DE CAN)” on 3-23.
Control box Refer to “CONTROL BOX” on 3-1.
1 Fuel hose 1 Turn the fuel cock lever to the “OFF”
position.
2 Clip 2
3 Pipe 2 1
For EF7200DE CAN
4 Pipe 3 1
5 Canister 1
6 Pipe 4 1
7 Canister bracket 1
8 Member 1
9 Fuel tank 1
10 Locating damper 1 2
FUEL TANK, CANISTER
