Yamaha EF7000 - EF7200 DE (Except for CAN)

5-14
ELEC

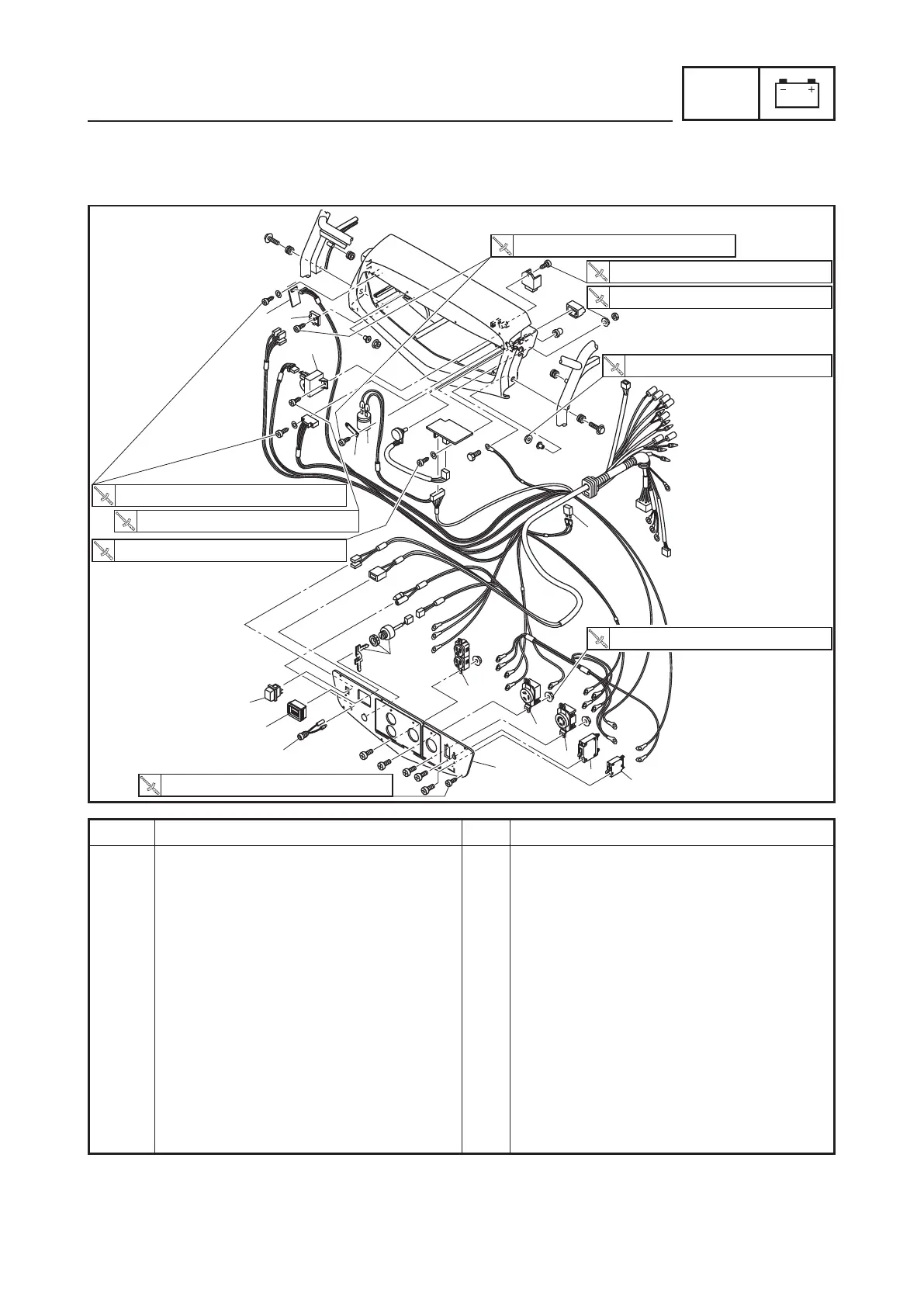

CONTROL PANEL
10
11
9
13
12
8
2
3
4
5
1
6
6
7
7
6
7 Nm (0.7 m á kgf, 5.1 ft á lbf)
0.4 Nm (0.04 m á kgf, 0.29 ft á lbf)
0.4 Nm (0.04 m á kgf, 0.29 ft á lbf)
1.4 Nm (0.14 m á kgf, 1.0 ft á lbf)
1.3 Nm (0.13 m á kgf, 0.94 ft á lbf)
1.8 Nm (0.18 m á kgf, 1.3 ft á lbf)
1.8 Nm (0.18 m á kgf, 1.3 ft á lbf)
1.8 Nm (0.18 m á kgf, 1.3 ft á lbf)
1.7 Nm (0.17 m á kgf, 1.2 ft á lbf)
Order Job/Parts to remove Q’ty Remarks
Removing the control panel Remove the parts in the order listed.
1 Panel cover 1
2 Economy control switch 1
3 Voltage/hour meter 1
4 Oil warning light 1
5 Engine switch 1
6 AC receptacle 3
7 AC switch (N.F.B.) 2 Lever switch
8 Fuse 1
9 Oil warning unit 1
10 Rectifier 1
11 Economy control unit 1
12 Condenser holder 1
13 Condenser 1
EF7200DE (Except for CAN)
