Yamaha EF7000 - Removing the Stator Assembly and Rotor Assembly

3-15
ENG
GENERATOR

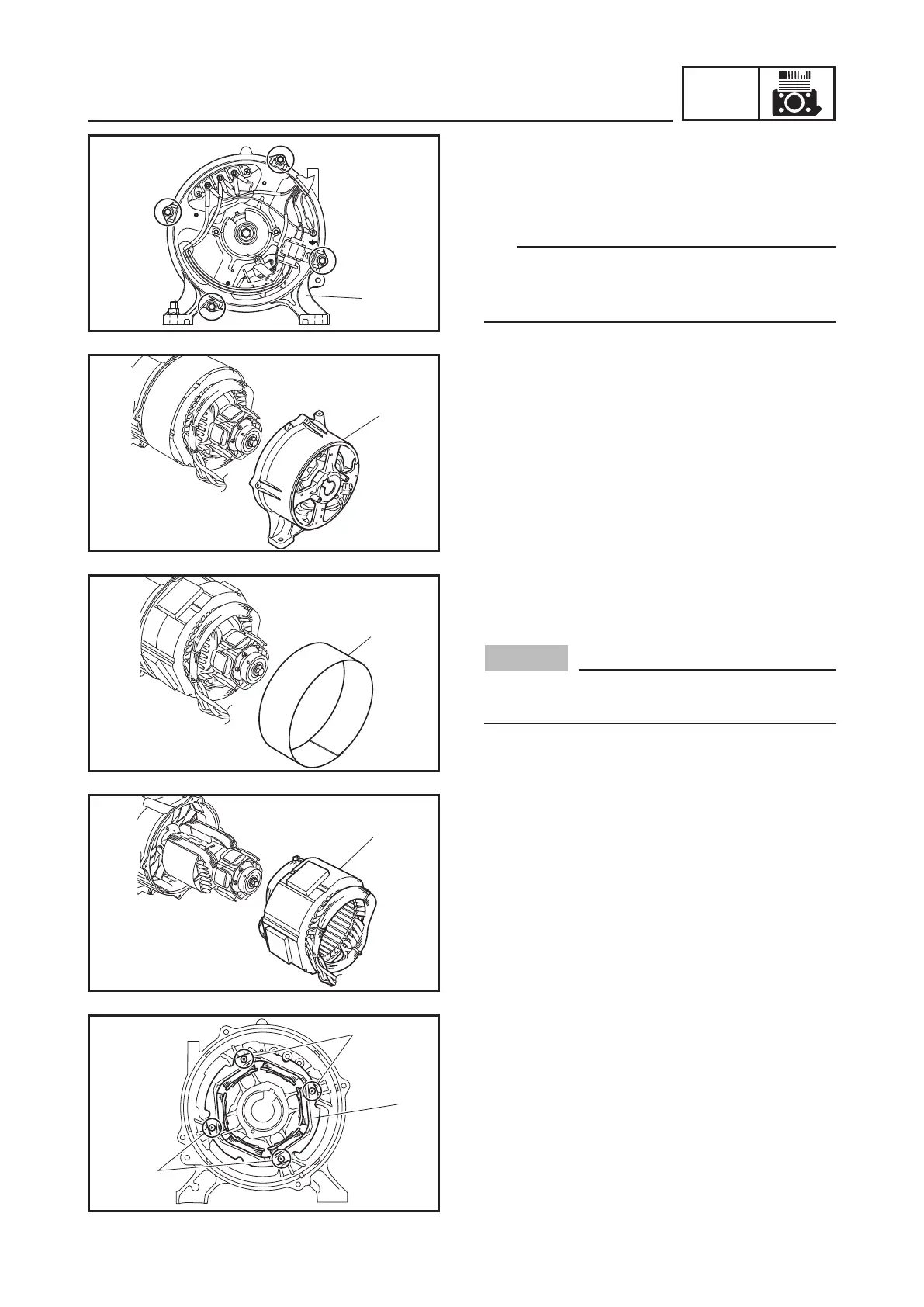

REMOVING THE STATOR ASSEMBLY AND
ROTOR ASSEMBLY
1. Remove:
9 Rear frame 1
TIP
To remove the rear frame 1, strike it with a
rubber hammer, since the bearing may be
stuck in the frame.
2. Remove:
9 Stator cover 1
9 Stator assembly 2
NOTICE
Do not drop or damage the stator assem-
bly 2.
1
1
1
2
1
2
1
3. Remove:
9 Exciter field coil screws 1
9 Exciter field coil 2
