Yamaha EF7000 - Back Side and Left Side View

7-22
SPEC

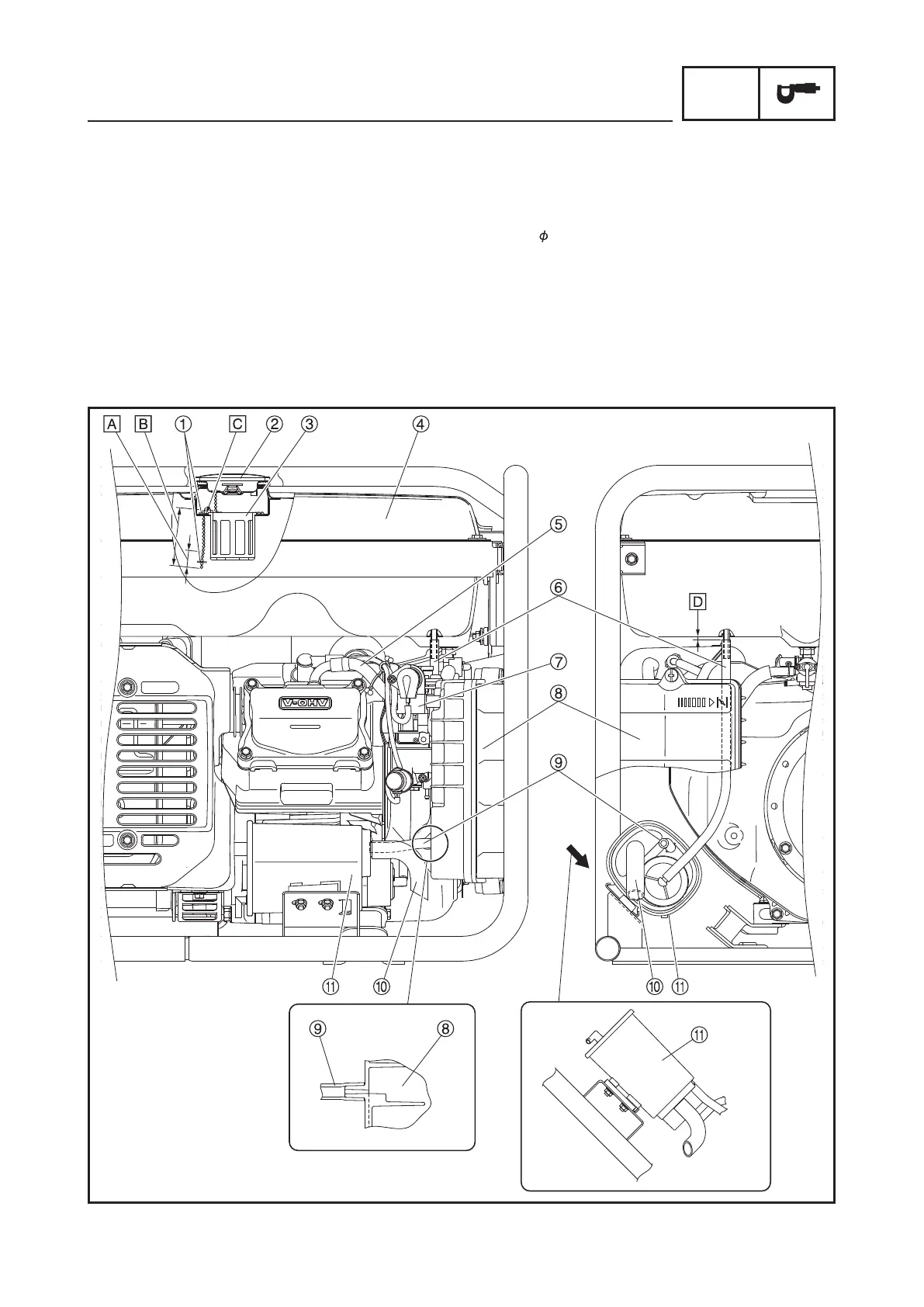

WIRE ROUTING DIAGRAM
1 Washers
2 Fuel tank cap
3 Fuel tank filter
4 Fuel tank
5 Breather hose
6 Pipe 2 (fuel tank to canister)
7 Carburetor
8 Air filter
9 Pipe 3 (canister to air filter
case)
0 Pipe 4
q Canister
A
Install the washer within the
5th ball of the chain.
B
Install the washer within the
20th ball of the chain.
C
Pass the chain through a
5
hole in the fuel tank.
D
5 mm or less
BACK SIDE AND LEFT SIDE VIEW (For EF7200DE CAN)
