Yamaha EF7000 - Installing the Muffler

3-11
ENG
MUFFLER
1
5
2
4
3
5

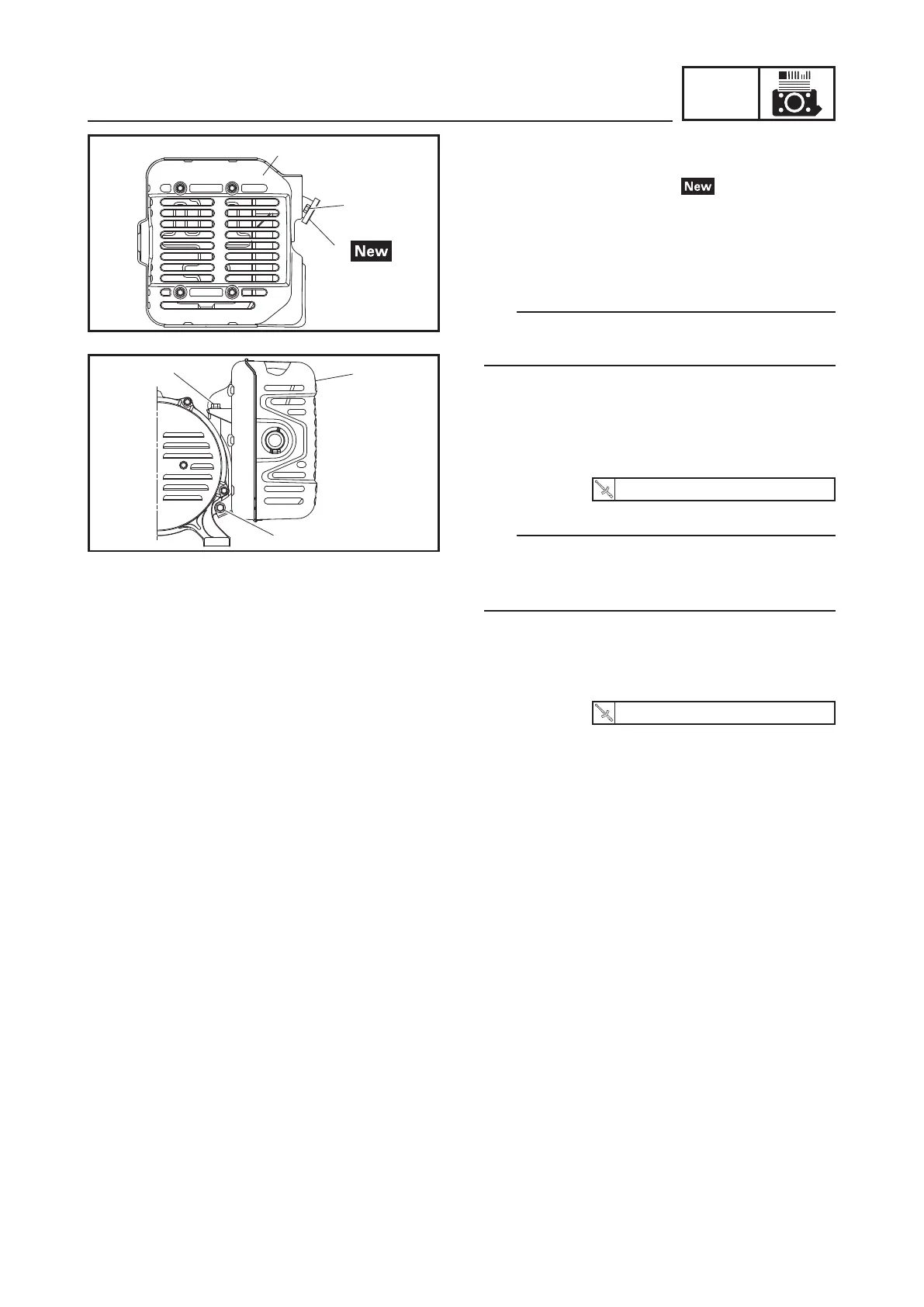

INSTALLING THE MUFFLER
1. Install:
9 Exhaust gasket 1
9 Muffler assembly
9 Exhaust nuts 2
9 Muffler bolt 3
9 Muffler bolt 4
TIP
Temporarily tighten the nuts 2, and bolts 3,
4 until just comes in contact with the surface.
2. Tighten:
9 Exhaust nuts 2
9 Muffler bolt 3
9 Muffler bolt 4
16 Nm (1.6 m · kgf, 12 ft · lbf)
TIP
Tighten the nuts and bolts to the specified
torque in order of exhaust nuts 2, muffler bolt
3 and muffler bolt 4.
3. Install:
9 Muffler damper
9 Muffler cover 5
12 Nm (1.2 m · kgf, 8.7 ft · lbf)
