5-41
ELEC
CHARGING SYSTEM (EF7000E/EF7200E/EF7200DE)
3. Fuse
9 Remove the fuse.
9 Connect the pocket tester (W × 1) to the
fuse.
9 Check the fuse for continuity.
(Refer to “FUSE (EF7000E/EF7200E/
EF7200DE)” on 5-26)
Replace the fuse.
NO CONTINUITY
CONTINUITY

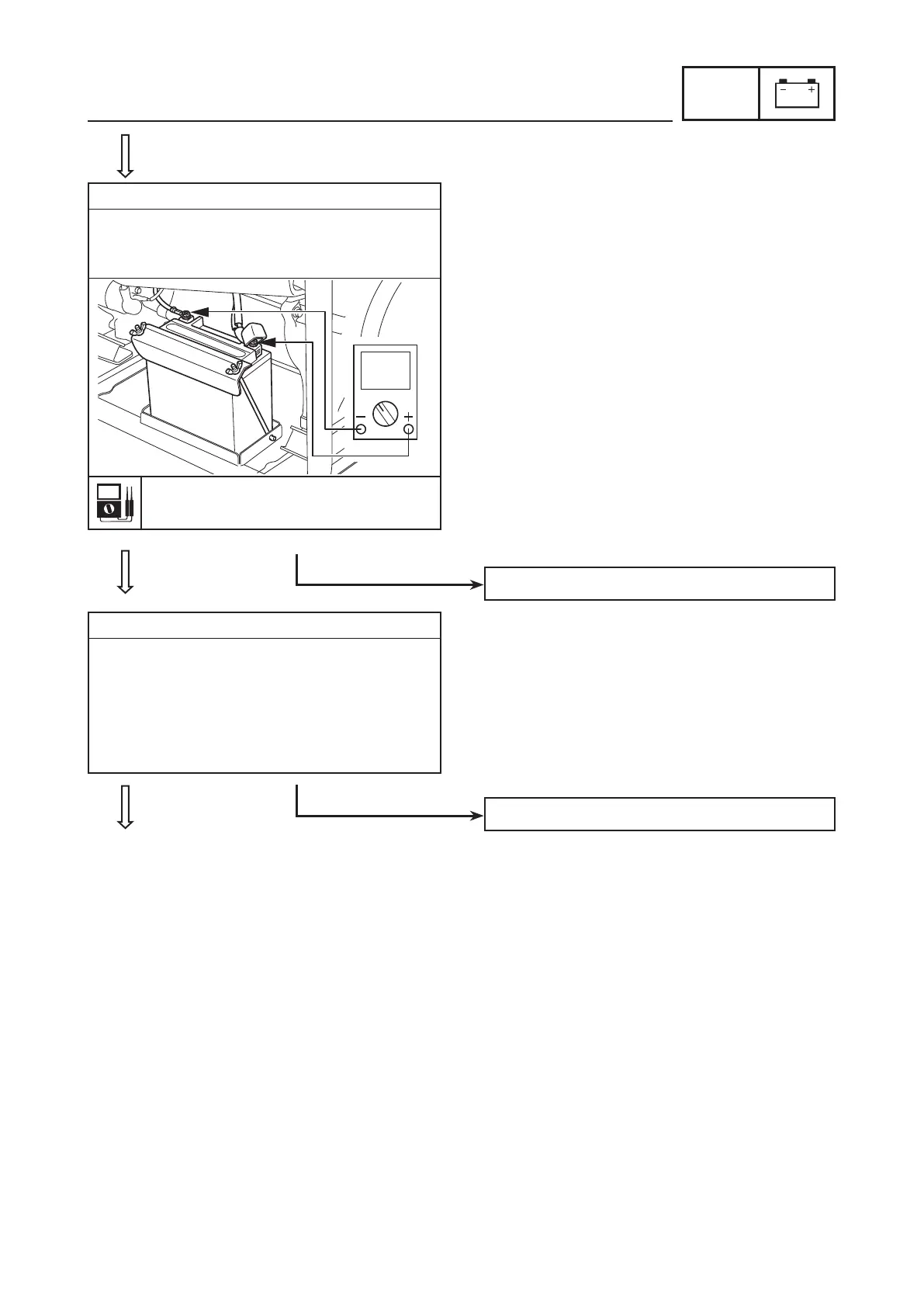

2. Charging voltage
9 Start the engine.
9 Accelerate to 3600 r/min.
9 Measure the charging voltage.
DC20V
Battery charging voltage:
More than 14.0 V
MORE THAN
14.0 V
Properly connect the charging system.
MEETS
SPECIFICATION
To Next Page
