7-17
SPEC

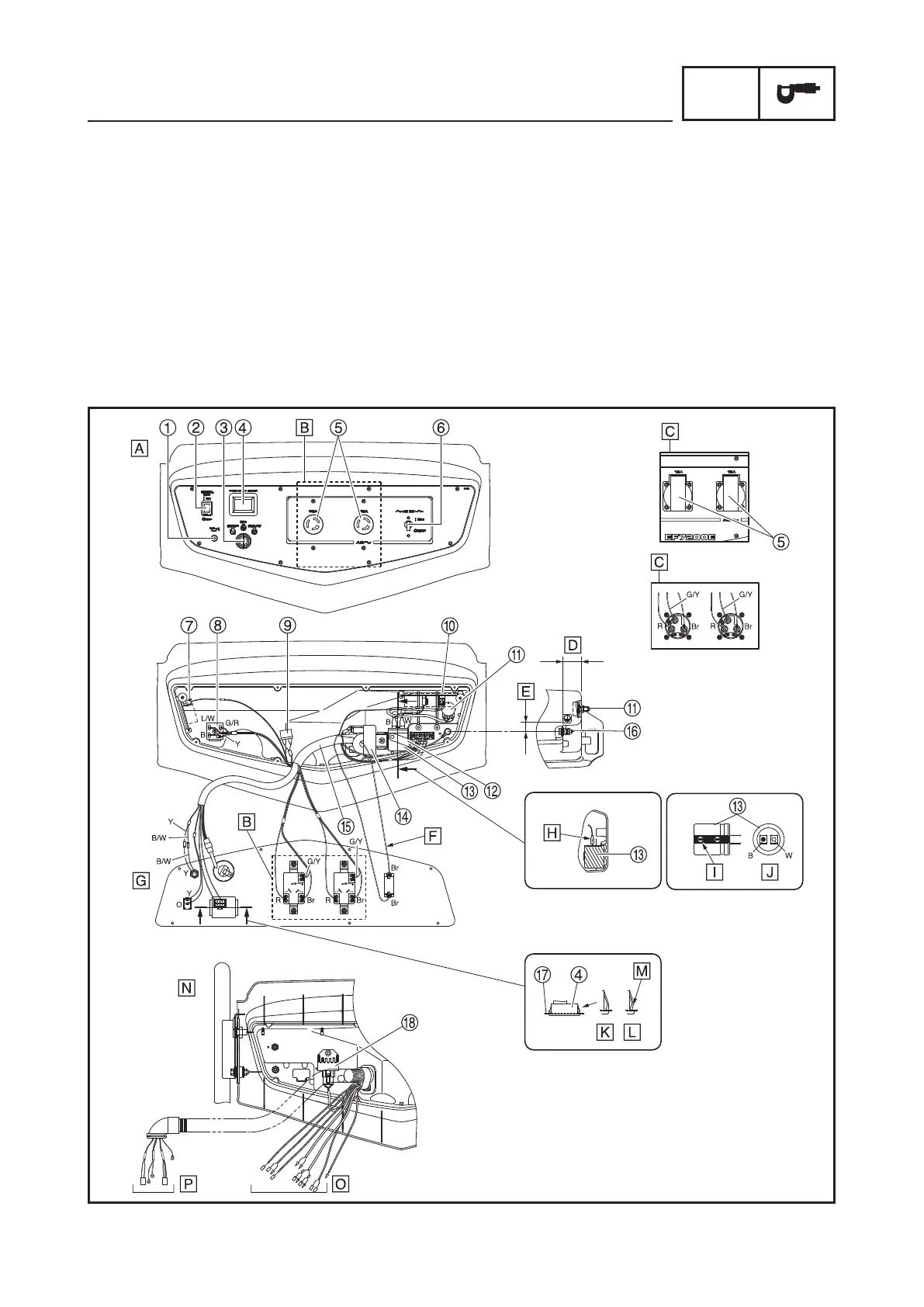

WIRE ROUTING DIAGRAM
M
Make sure that the pawls are
properly engaged on both
sides of the panel cover.
N
Behind the control box
O
To engine
P
To generator
Color code
B .........Black
Br ........Brown
O .........Orange
R .........Red
W ........White
Y .........Yellow
B/W .....Black/White
G/R .....Green/Red
G/Y .....Green/Yellow
L/W .....Blue/White
