6D81G11
5-52
1
2
3
4
5
6
7
8
9
5. Connect the flushing hose, cooling water
pilot hose, and canister hose.
6. Connect the fuel hose and shift position
switch coupler.
7. Connect the PTT motor leads and PTT
switch coupler, and then install the junc-
tion box cover.
8. Connect the trim sensor coupler and bat-
tery leads.
9. Connect the shift cable and throttle
cable, and then adjust their lengths.
For adjustment procedures, see Chapter
3, “Adjusting the throttle link and throttle
cable” and “Checking the gear shift oper-
ation.”
10. Install all parts removed during disas-
sembly.

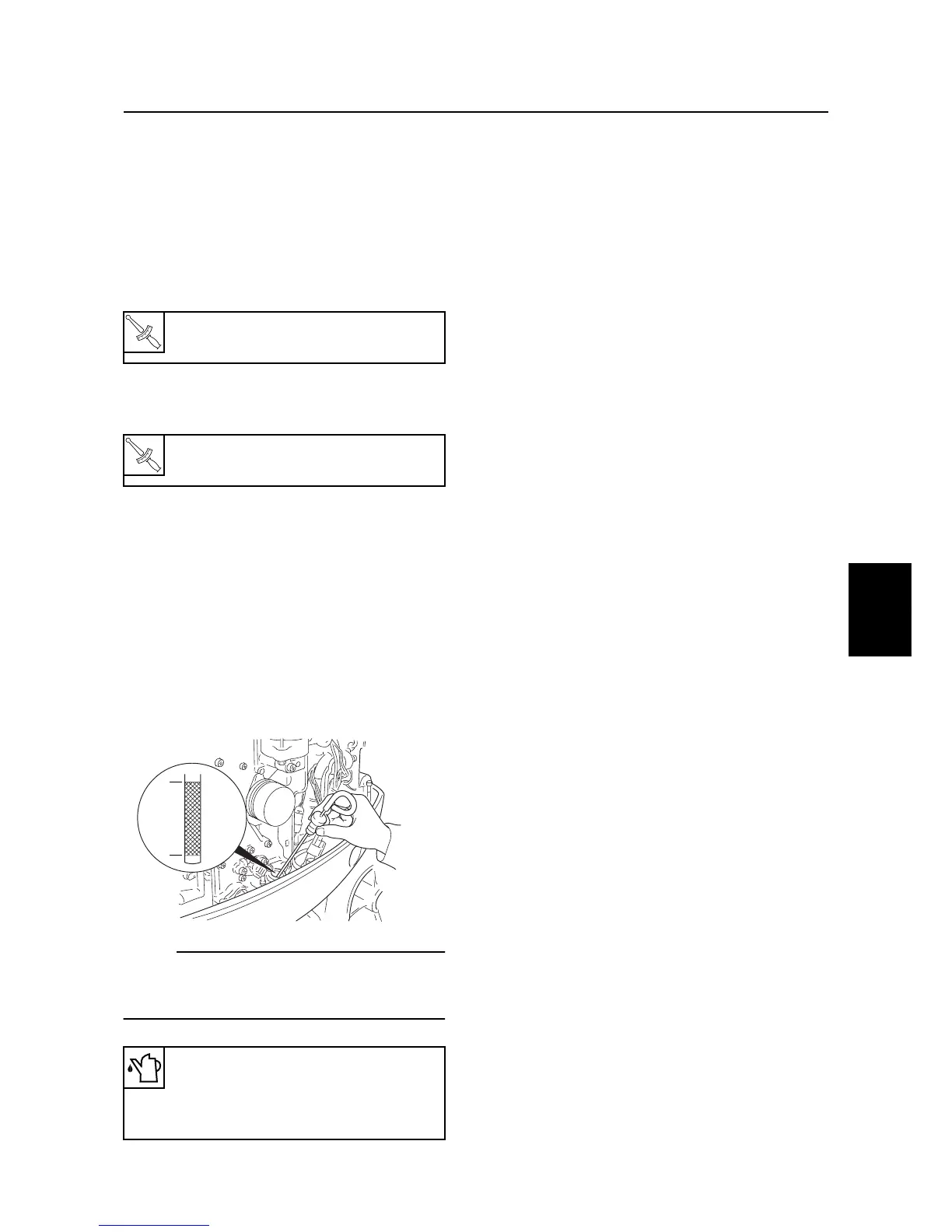

11. Check the engine oil level.
NOTE:
If the engine oil is below the minimum level
mark
b
, add sufficient oil until the level is
between
a
and
b
.
T
R
.
.
PTT motor lead bolt:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
T
R
.
.
Positive battery lead nut:
9 N·m (0.9 kgf·m, 6.6 ft·lb)
Recommended engine oil:
4-stroke motor oil
API: SE, SF, SG, SH, or SJ
SAE: 10W-30 or 10W-40
S60C1150
a
b
Cylinder block
To Next Page
