SPEC

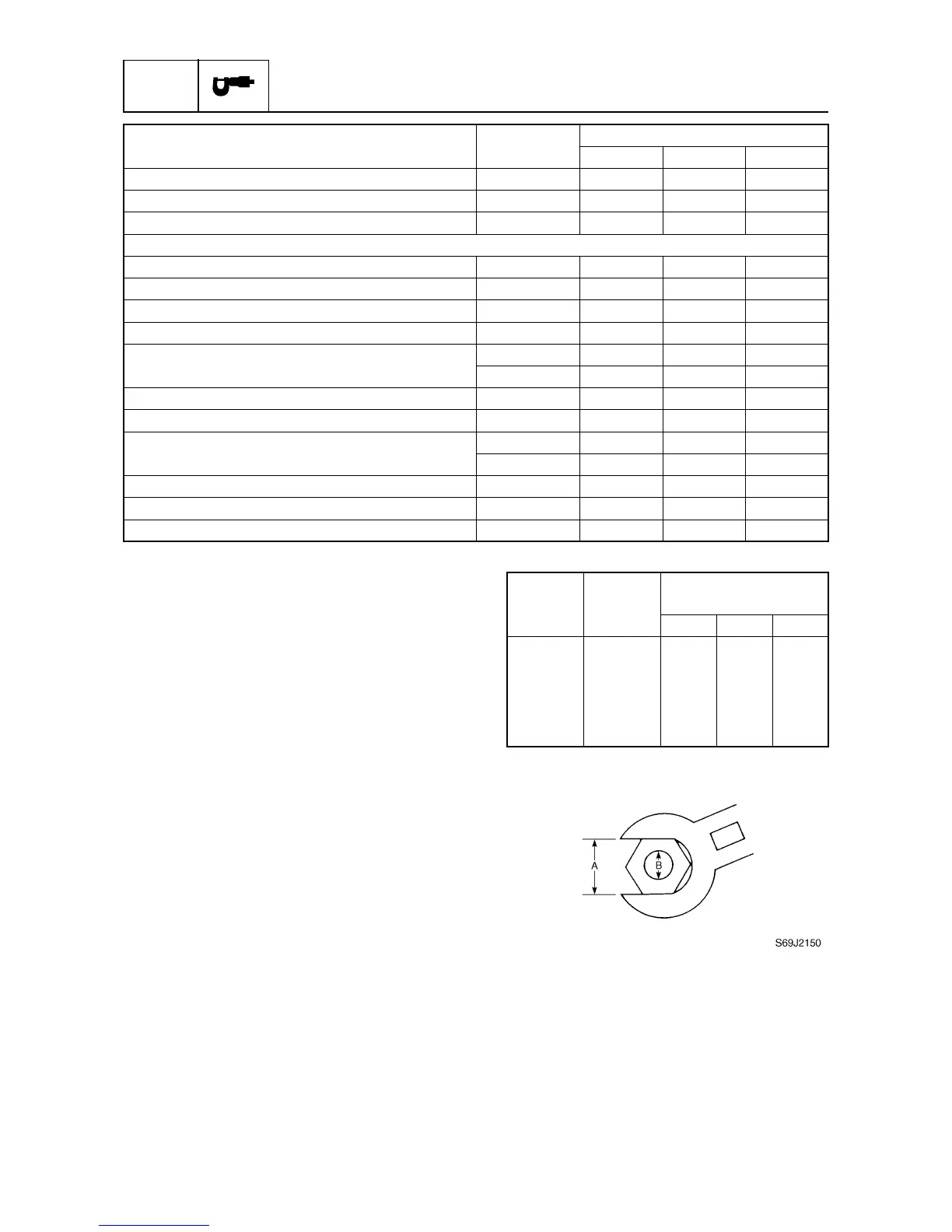

Specifications
2-13
6D81G11
General torques
This chart specifies tightening torques for
standard fasteners with a standard ISO
thread pitch. Tightening torque specifications
for special components or assemblies are
provided in applicable sections of this man-
ual. To avoid warpage, tighten multi-fastener
assemblies in a crisscross fashion and pro-
gressive stages until the specified torque is
reached. Unless otherwise specified, torque
specifications require clean, dry threads.
Components should be at room temperature.
Steering arm stud bolt M10 20 2.0 14.8
Self-locking nut — 15 1.5 11.1
Trim sensor cam screw M6 2 0.2 1.5
Power trim and tilt unit
Reservoir cap — 70.75.2
PTT motor bolt M6 4 0.4 3.0
Gear pump bolt M5 5 0.5 3.7
Gear pump housing bolt M5 5 0.5 3.7
Relief valve cap bolt
M4 4 0.4 3.0
M5 5 0.5 3.7
Lever bolt M3 2 0.2 1.5
Manual valve — 20.21.5
Gear pump bracket bolt
M3 2 0.2 1.5
M5 4 0.4 3.0
Trim cylinder end screw — 90 9.0 66.4
Tilt cylinder end screw — 80 8.0 59.0
Tilt piston bolt M12 85 8.5 62.7
Part to be tightened Thread size
Tightening torques
N·mkgf·mft·lb
Nut (A) Bolt (B)
General torque
specifications
N·mkgf·mft·lb
8 mm M5 5 0.5 3.6
10 mm M6 8 0.8 5.8
12 mm M8 18 1.8 13
14 mm M10 36 3.6 25
17 mm M12 43 4.3 31

Yamaha F90D Specifications

General

Fuel Induction System	Electronic Fuel Injection (EFI)
Starting System	Electric
Alternator Output at W.O.T.	35 Amp
Lubrication System	Wet Sump
Full Throttle RPM Range	5000 - 6000 rpm
Steering	Remote
Trim Method	Power Trim and Tilt
Exhaust	Through Propeller
Engine Type	4-Stroke
Displacement	1832 cc
Max Output	90 hp
Recommended Fuel	Regular Unleaded (Minimum Pump Octane 87)
Recommended Engine Oil	Yamalube 4M
Ignition System	TCI
Cooling System	Water Cooled
Shaft Length	L (20"), X (25")
