Yamaha F90D - Electrical Components; Port View

ELEC
Electrical systems
– +
8-3
6D81G11
Electrical components
8

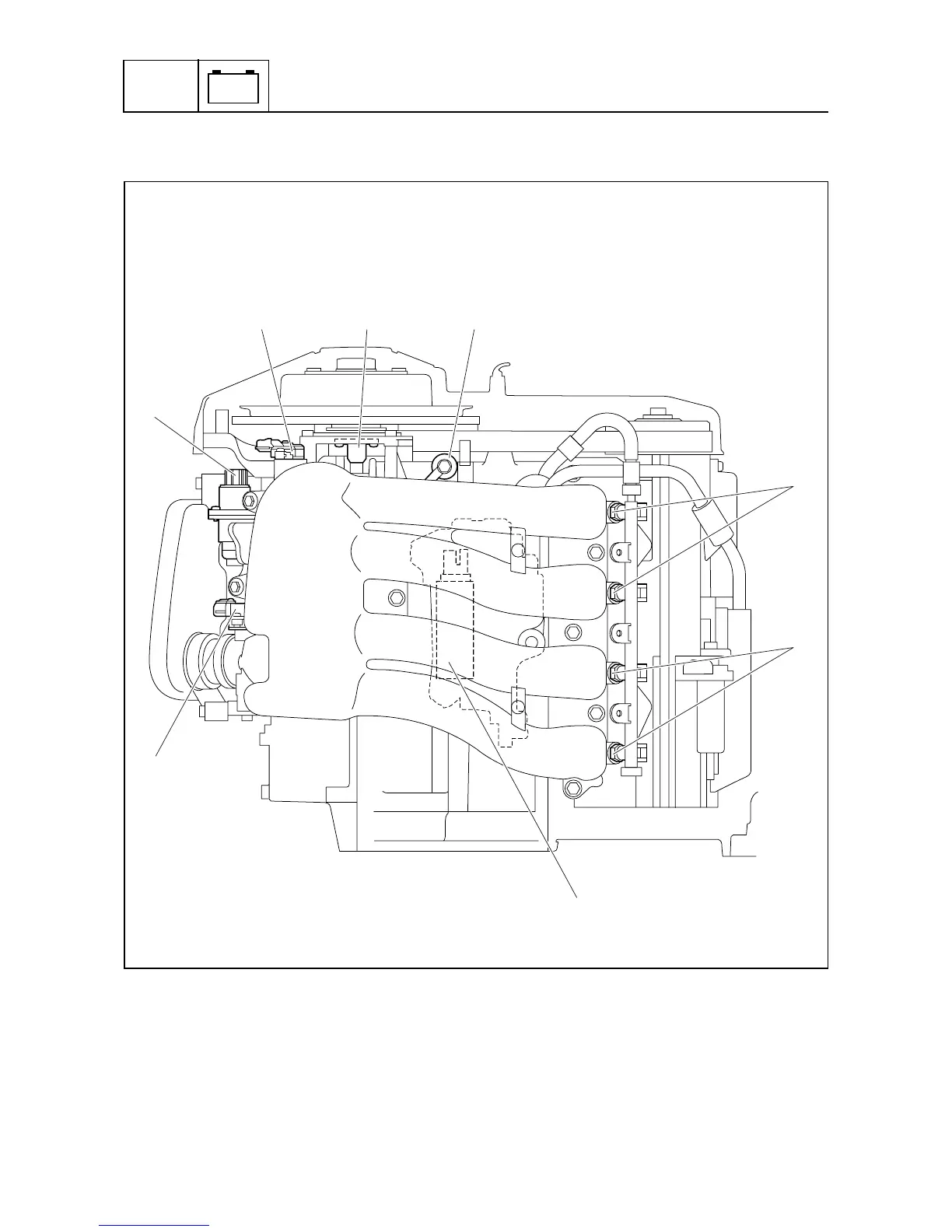

Port view
1
Idle speed control
2
Sensor assembly
(intake air temperature and intake air
pressure)
3
Pulser coil
4
Oil pressure switch
5
Fuel injector
6
Electric fuel pump
7
Throttle position sensor
S6D88010
1
7
2
6
5
3 4
5
