Yamaha F90D User Manual

6D81G11
7-14
1
2
3
4
5
6
7
8
9
Checking the oil strainer
1. Check the oil strainer for dirt or residue.
Clean if necessary.

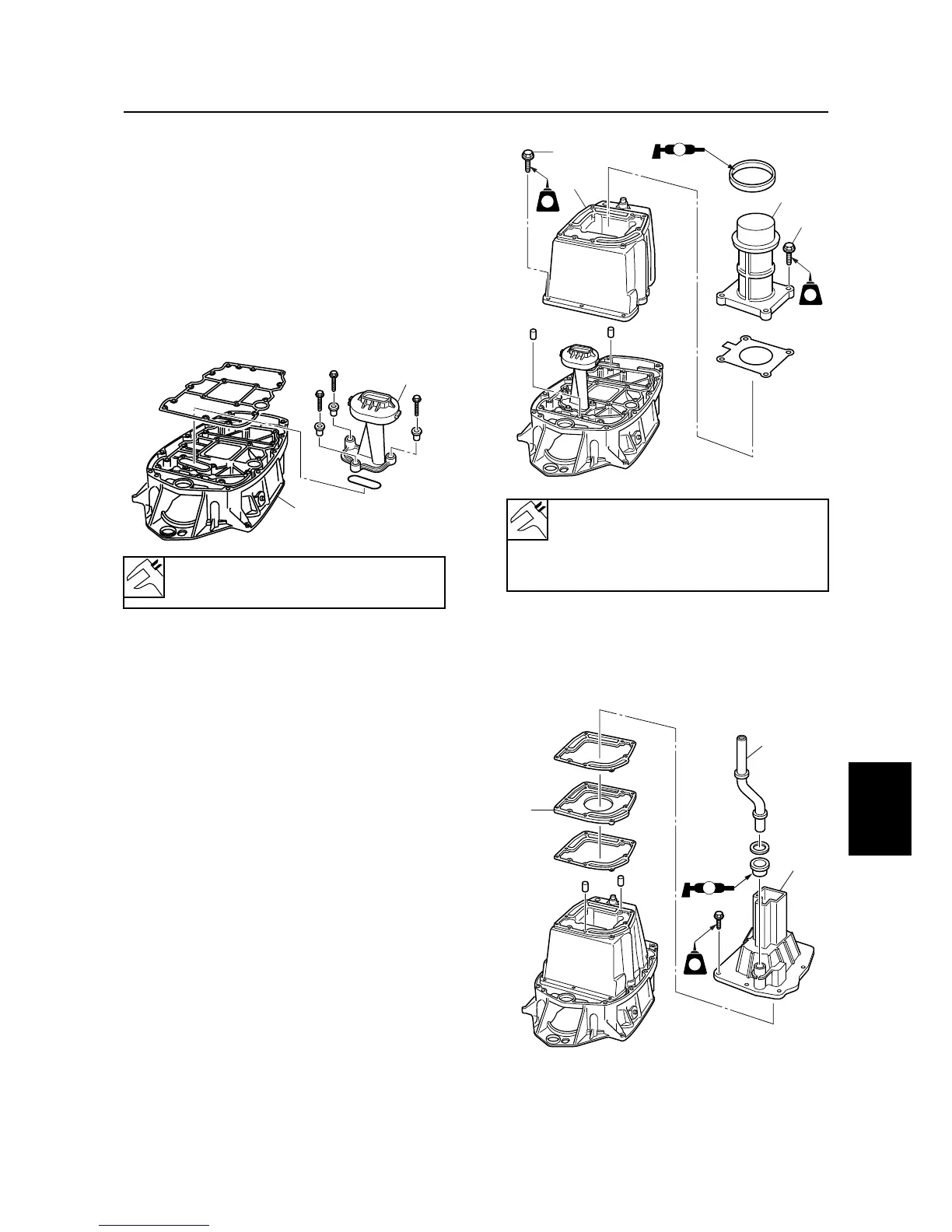

Assembling the oil pan
1. Install a new gasket onto the exhaust
guide
1
.
2. Install a new gasket and the oil strainer
2
onto the exhaust guide, and then
tighten the bolts to the specified torque.
3. Install the dowels and oil pan
3
onto the
exhaust guide, and then tighten the oil
pan bolts
4
finger tight.
4. Install a new gasket and the exhaust
manifold
5
onto the oil pan, and then
tighten the exhaust manifold bolts
6
to
the specified torque.
5. Tighten the oil pan bolts
4
to the speci-
fied torque.
6. Tighten the exhaust manifold bolts
6
again to the specified torque.
7. Install new gaskets, the plate
7
, and the
muffler
8
onto the oil pan.
8. Install the water pipe
9
.
Oil strainer bolt:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
S6D87150
2
1
Oil pan bolt
4
:
11 N·m (1.1 kgf·m, 8.1 ft·lb)
Exhaust manifold bolt
6
:
11 N·m (1.1 kgf·m, 8.1 ft·lb)
S6D87160
AA
4
3
5
6
LT
572
LT
LT
572
LT
S6D87170
LT
572
LT
572
AA
8
9
7
Upper case
