Yamaha F90D User Manual

BRKT
Bracket unit
7-21
6D81G11

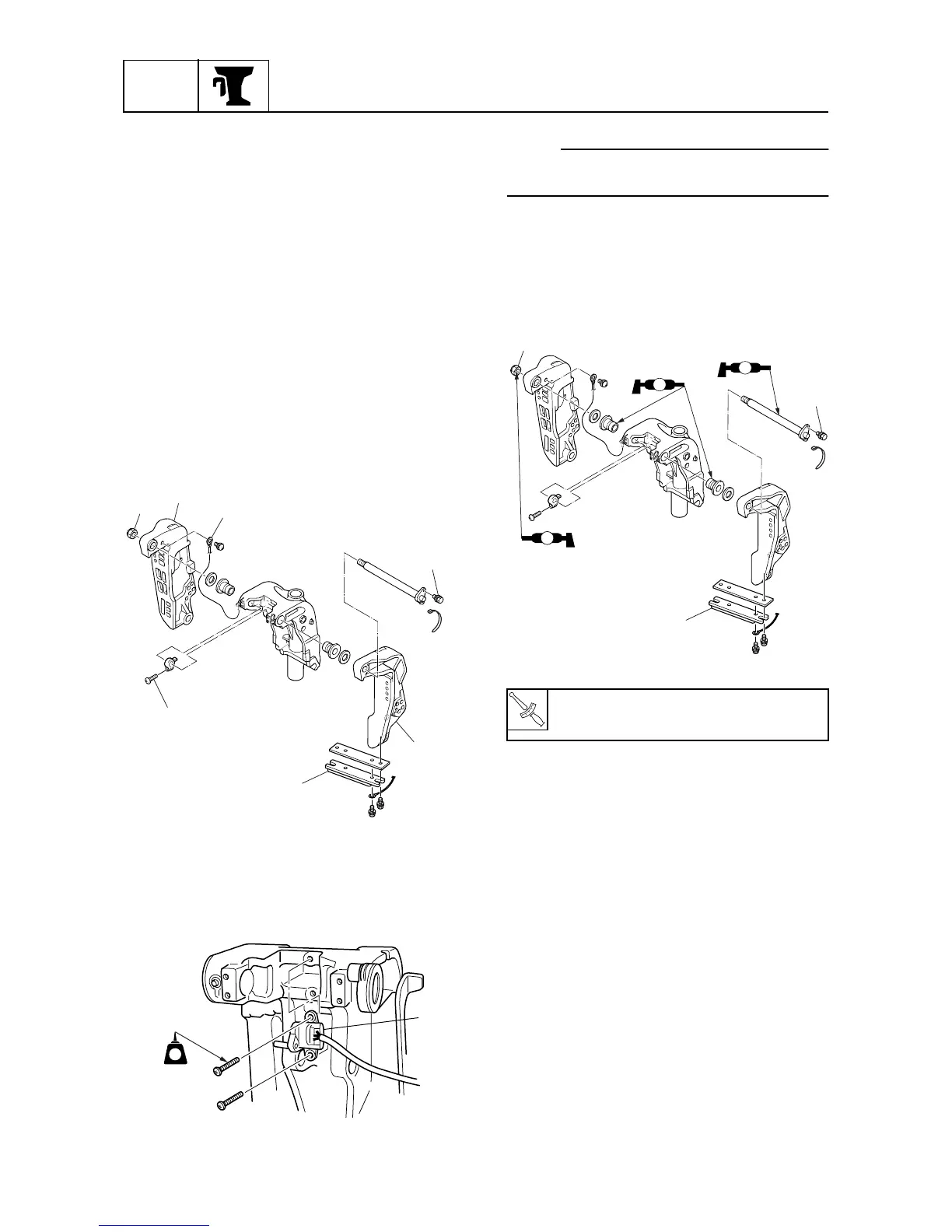

Removing the clamp brackets
1. Remove the power trim and tilt unit. For
removal procedure, see “Removing the
power trim and tilt unit.”
2. Remove the anode
1
.
3. Disconnect the ground lead
2
.
4. Remove the trim sensor cam screw
3
.
5. Loosen the self-locking nut
4
and the
bolt
5
, and then remove clamp brackets
6
and
7
.
6. Remove the trim sensor.
7. Remove the tilt stop lever.
Installing the clamp brackets
1. Install the trim sensor
1
onto the swivel
bracket.
NOTE:
Adjust the trim sensor after installing the
power trim and tilt unit.
2. Assemble the clamp brackets and the
swivel bracket by installing the anode
2
,
bolt
3
, and self-locking nut
4
, then tight-
ening the nut to the specified torque.
3. Install the power trim and tilt unit. For
installation procedure, see “Installing the
power trim and tilt unit.”
Adjusting the trim sensor
1. Fully retract the power trim and tilt unit.
2. Loosen the trim sensor cam screw
1
.
3. Adjust the trim sensor cam
2
where the
specified trim sensor setting resistance is
obtained.
S6D87510
4
6
2
3
1
7
5
S60C7160
LT
271
1
T
R
.
.
Self-locking nut
4
:
15 N·m (1.5 kgf·m, 11.1 ft·lb)
S6D87520
4
2
3
AA
AA
AA
