2
3
4
5
6
7
8
9

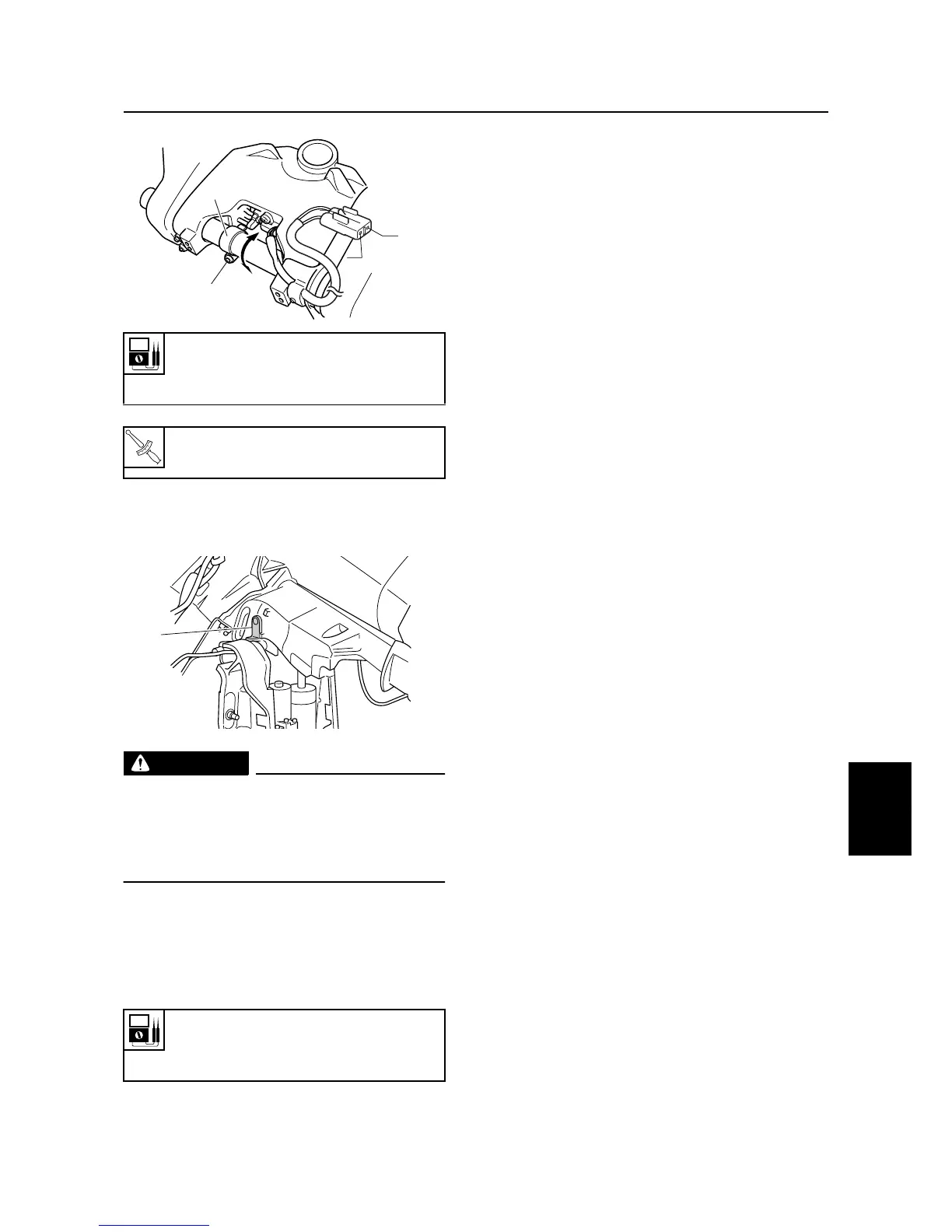

4. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
3
.
WARNING
After tilting up the outboard motor, be
sure to support it with the tilt stop lever.
Otherwise, the outboard motor could sud-
denly lower if the power trim and tilt unit
should lose fluid pressure.
5. Check the trim sensor resistance. If the
resistance is out of specification, adjust
the trim sensor cam position and check
the trim sensor.
Trim sensor setting resistance:
Pink (P) – Black (B)
10
±
1
Ω
at 20 °C (68 °F)
T
R
.
.
Trim sensor cam screw
1
:
2 N·m (0.2 kgf·m, 1.5 ft·lb)
Trim sensor resistance:
Pink (P) – Black (B)
238.8–378.8
Ω
at 20 °C (68 °F)
P
B
S63P7250
2
1
S6D87530
3
Clamp brackets and swivel bracket
