Yamaha F90D User Manual

FUEL
Fuel system
4-3
6D81G11

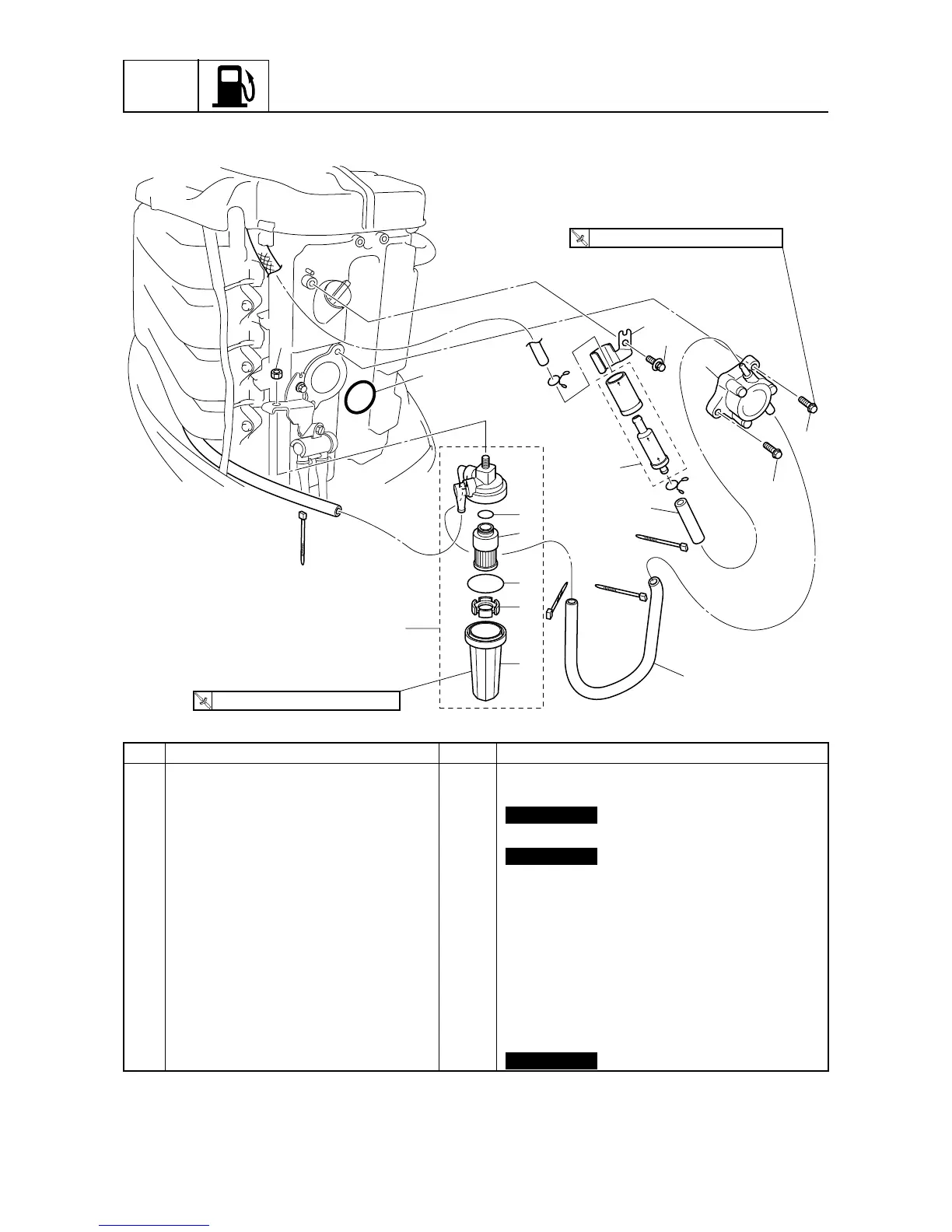

Fuel filter and fuel pump
4
No. Part name Q’ty Remarks
1Nut 1
2 Fuel filter assembly 1
3O-ring 1
Not reusable
4 Fuel filter element 1
5O-ring 1
Not reusable
6Float 1
7Cup 1
8 Fuel hose 1
9 Fuel pump 1
10 Bolt 2 M6
×
30 mm
11 Fuel hose 1
12 Strainer 1
13 Bolt 1 M6
×
12 mm
14 Bracket 1
15 O-ring 1
Not reusable
S6D84020
9
10
10
13
12
11
8
3
4
5
6
7
2
1
14
T
R
.
.
3 N
·
m (0.3 kgf
·
m, 2.2 ft
·
Ib)
T
R
.
.
10 N
·
m (1.0 kgf
·
m, 7.4 ft
·
Ib)
15

Yamaha F90D Specifications

General

Fuel Induction System	Electronic Fuel Injection (EFI)
Starting System	Electric
Alternator Output at W.O.T.	35 Amp
Lubrication System	Wet Sump
Full Throttle RPM Range	5000 - 6000 rpm
Steering	Remote
Trim Method	Power Trim and Tilt
Exhaust	Through Propeller
Engine Type	4-Stroke
Displacement	1832 cc
Max Output	90 hp
Recommended Fuel	Regular Unleaded (Minimum Pump Octane 87)
Recommended Engine Oil	Yamalube 4M
Ignition System	TCI
Cooling System	Water Cooled
Shaft Length	L (20"), X (25")
