Yamaha F90D - Page 49

6D81G11
4-4
1
2
3
4
5
6
7
8
9
4

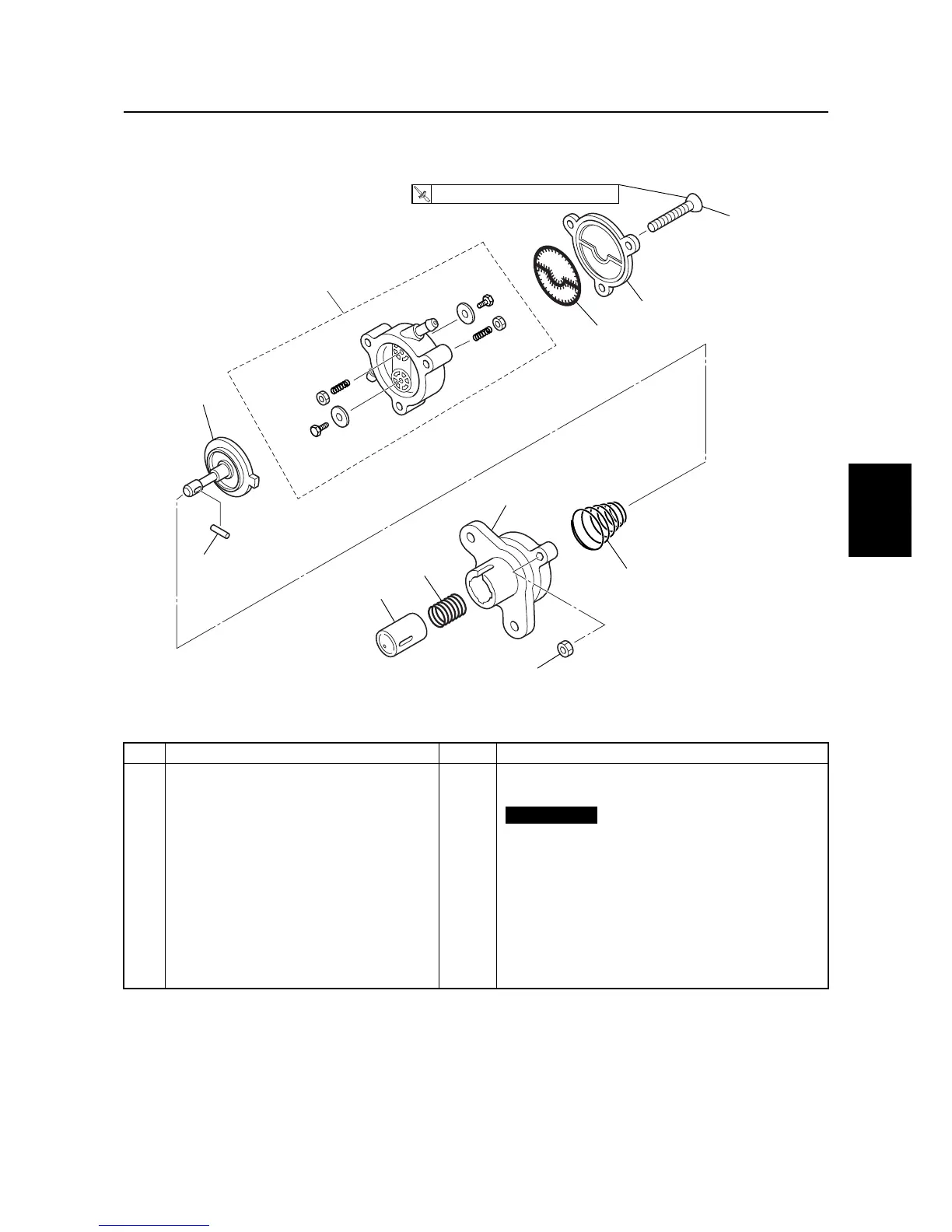

No. Part name Q’ty Remarks
1Screw 3 ø6
×
35 mm
2 Cover 1
3Gasket 1
Not reusable
4 Fuel pump body 2 assembly 1
5 Diaphragm 1
6Pin 1
7Spring 1
8 Fuel pump body 1 1
9Spring 1
10 Plunger 1
11 Nut 3
S6D84030
4
7
8
9
10
1
2
3
5
6
T
R
.
.
4 N
·
m (0.4 kgf
·
m, 3.0 ft
·
Ib)
11
Fuel filter and fuel pump
