Yamaha F90D - Bottom Cowling

BRKT
Bracket unit
7-3
6D81G11

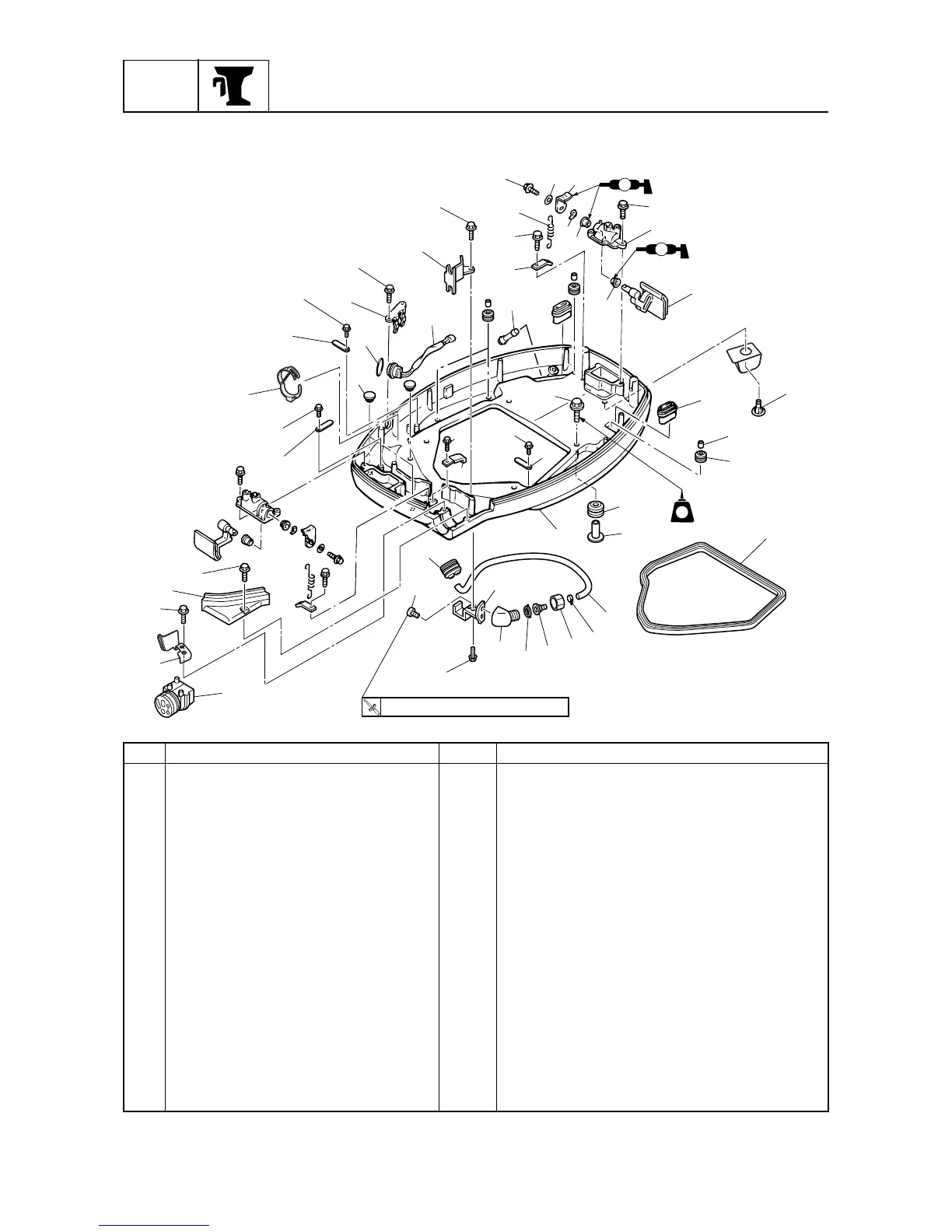

Bottom cowling
7
No. Part name Q’ty Remarks
1Bolt 2 M6
×
16 mm
2 Washer 2
3 Lever 2
4 Washer 2
5 Bushing 4
6Bolt 4 M6
×
30 mm
7Base 2
8 Lever 2
9Spring 2
10 Bolt 2 M6
×
20 mm
11 Hook 2
12 Cooling water outlet 1
13 Canister outlet 1
14 Bolt 4 M8
×
35 mm
15 Grommet 4
16 Collar 5
17 Grommet 5
S6D87020
1
21
22
23
25
28
29
26
25
25
26
30
31
26
42
41
43
44
45
46
24
9
10
11
14
12
27
2
3
4
5
5
6
7
8
13
15
16
17
47
18
19
20
32
33
34
35
36
37
38
39
40
48
AA
AA
LT
572
LT
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
