NOTE:
Before tightening the lower mounting nut, be
sure to connect the ground lead to the lower
mounting bolt.
6. Install the mount covers
8
.
7. Install the oil pump assembly
9
and the
bolts
0
, and then tighten them to the
specified torque.
NOTE:
When installing the oil pump assembly onto
the upper case, pour a small amount of
engine oil into the oil inlet or oil outlet of the
oil pump assembly.
T
R
.
.
Upper mounting nut
6
:
51 N·m (5.1 kgf·m, 37.6 ft·lb)
Lower mounting nut
7
:
51 N·m (5.1 kgf·m, 37.6 ft·lb)
Oil pump bolt
0
:
10 N·m (1.0 kgf·m, 7.4 ft·lb)
Grease nipple:
3 N·m (0.3 kgf·m, 2.2 ft·lb)

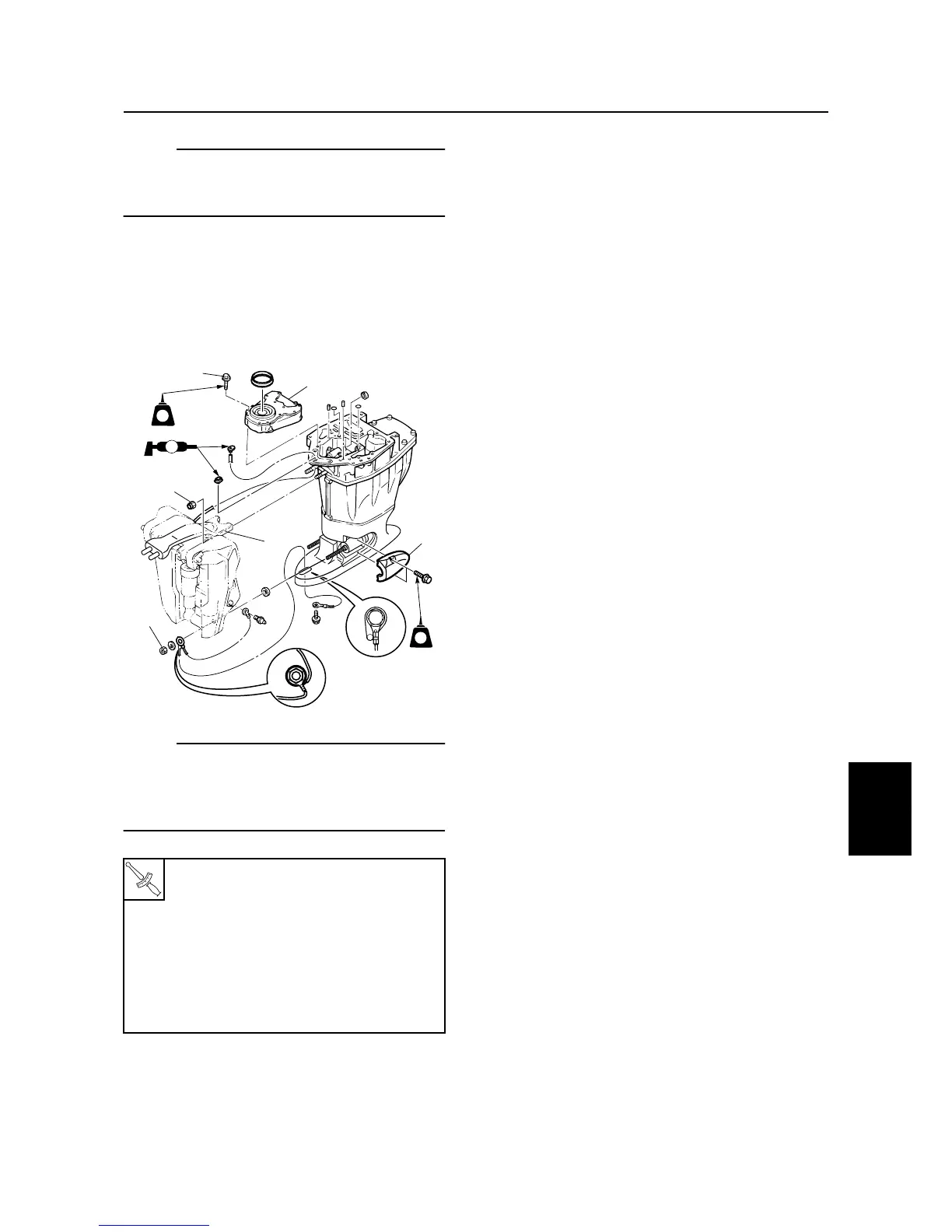

S6D87210
7
8
9
0
6
5
LT
572
LT
LT
LT
572
AA
Upper case
