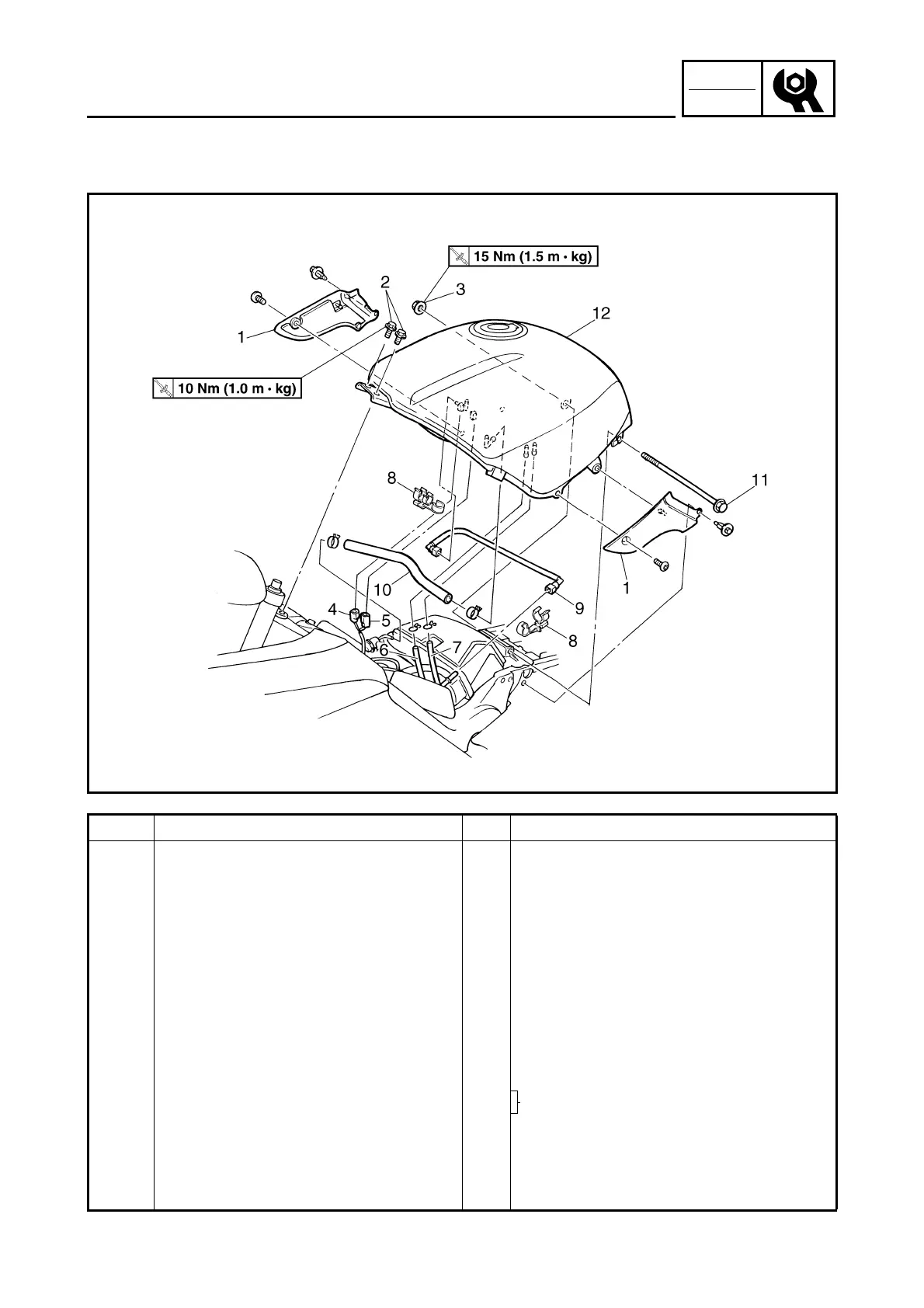

SEATS AND FUEL TANK
EAS00040
FUEL TANK
Order Job/Part Q’ty Remarks
Removing the fuel tank
Remove the parts in the order listed.
Rider seat
Fuel Drain.
1 Fuel tank side panel (left and right) 1/1
2Bolt 2
3Nut 1
4 Fuel sender coupler 1
5 Fuel pump coupler 1
6 Fuel tank overflow hose 1
7 Fuel tank breather hose 1
8 Fuel hose holder 2
9 Fuel hose 1 Refer to “REMOVING THE FUEL TANK”
and “INSTALLING THE FUEL HOSE”.10 Fuel return hose 1
11 Bolt 1
12 Fuel tank 1 Refer to “REMOVING THE FUEL TANK”.
For installation, reverse the removal
procedure.

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
