5 - 116
ENG

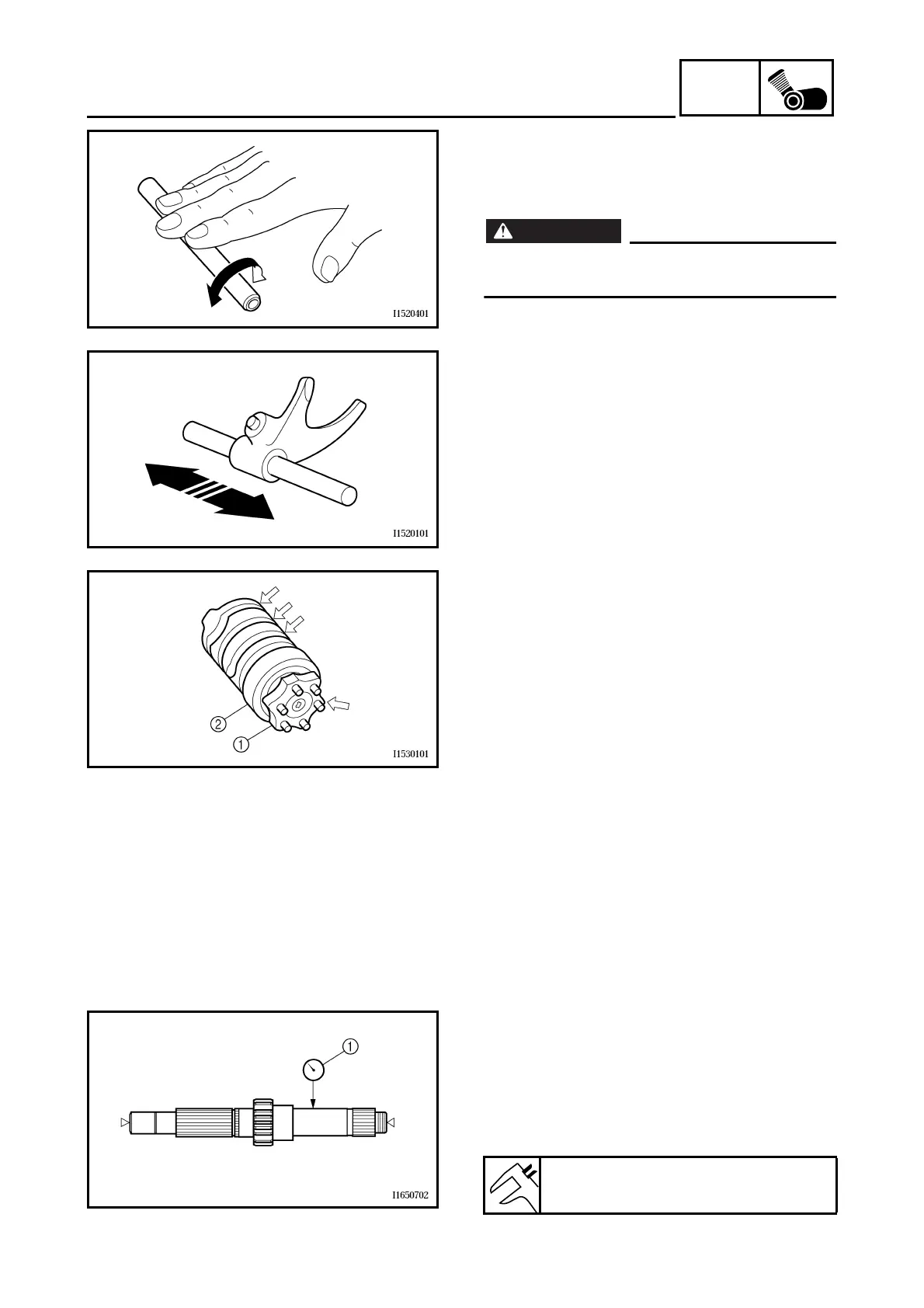

2. Check:
• shift fork guide bar
Roll the shift fork guide bar on a flat surface.
Bends → Replace.
WARNING
@
Do not attempt to straighten a bent shift
fork guide bar.
3. Check:
• shift fork movement
(along the shift fork guide bar)
Rough movement → Replace the shift forks
and shift fork guide bar as a set.
EAS00422
CHECKING THE SHIFT DRUM ASSEMBLY
1. Check:
• shift drum grooves
Damage/scratches/wear → Replace the
shift drum assembly.
• shift drum segment 1
Damage/wear → Replace the shift drum
assembly.
• shift drum bearing 2
Damage/pitting → Replace the shift drum
assembly.
EAS00425
CHECKING THE TRANSMISSION
1. Measure:
• main axle runout
(with a centering device and dial gauge 1)
Out of specification → Replace the main
axle.
Main axle runout limit
0.08 mm
TRANSMISSION

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
