4 - 71
CHAS
HANDLEBARS
EAS00665
HANDLEBARS

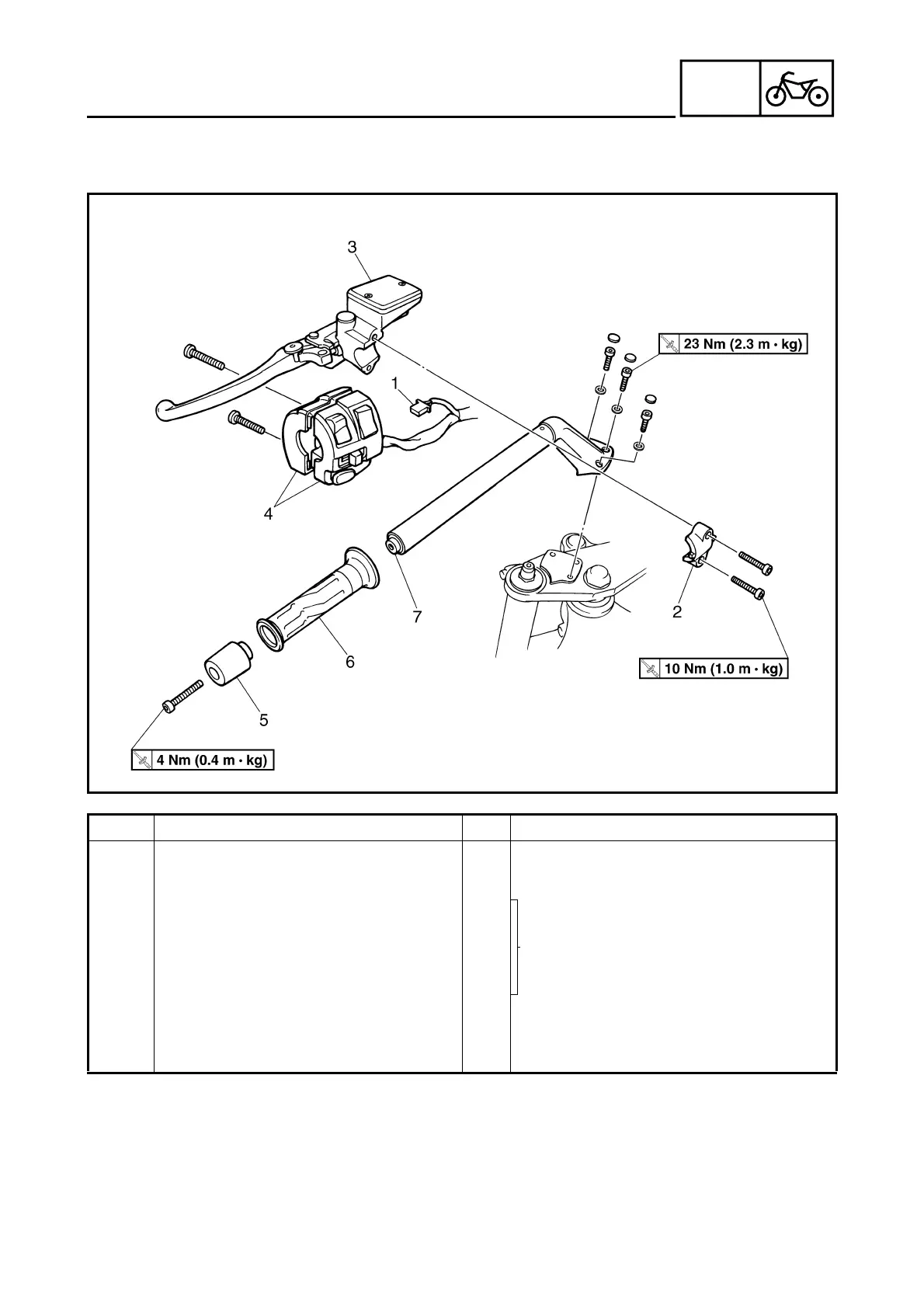

LEFT HANDLEBAR
Order Job/Part Q’ty Remarks
Removing the left handlebar
Remove the parts in the order listed.
1 Clutch switch coupler 1 Disconnect.
2 Clutch master cylinder holder 1
Refer to “REMOVING/INSTALLING THE
HANDLEBARS”.
3 Clutch master cylinder 1
4 Left handlebar switch 1
5 Grip end 1
6 Handlebar grip 1
7 Left handlebar 1
For installation, reverse the removal
procedure.
