5 - 104
ENG
EAS00381

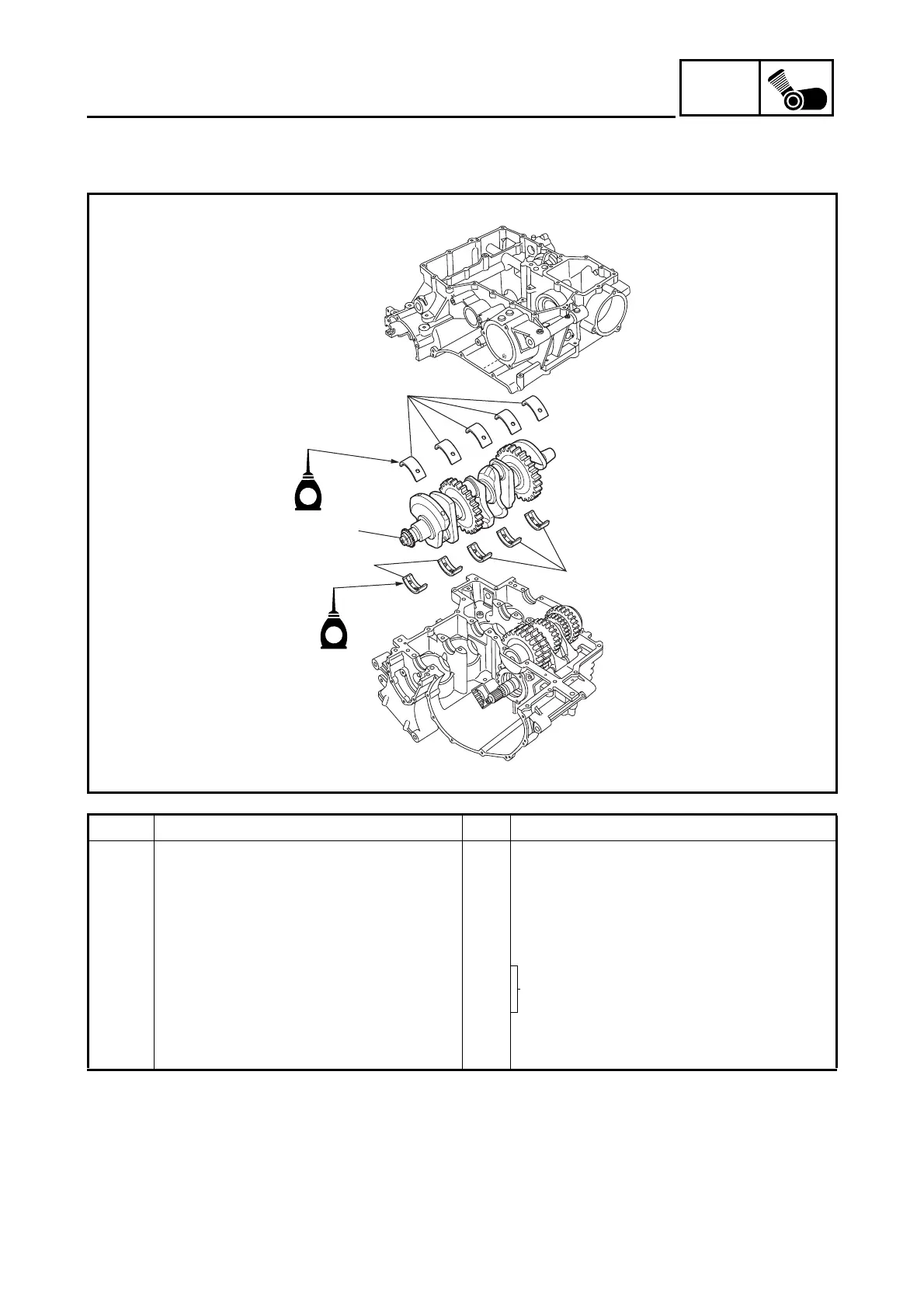

CRANKSHAFT
2
1
3
3
E
E
Order Job/Part Q’ty Remarks
Removing the crankshaft
Remove the parts in the order listed.
Crankcase Separate.
Refer to “CRANKCASE”.
Connecting rod caps Refer to “CONNECTING RODS AND
PISTONS”.
1 Crankshaft 1
Refer to “REMOVING/INSTALLING THE
CRANKSHAFT”.
2 Crankshaft journal lower bearing 5
3 Crankshaft journal upper bearing 5
For installation, reverse the removal
procedure.
