Yamaha FJR1300N 2001 User Manual

4 - 70
CHAS
FRONT FORK
EAS00662

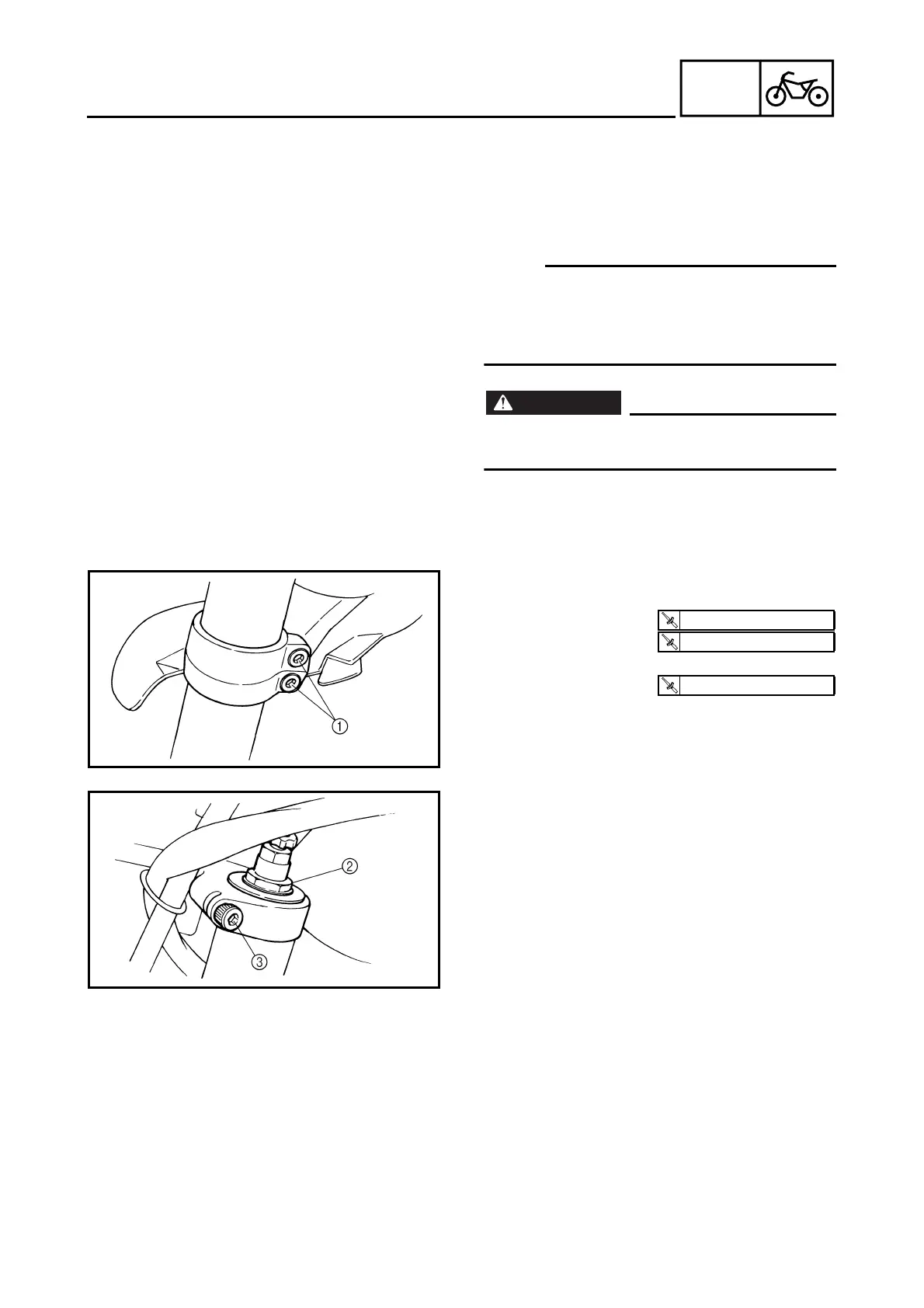

INSTALLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Install:
• front fork leg
NOTE:
• Make sure that the inner tube end is flush
with the top of the upper bracket.
• Temporarily tighten the upper and lower
bracket pinch bolts.
WARNING
@
Make sure the brake hoses are routed prop-
erly.
2. Tighten:
• lower bracket pinch bolts
1
• cap bolt
2
• upper bracket pinch bolt
3
T
R
.
.
23 Nm (2.3 m · kg)
T
R
.
.
25 Nm (2.5 m · kg)
T
R
.
.
34 Nm (3.4 m · kg)
3. Adjust:
• spring preload
• rebound damping
• compression damping
Refer to “ADJUSTING THE FRONT FORK
LEGS” in chapter 3.
