Yamaha FJR1300N 2001 User Manual

5 - 121
ENG
CHECKING THE BALANCER
1. Check:
• front balancer gear
Damage/wear → Replace the front bal-
ancer gear and crankshaft.
• rear balancer gear
Damage/wear → Replace the rear balancer
gear and primary driven gear.

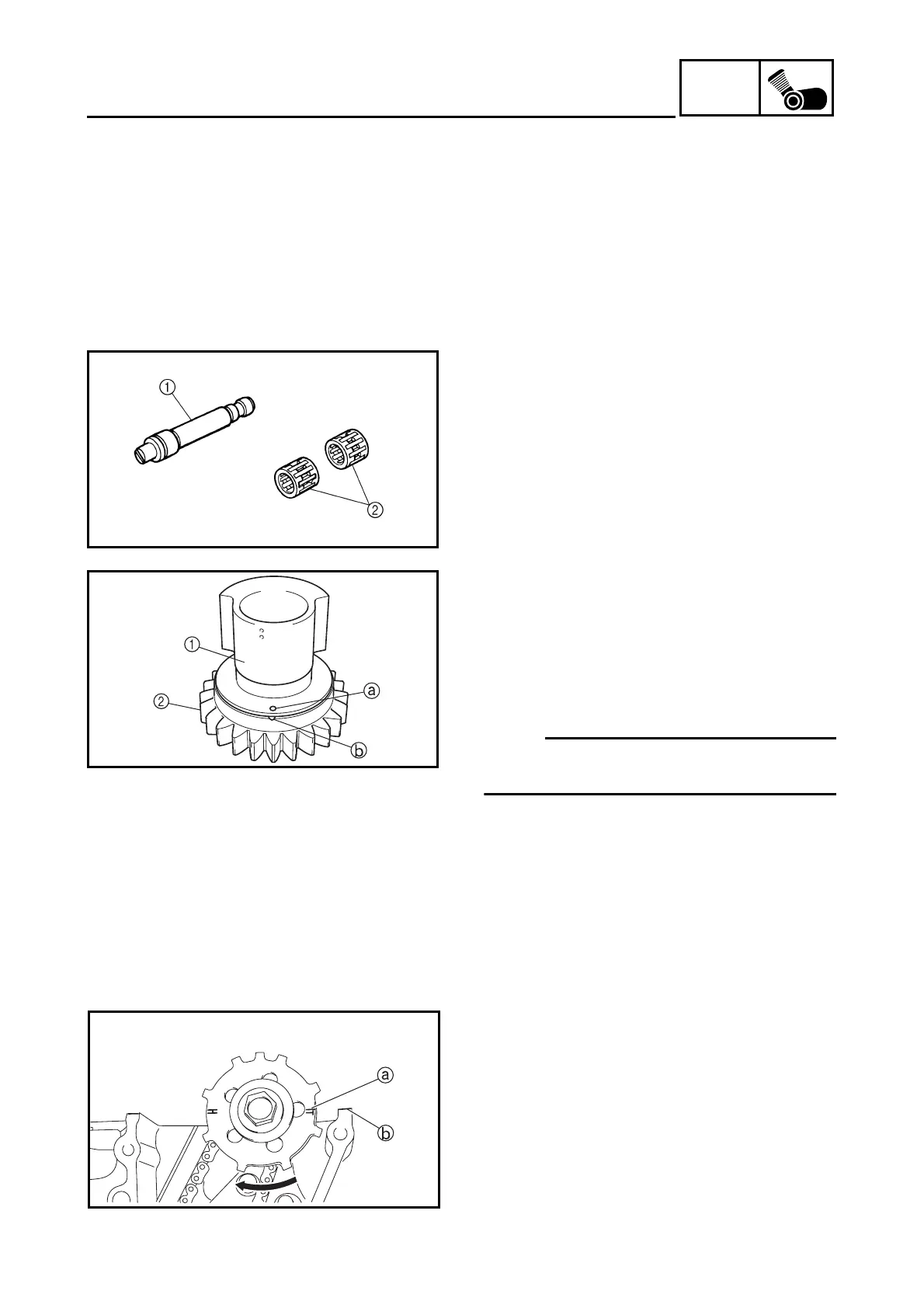

2. Check:
• balancer shaft 1
Cracks/damage/wear → Replace the bal-
ancer shaft and bearings.
Dirt → Clean.
• bearings 2
Damage/wear → Replace.
• absorbers
Damage/wear → Replace.
INSTALLING THE FRONT BALANCER
1. Install:
• balancer weight 1
• absorbers
• balancer gear 2
• bearings
•washers
NOTE:
Align the punch mark a in the balancer weight
with the mark b in the balancer gear.
2. Align:
• “T” mark on the pickup coil rotor
(with the crankcase mating surface)
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the crankshaft clockwise.
b. When piston #1 is at TDC on the compres-
sion stroke, align the “T” mark a on the
pickup coil rotor with the crankcase mating
surface b.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
BALANCERS

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
