5 - 12
ENG

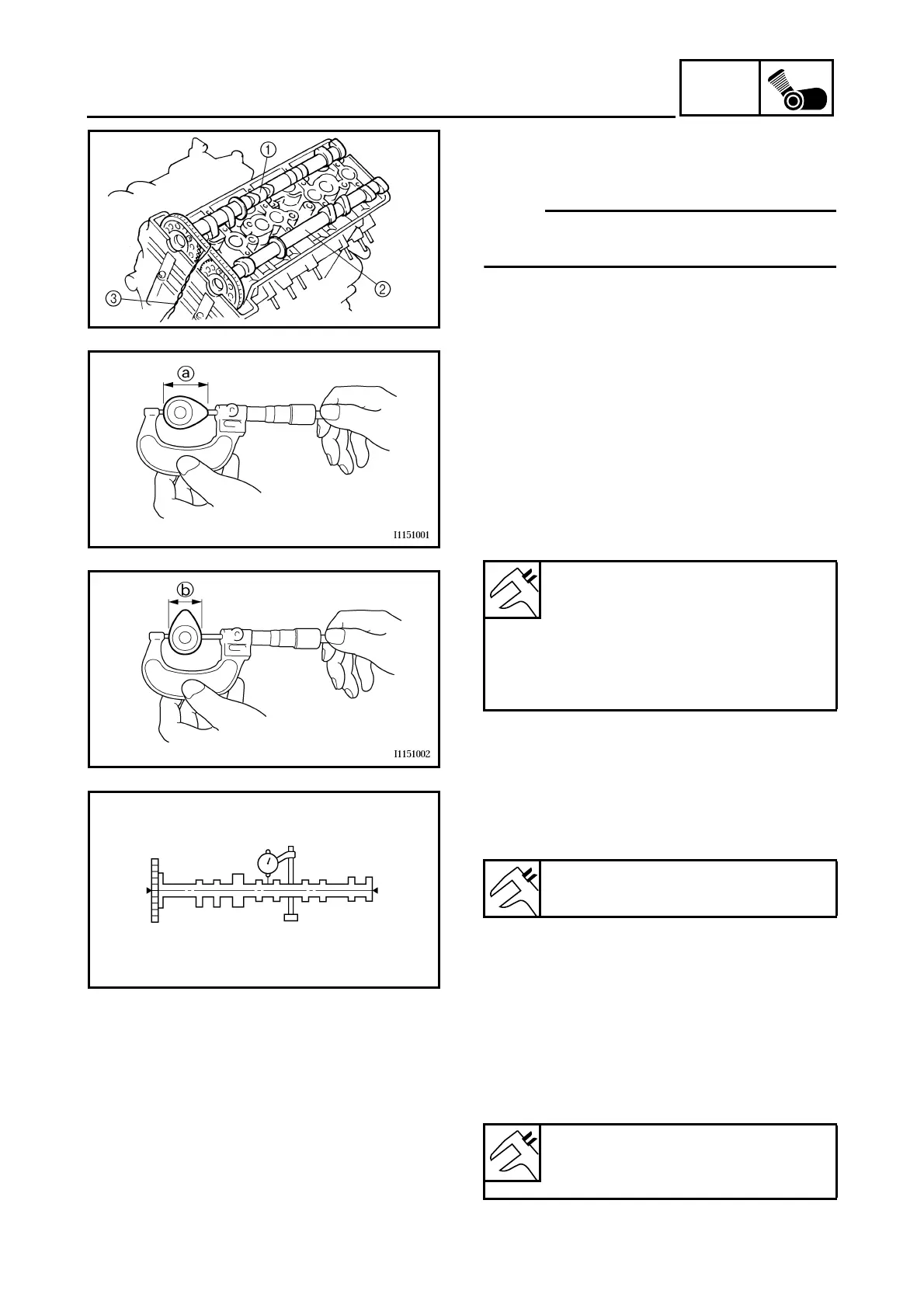

CAMSHAFTS
5. Remove:
• intake camshaft 1
• exhaust camshaft 2
NOTE:
@
To prevent the timing chain from falling into the
crankcase, fasten it with a wire 3.
EAS00204
CHECKING THE CAMSHAFTS
1. Check:
• camshaft lobes
Blue discoloration/pitting/scratches →
Replace the camshaft.
2. Measure:
• camshaft lobe dimensions a and b
Out of specification → Replace the cam-
shaft.
Minimum cam lobe dimensions
Intake camshaft
a
32.05 mm
b
23.997 mm
Exhaust camshaft
a
32.95 mm
b
24.897 mm
3. Measure:
• camshaft runout
Out of specification → Replace.
Maximum camshaft runout
0.03 mm
4. Measure:
• camshaft-journal-to-camshaft-cap clear-
ance
Out of specification → Measure the cam-
shaft journal diameter.
Camshaft-journal-to-camshaft-
cap clearance
0.028 ~ 0.062 mm
