Yamaha FJR1300N 2001 User Manual

4 - 27
CHAS
FRONT AND REAR BRAKES
EAS00592

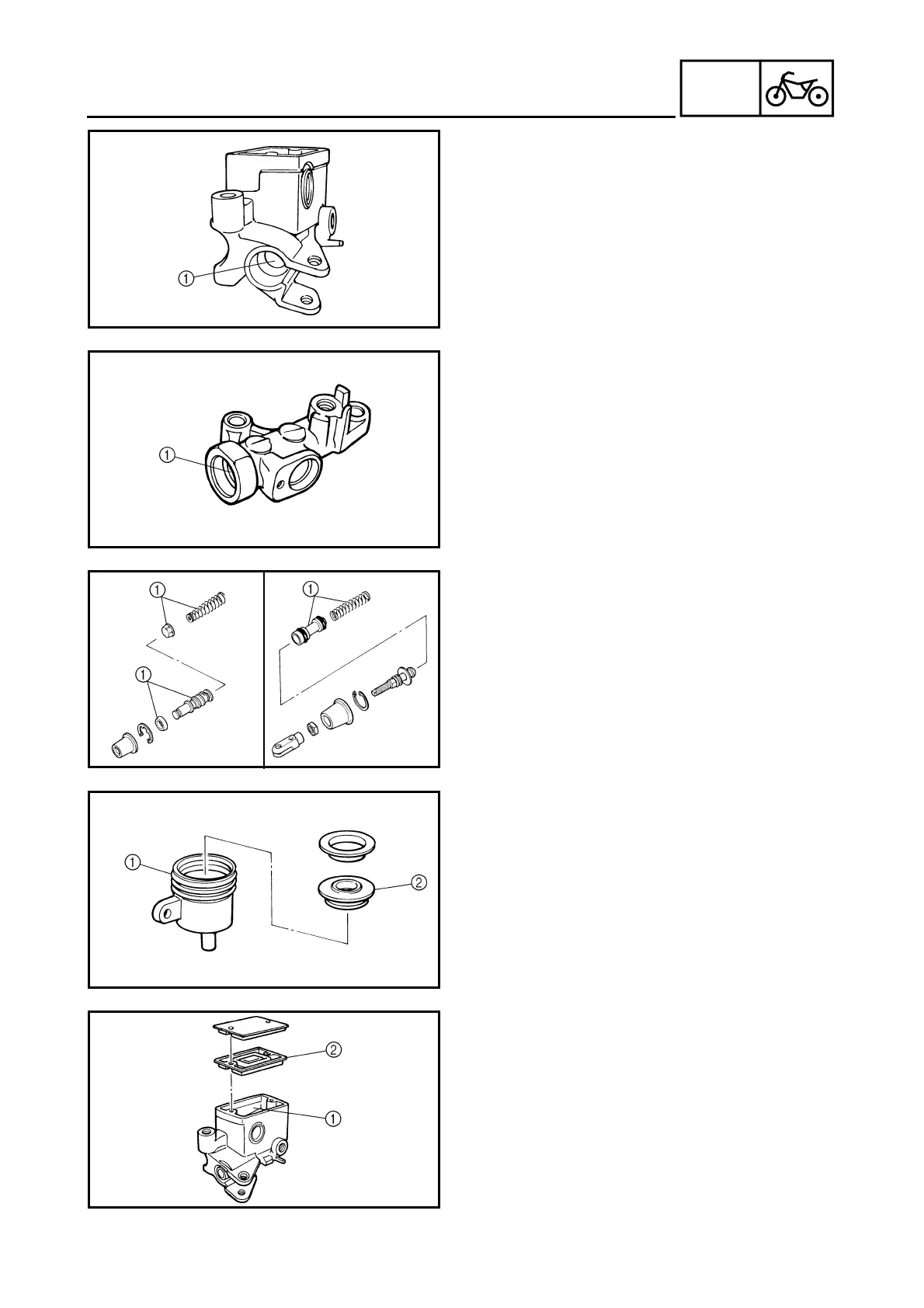

CHECKING THE FRONT AND REAR BRAKE
MASTER CYLINDERS
The following procedure applies to the both of
the brake master cylinders.
1. Check:
• brake master cylinder
1
Damage/scratches/wear
→
Replace.
• brake fluid delivery passages
(brake master cylinder body)
Obstruction
→
Blow out with compressed
air.
È
Front
É
Rear
È
É
2. Check:
• brake master cylinder kit
1
Damage/scratches/wear
→
Replace.
È
Front
É
Rear
È
É
3. Check:
• rear brake fluid reservoir
1
Cracks/damage
→
Replace.
• rear brake fluid reservoir diaphragm
2
Cracks/damage
→
Replace.
4. Check:
• front brake master cylinder reservoir
1
Cracks/damage
→
Replace.
• front brake master cylinder reservoir dia-
phragm
2
Damage/wear
→
Replace.
