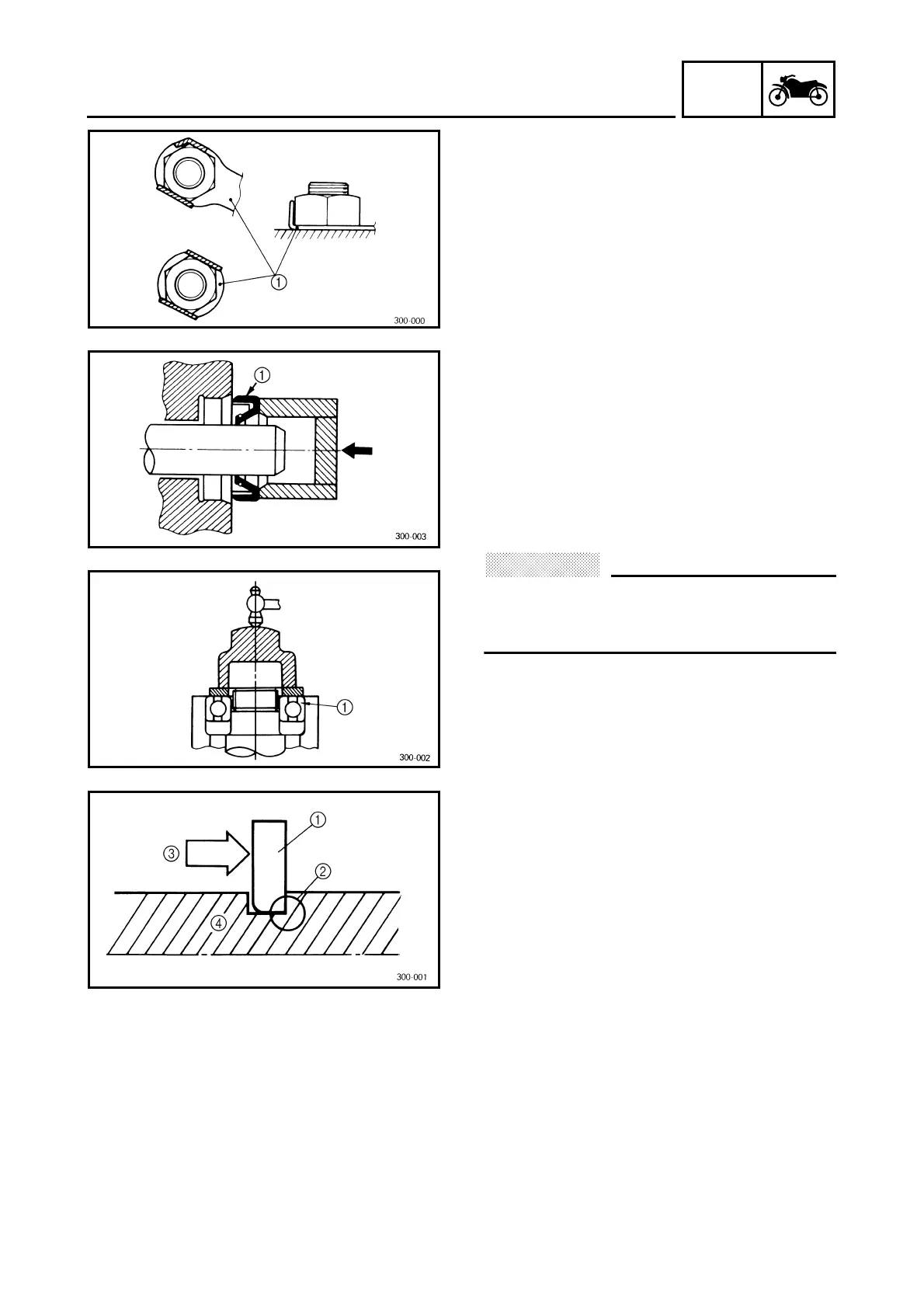

LOCK WASHERS/PLATES AND COTTER
PINS
After removal, replace all lock washers/plates
1
and cotter pins. After the bolt or nut has
been tightened to specification, bend the lock
tabs along a flat of the bolt or nut.
EAS00024
BEARINGS AND OIL SEALS
Install bearings and oil seals so that the manu-
facturer’s marks or numbers are visible. When
installing oil seals, lubricate the oil seal lips
with a light coat of lithium soap base grease.
Oil bearings liberally when installing, if appro-
priate.
1
Oil seal
CAUTION:
@
Do not spin the bearing with compressed
air because this will damage the bearing
surfaces.
1
Bearing
EAS00025
CIRCLIPS
Before reassembly, check all circlips carefully
and replace damaged or distorted circlips.
Always replace piston pin clips after one use.
When installing a circlip
1
, make sure the
sharp-edged corner
2
is positioned opposite
the thrust
3
that the circlip receives.
4
Shaft
IMPORTANT INFORMATION

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
