5 - 2
ENG
ENGINE

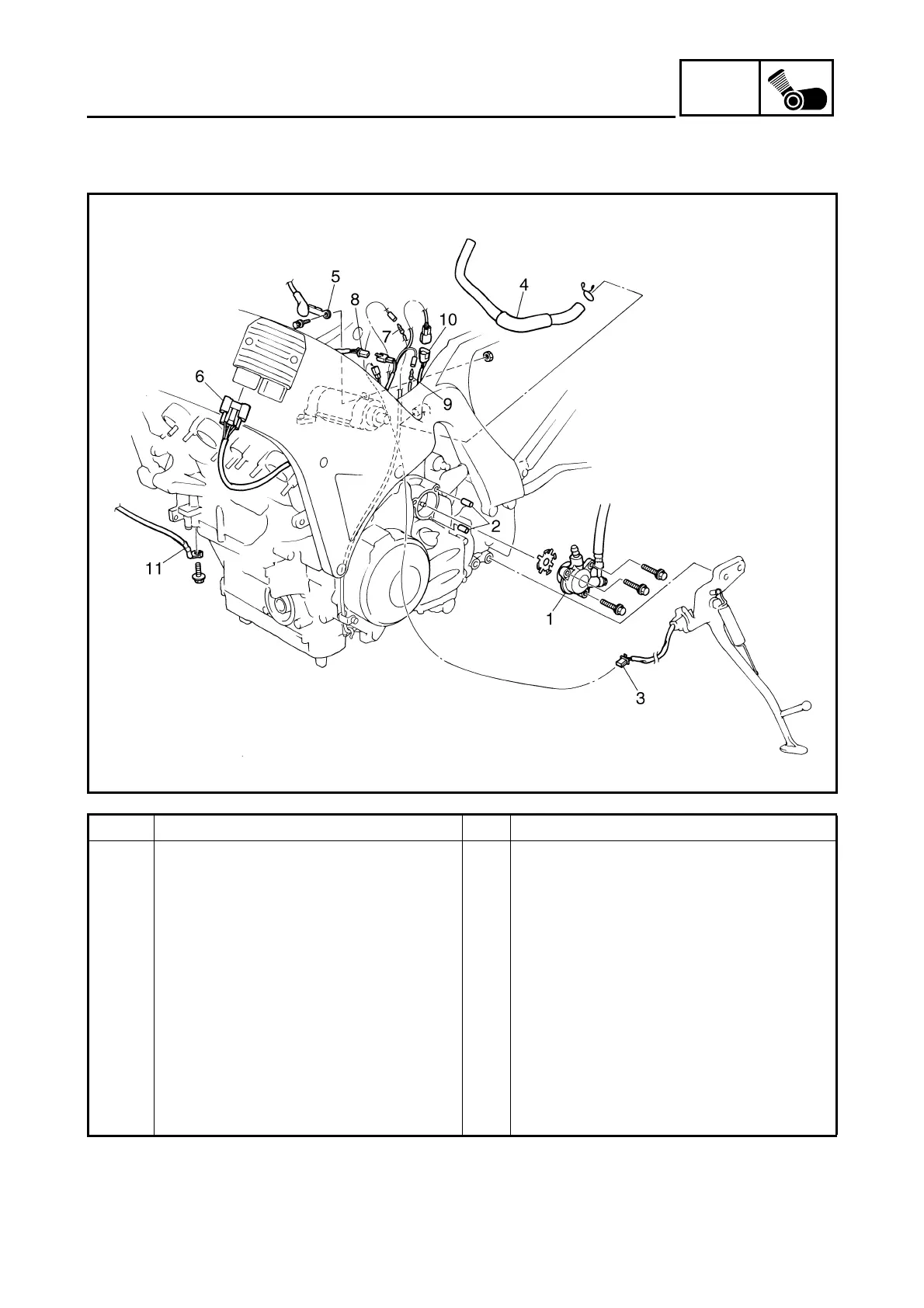

LEADS AND HOSES
Order Job/Part Q’ty Remarks
Removing the leads and hoses
Remove the parts in the order listed.
Air filter case Refer to “AIR FILTER CASE” in chapter
3.
Throttle bodies Refer to “FUEL INJECTION SYSTEM” in
chapter 7.
Air cut-off valve assembly/hoses/reed
valves
Refer to “AIR INDUCTION SYSTEM” in
chapter 7.
Thermostat assembly Refer to “THERMOSTAT” in chapter 6.
Engine oil/oil filter cartridge Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3.
Oil cooler Refer to “OIL COOLER” in chapter 6.
Water pump Refer to “WATER PUMP” in chapter 6.
