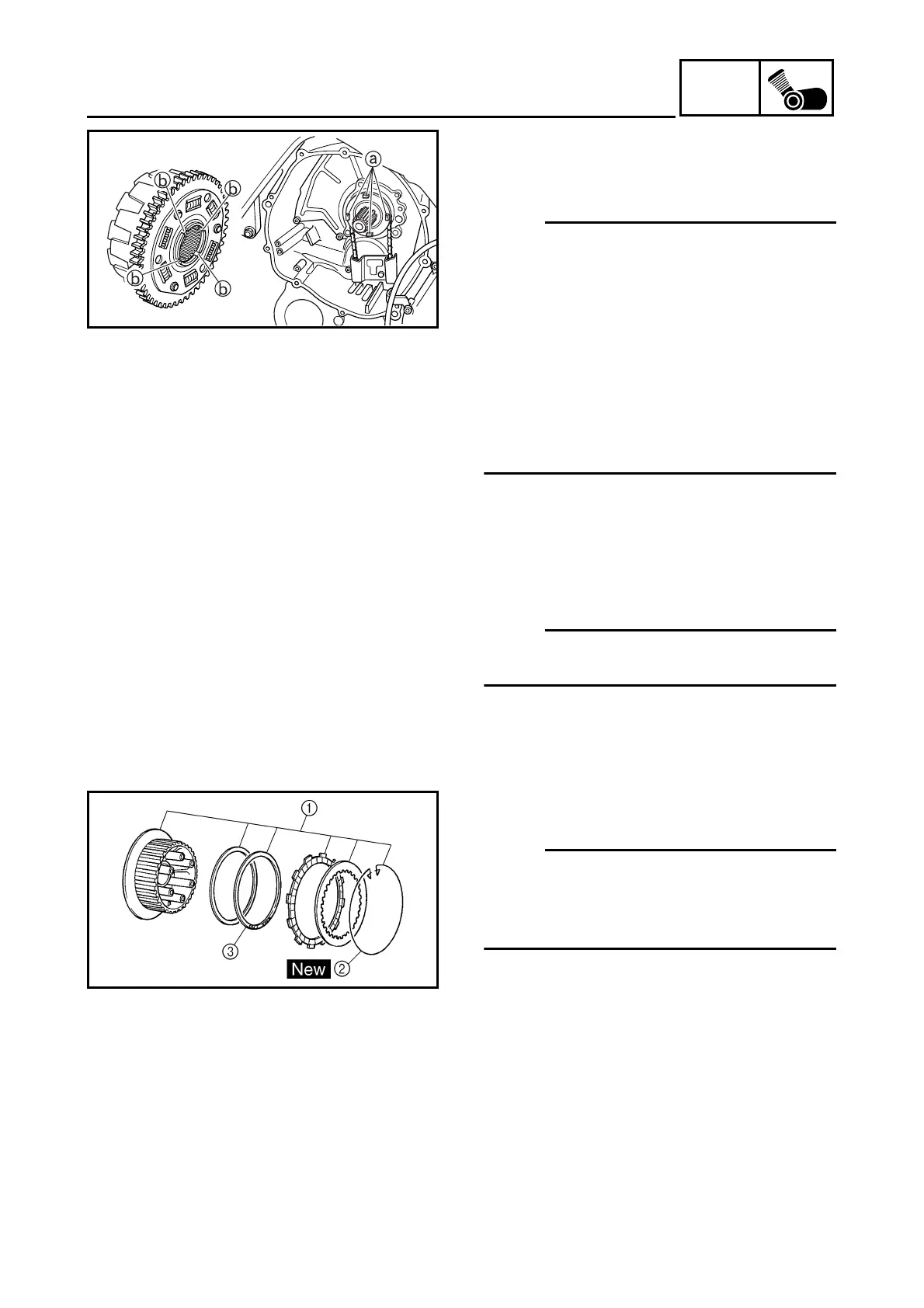

INSTALLING THE CLUTCH
1. Install:
• clutch housing
1
NOTE:
@
• Make sure that the slots
a
into the clutch
housing align with the tabs
b
onto the oil
pump drive sprocket.
• Make sure that the primary driven gear teeth
and primary drive gear teeth mesh correctly.
• Insert a cross-headed screwdriver into one of
the holes of the clutch housing and primary
driven gear, and then rotate the inner pri-
mary driven gear until both primary driver
gears are aligned. The teeth of both primary
driven gears must be aligned for installation.
2. Install:
•spacer
NOTE:
@
Install the spacer with the two screw holes fac-
ing towards the clutch boss.
3. Install:
• clutch boss assembly
1
NOTE:
@
• If the wire circlip
2
has been removed, care-
fully install a new one as shown.
• Install the clutch spring plate
3
with the
“OUTSIDE” mark facing out.
