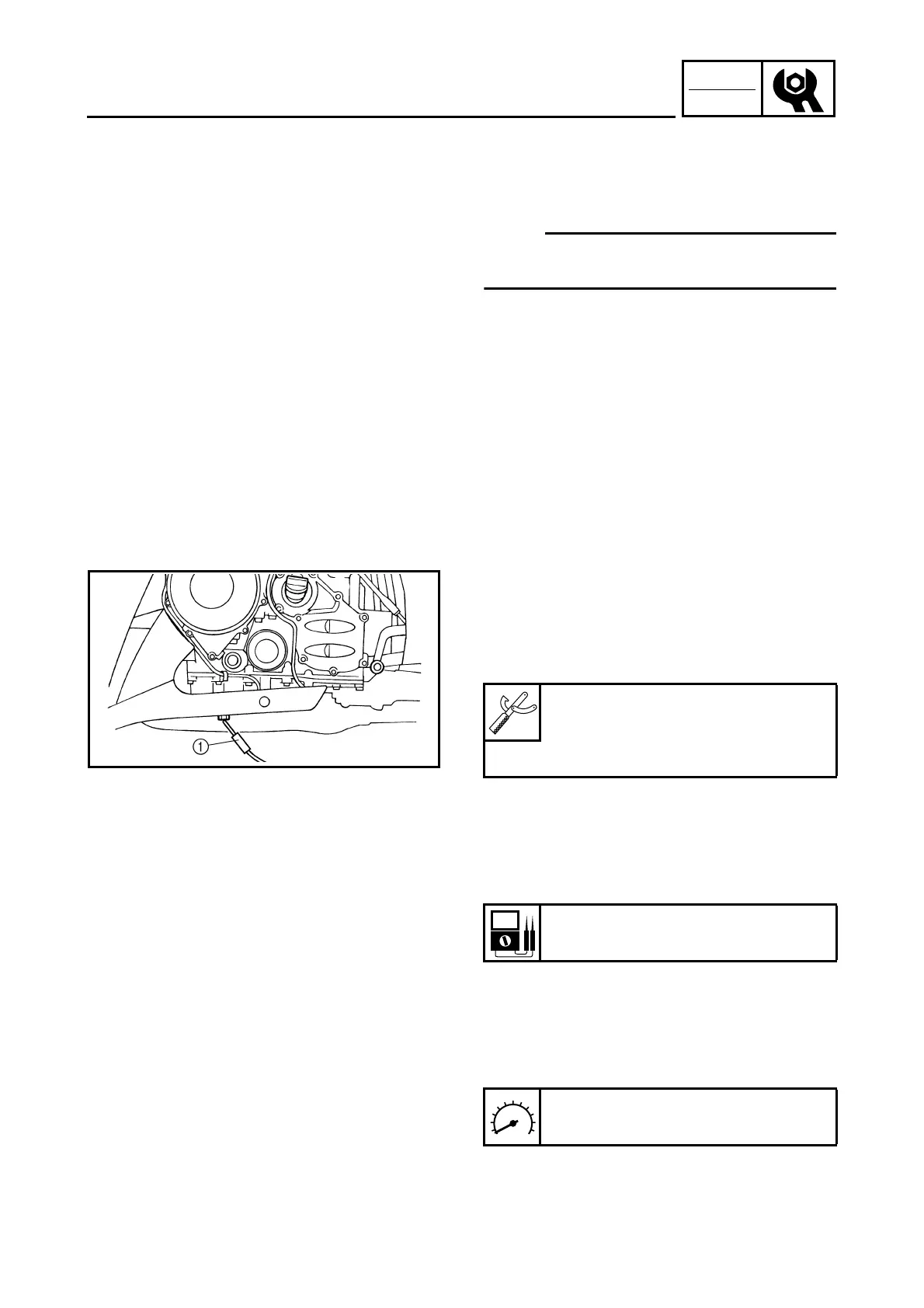

Yamaha FJR1300N 2001 User Manual

3 - 27
CHK
ADJ
CHECKING THE EXHAUST GAS AT IDLE
CHECKING THE EXHAUST GAS AT IDLE
(Measuring the exhaust gas at idle [when air
induction system is operating])
1. Stand the motorcycle on a level surface.
NOTE:
• Place the motorcycle on a suitable stand.
• Make sure the motorcycle is upright.
2. Remove:
•rider seat
• fuel tank
• T-bar
Refer to “SEATS AND FUEL TANK”.
3. Install:
• pocket tester 1
(onto the engine oil drain bolt)
• engine tachometer
(onto the spark plug lead of cylinder #1)
4. Install:
• fuel tank
Refer to “SEATS AND FUEL TANK”.
5. Start the engine and warm it up until the
specified oil temperature is reached.
6. Measure:
• engine idling speed
Out of specification → Adjust.
Refer to “ADJUSTING THE ENGINE
IDLING SPEED”.
Pocket tester
90890-03132
Engine tachometer
90890-06760
Oil temperature
80 ~ 90 °C
Engine idling speed
1,000 ~ 1,100 r/min

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
