7 - 1
FI

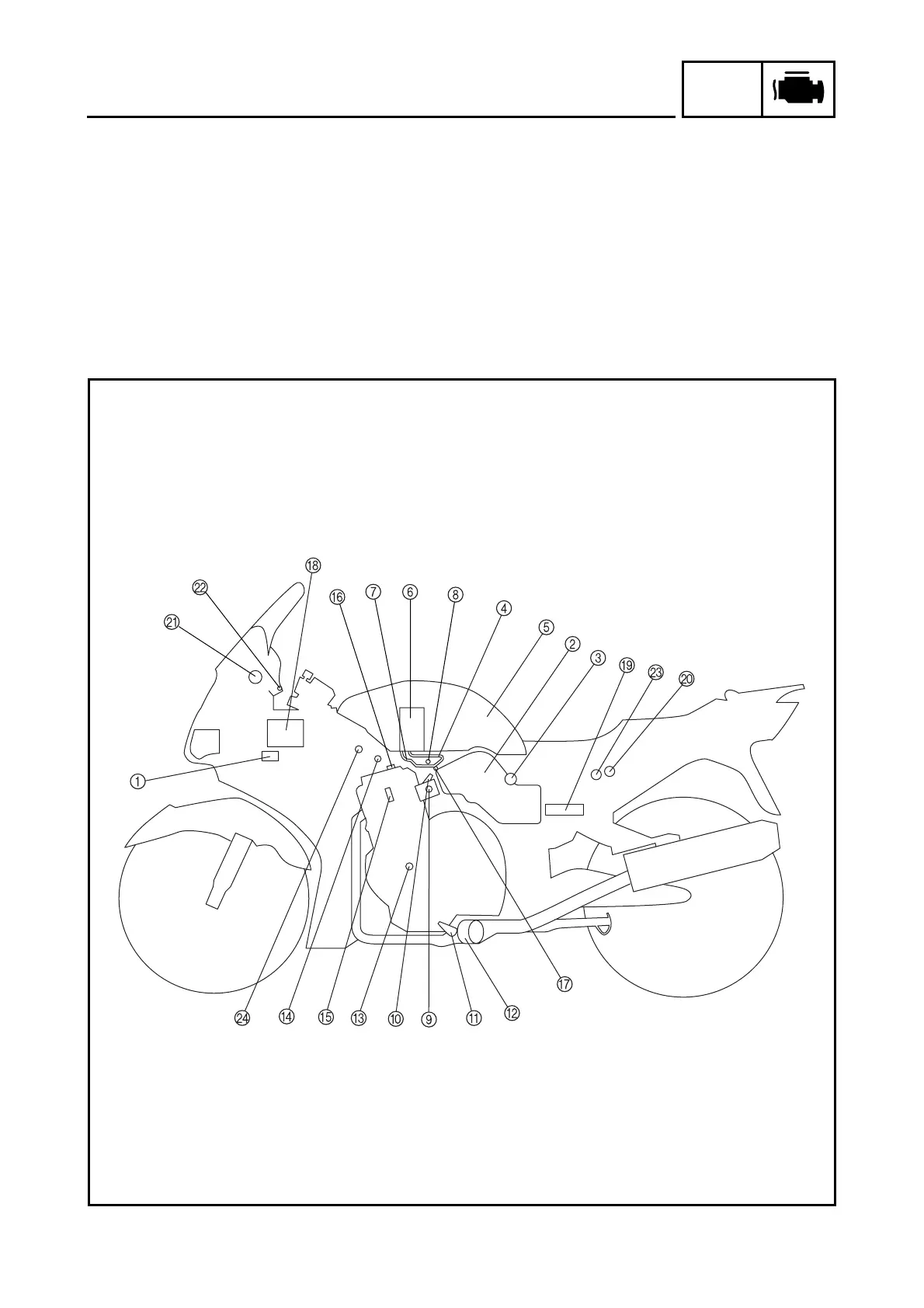

FUEL INJECTION SYSTEM
FUEL INJECTION SYSTEM
FUEL INJECTION SYSTEM
1 Ignition coil
2 Air filter case
3 Intake temperature
sensor
4 Fuel delivery hose
5 Fuel tank
6 Fuel pump
7 Fuel return hose
8 Intake air pressure
sensor
9 Throttle position sensor
0 Fuel injector
A O
2
sensor
B Catalytic converter
C Crankshaft position
sensor
D Coolant temperature
sensor
E Spark plug
F Cylinder identifica-
tion sensor
G Pressure regulator
H Battery
I ECU
J Atmospheric pressure
sensor
K Fuel injection system
relay
L Engine trouble warn-
ing light
M Lean angle cut-off
switch
N Air cut-off valve

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
