Yamaha FJR1300N 2001 User Manual

4 - 23
CHAS
FRONT AND REAR BRAKES
EAS00586

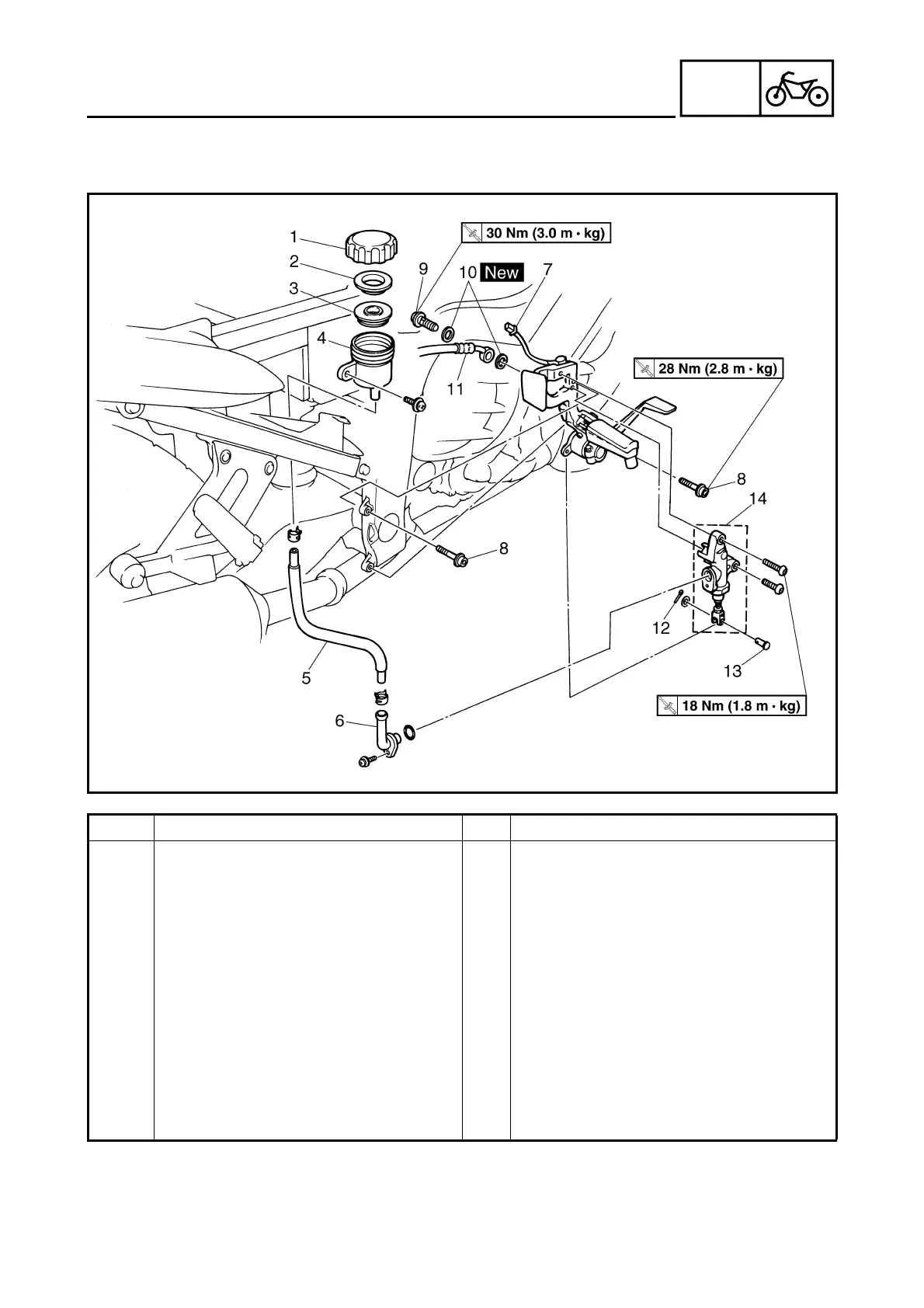

REAR BRAKE MASTER CYLINDER
Order Job/Part Q’ty Remarks
Removing the rear brake master cyl-
inder
Remove the parts in the order listed.
Side cover (right) Refer to “COWLINGS AND COVERS” in
chapter 3.
Brake fluid Drain.
1 Brake fluid reservoir cap 1
2 Brake fluid reservoir diaphragm holder 1
3 Brake fluid reservoir diaphragm 1
4 Brake fluid reservoir 1
5 Brake fluid reservoir hose 1
6Hose joint 1
7 Rear brake light switch coupler 1 Disconnect.
8 Right footrest bracket bolt 2
