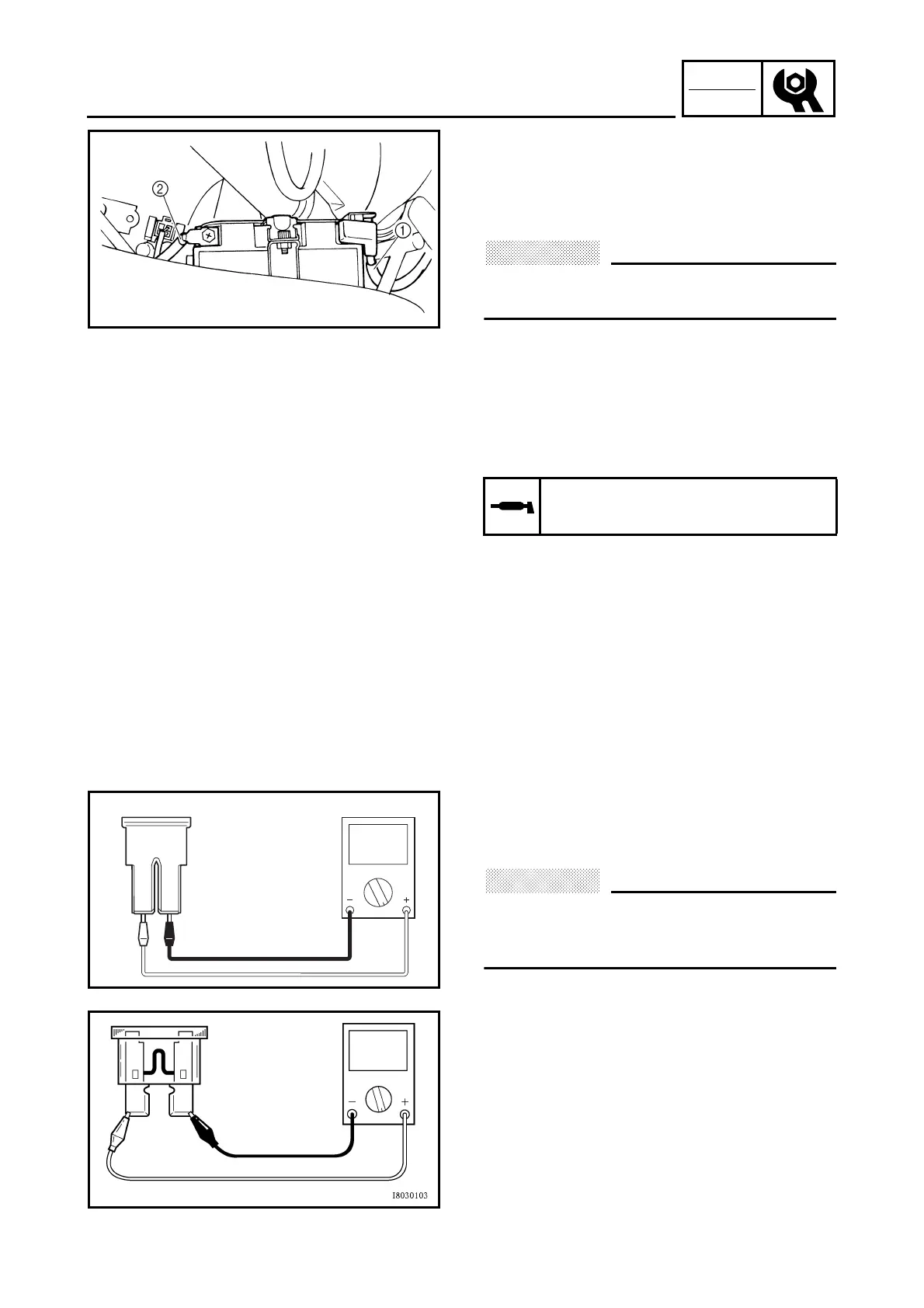

CHECKING AND CHARGING THE BATTERY/
CHECKING THE FUSES
6. Install:
• battery
7. Connect:
• battery leads
(to the battery terminals)
CAUTION:
@
First, connect the positive battery lead
1
,
and then the negative battery lead
2
.
8. Check:
• battery terminals
Dirt → Clean with a wire brush.
Loose connection → Connect properly.
9. Lubricate:
• battery terminals
10.Install:
• right inner panel (front cowling)
Refer to “COWLINGS AND COVERS”.
Recommended lubricant
Dielectric grease
EAS00181
CHECKING THE FUSES
The following procedure applies to all of the
fuses.
CAUTION:
@
To avoid a short circuit, always set the
main switch to “OFF” when checking or
replacing a fuse.
1. Remove:
• right inner panel (front cowling)
• left inner panel (front cowling)
• front-right inner panel (front cowling)
Refer to “COWLINGS AND COVERS”.
2. Check:
•continuity
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester to the fuse and
check the continuity.
