4 - 20
CHAS
FRONT AND REAR BRAKES
EAS00584

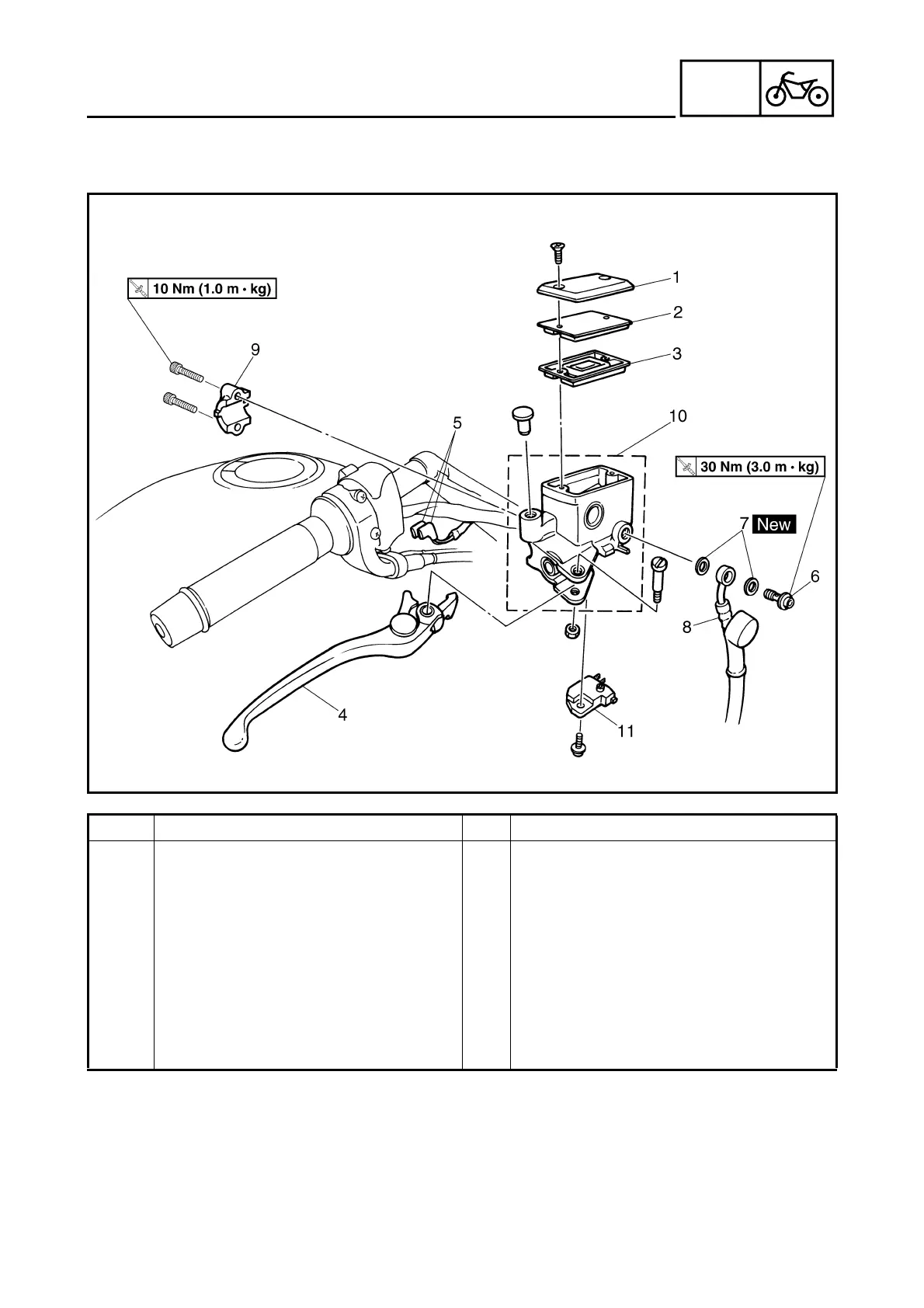

FRONT BRAKE MASTER CYLINDER
Order Job/Part Q’ty Remarks
Removing the front brake master
cylinder
Remove the parts in the order listed.
Brake fluid Drain.
1 Brake master cylinder reservoir cap 1
2 Brake master cylinder reservoir dia-
phragm holder
1
3 Brake master cylinder reservoir dia-
phragm
1
4Brake lever 1
5 Front brake light switch connector 2 Disconnect.
