Yamaha FJR1300N 2001 User Manual

7 - 38
FI

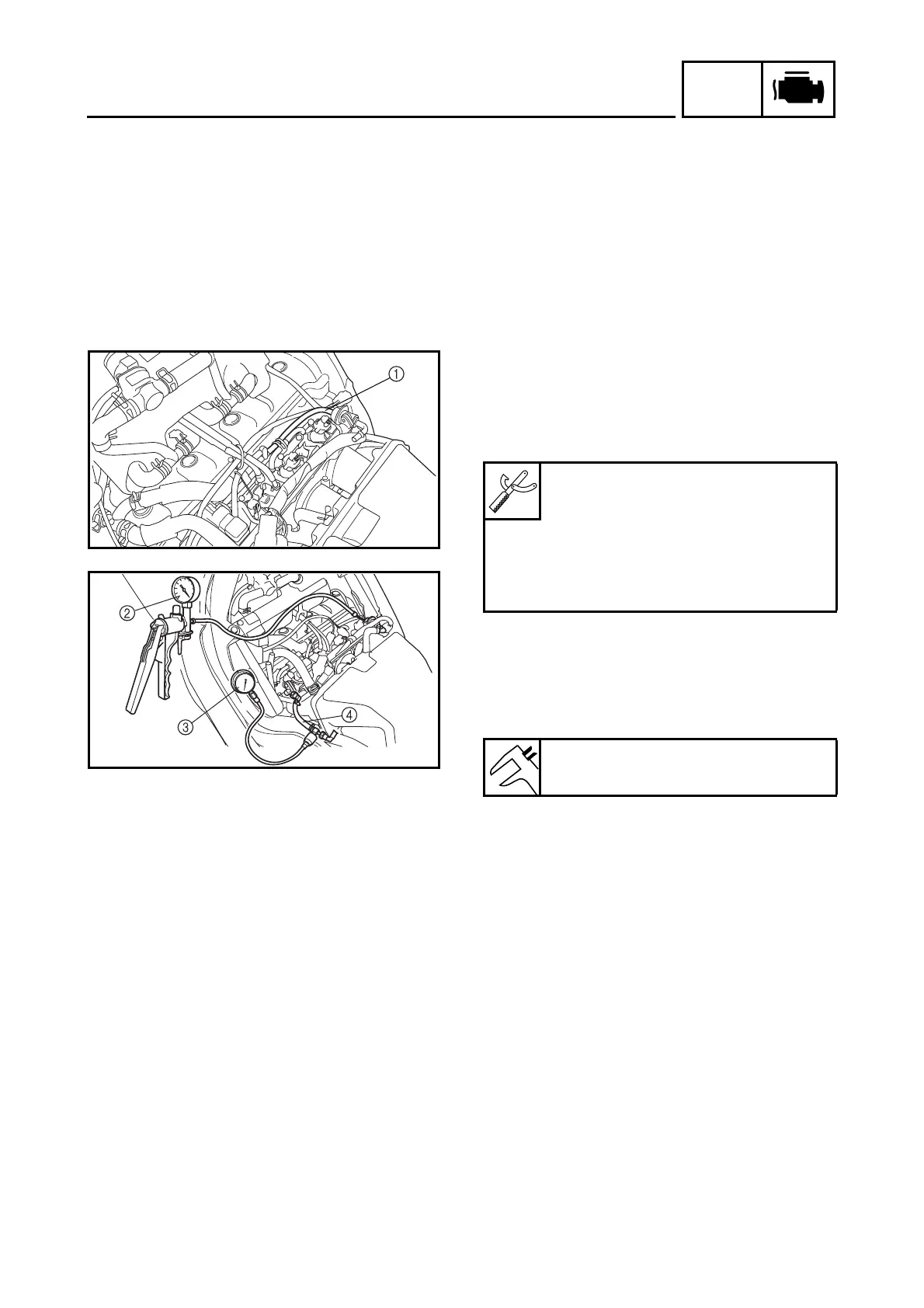

CHECKING THE FUEL PUMP AND
PRESSURE REGULATOR OPERATION
1. Check:
• pressure regulator operation
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the fuel tank.
Refer to “SEATS AND FUEL TANK” in chap-
ter 3.
b. Disconnect the negative pressure hose 1
from the pressure regulator at the joint.
c. Connect the vacuum/pressure pump gauge
set 2 onto the negative pressure hose from
the pressure regulator.
d. Connect the pressure gauge 3 and adapter
4 onto the fuel injector pipe.
e. Install the fuel tank.
Refer to “SEATS AND FUEL TANK” in chap-
ter 3.
f. Start the engine.
g. Measure the fuel pressure.
Vacuum/pressure pump gauge
set
90890-06756
Pressure gauge
90890-03153
Adapter
90890-03176
Fuel pressure
250 kPa (2.5 kgf/cm
2
, 2.5 bar)
FUEL INJECTION SYSTEM

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
