Yamaha FJR1300N 2001 User Manual

5 - 34
ENG
EAS00343

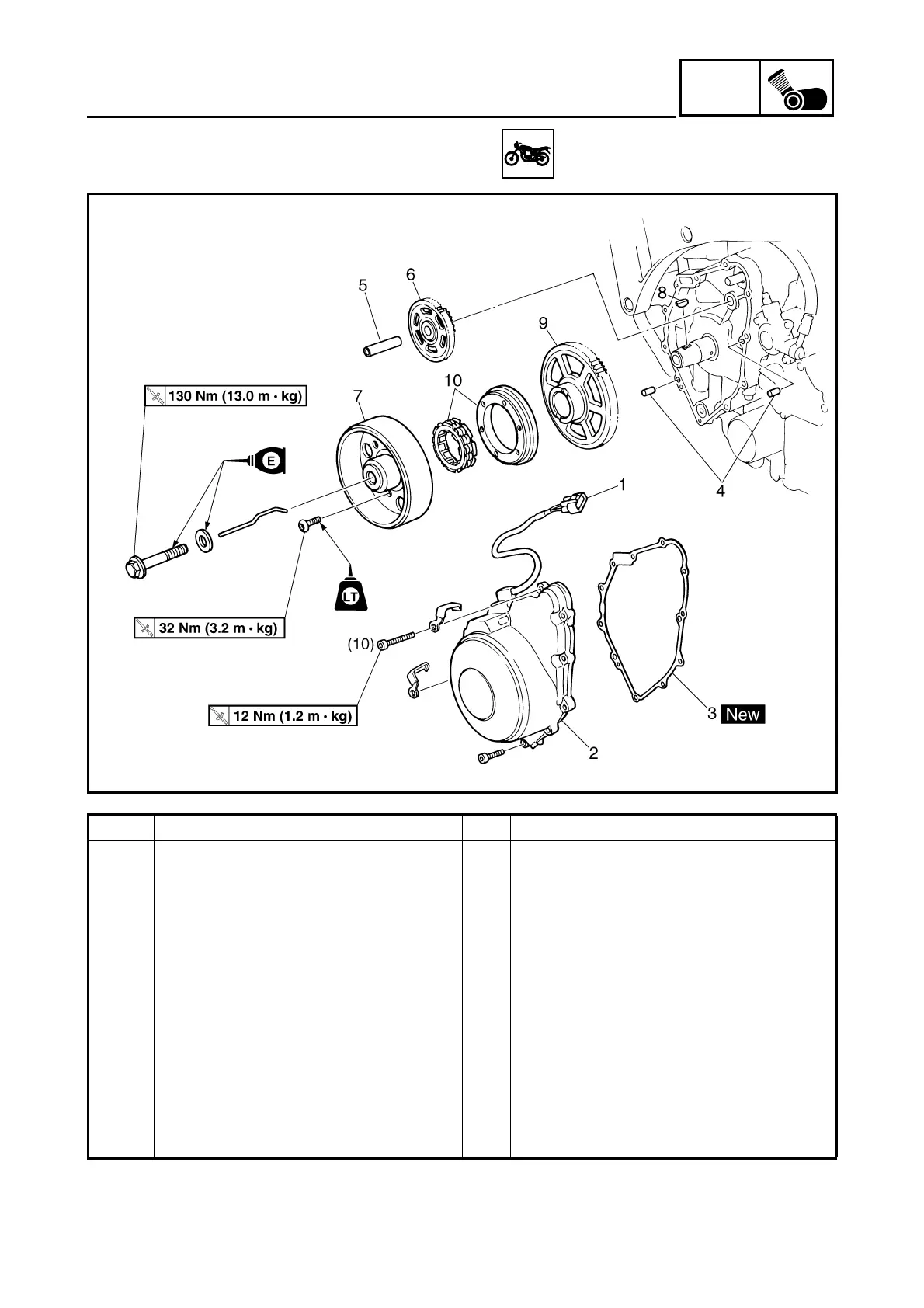

GENERATOR AND STARTER CLUTCH
GENERATOR ROTOR AND STARTER CLUTCH
Order Job/Part Q’ty Remarks
Removing the generator rotor and
starter clutch
Remove the parts in the order listed.
Fuel tank/seats/T-bar/rubber seat Refer to “SEATS AND FUEL TANK” in
chapter 3.
Side covers/front cowling assembly Refer to “COWLINGS AND COVERS” in
chapter 3.
Engine oil Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3.
1 Stator assembly coupler 1 Disconnect.
2 Generator cover 1 Refer to “REMOVING THE GENERA-
TOR”.
3 Generator cover gasket 1
4 Dowel pin 2
GENERATOR AND STARTER CLUTCH

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
