EAS00252

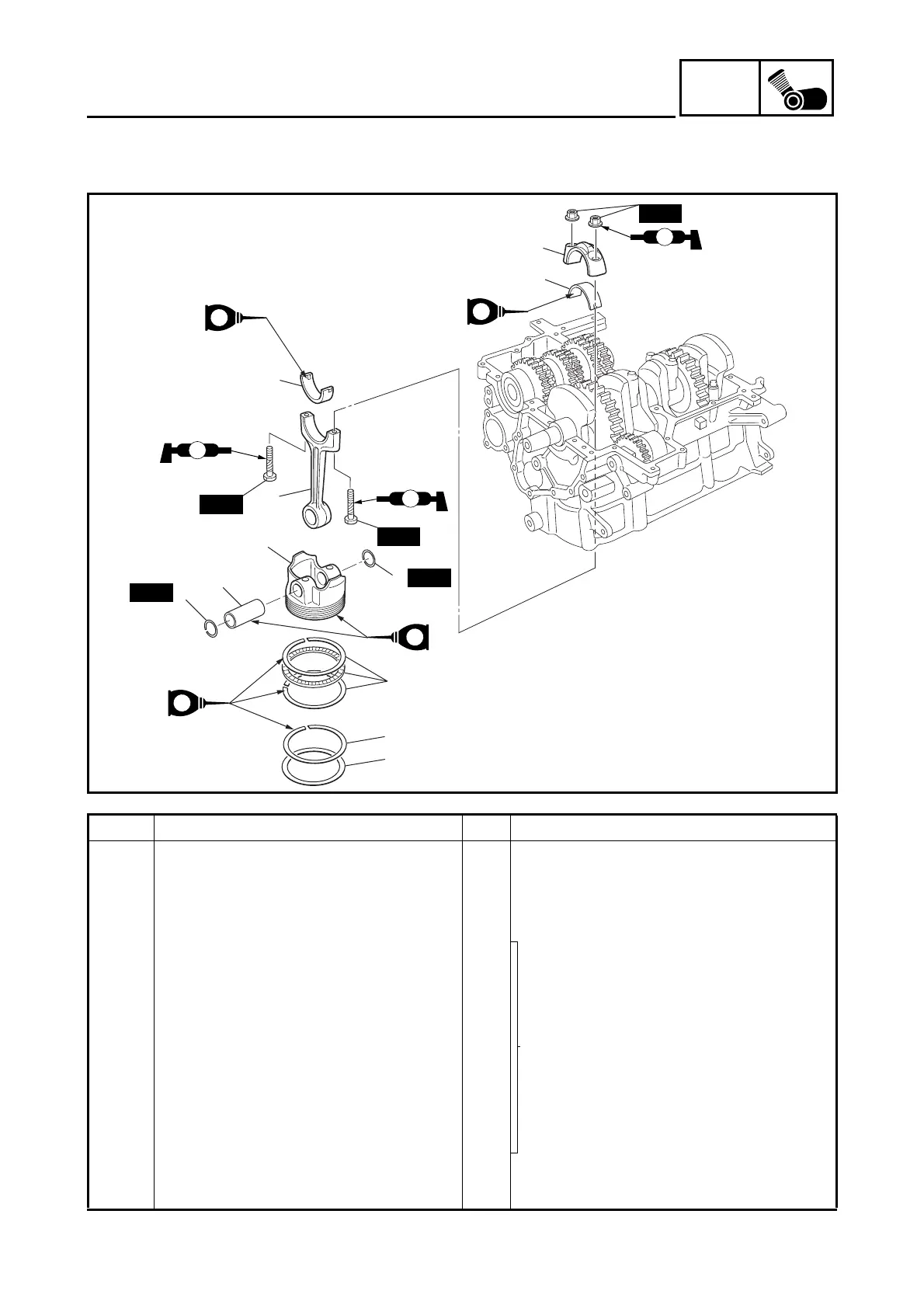

CONNECTING RODS AND PISTONS
1
2
7
6
5
4
3
8
9
10
3
E
E
E
E
New
New
M
M
M
New
New
New
Order Job/Part Q’ty Remarks
Removing the connecting rods and
pistons
Remove the parts in the order listed.
Crankcase Separate.
Refer to “CRANKCASE”.
1 Connecting rod cap 4
Refer to “REMOVING THE CONNECT-
ING RODS AND PISTONS” and
“INSTALLING THE CONNECTING
RODS AND PISTONS”.
2 Big end lower bearing 4
3 Piston pin clip 8
4 Piston pin 4
5Piston 4
6 Connecting rod 4
7 Big end upper bearing 4
8 Top ring 4
9 2nd ring 4
10 Oil ring 4
For installation, reverse the removal
procedure.
CONNECTING RODS AND PISTONS

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
