8 - 1
–+
ELEC
ELECTRICAL COMPONENTS
EAS00729
ELECTRICAL

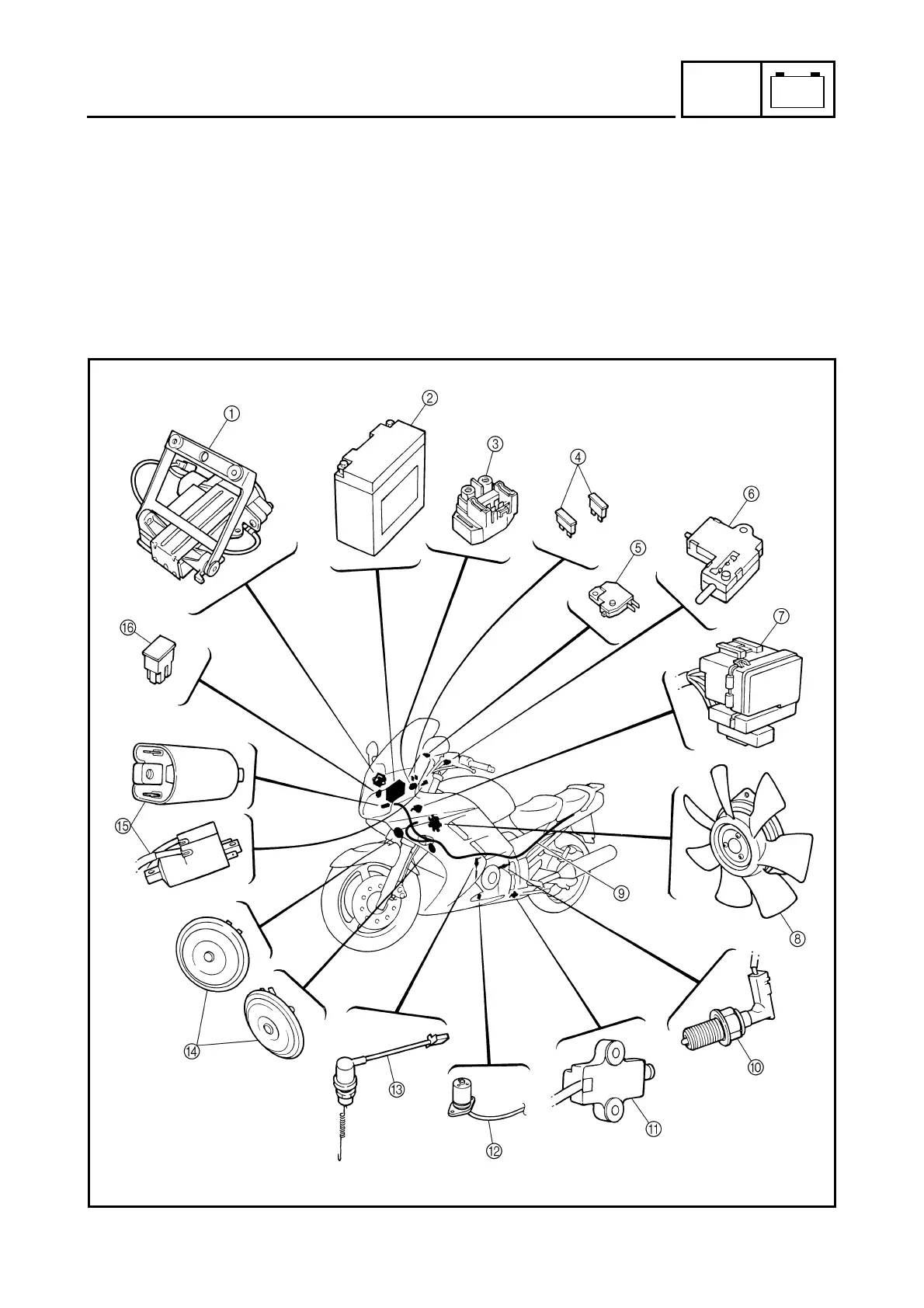

ELECTRICAL COMPONENTS
1
Windshield drive unit
2
Battery
3
Starter relay
4
Fuel injection system fuse
5
Front brake switch
6
Clutch switch
7
Fuse box
8
Radiator fan motor
9
Wire harness
0
Neutral switch
A
Sidestand switch
B
Oil level switch
C
Rear brake switch
D
Horn
E
Ignition coil
F
Main fuse
