Yamaha FJR1300N 2001 User Manual

3 - 58
CHK
ADJ
CHECKING THE BRAKE FLUID LEVEL/
CHECKING THE BRAKE PADS/
ADJUSTING THE REAR BRAKE LIGHT SWITCH
CAUTION:
@
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
NOTE:
@
In order to ensure a correct reading of the
brake fluid level, make sure the top of the
brake fluid reservoir is horizontal.
EAS00118

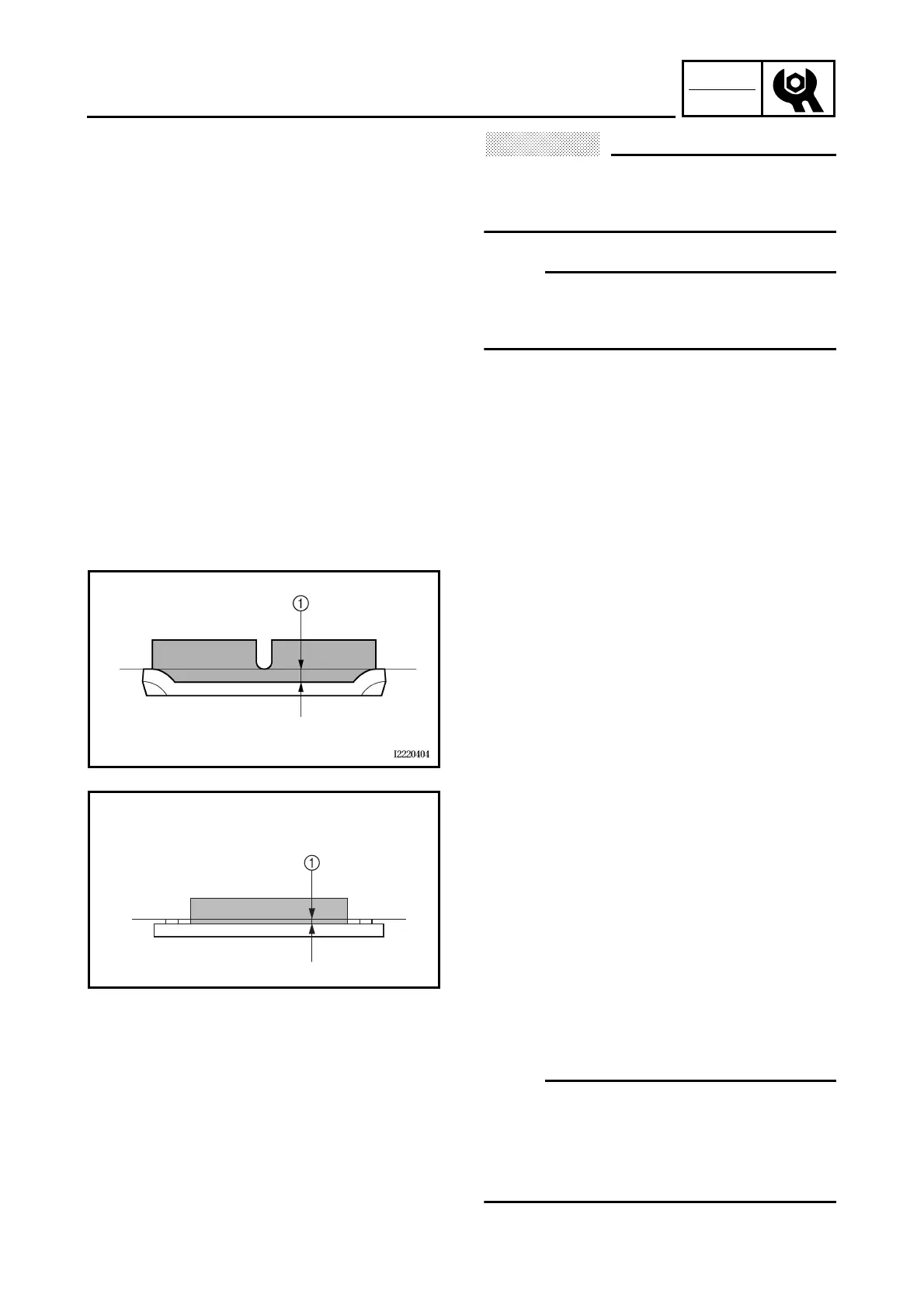

CHECKING THE BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• front brake pad
Wear indicator
1
almost touch the brake
disc
→
Replace the brake pads as a set.
Refer to “FRONT AND REAR BRAKES” in
chapter 4.
• rear brake pad
Wear indicator
1
almost touch the brake
disc
→
Replace the brake pads as a set.
Refer to “FRONT AND REAR BRAKES” in
chapter 4.
È
Front brake
É
Rear brake
È
É
EAS00128
ADJUSTING THE REAR BRAKE LIGHT
SWITCH
NOTE:
@
The rear brake light switch is operated by
movement of the brake pedal. The rear brake
light switch is properly adjusted when the
brake light comes on just before the braking
effect starts.

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
