Yamaha FJR1300N 2001 User Manual

4 - 7
CHAS
FRONT WHEEL AND BRAKE DISCS
3. Install:
• brake caliper
WARNING
@
Make sure the brake hose is routed prop-
erly.
T
R
.
.
40 Nm (4.0 m · kg)
EAS00549
ADJUSTING THE FRONT WHEEL STATIC
BALANCE
NOTE:
@
• After replacing the tire, wheel or both, the
front wheel static balance should be
adjusted.
• Adjust the front wheel static balance with the
brake discs installed.
1. Remove:
• balancing weight(s)
2. Find:
• front wheel’s heavy spot
NOTE:
@
Place the front wheel on a suitable balancing
stand.
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼

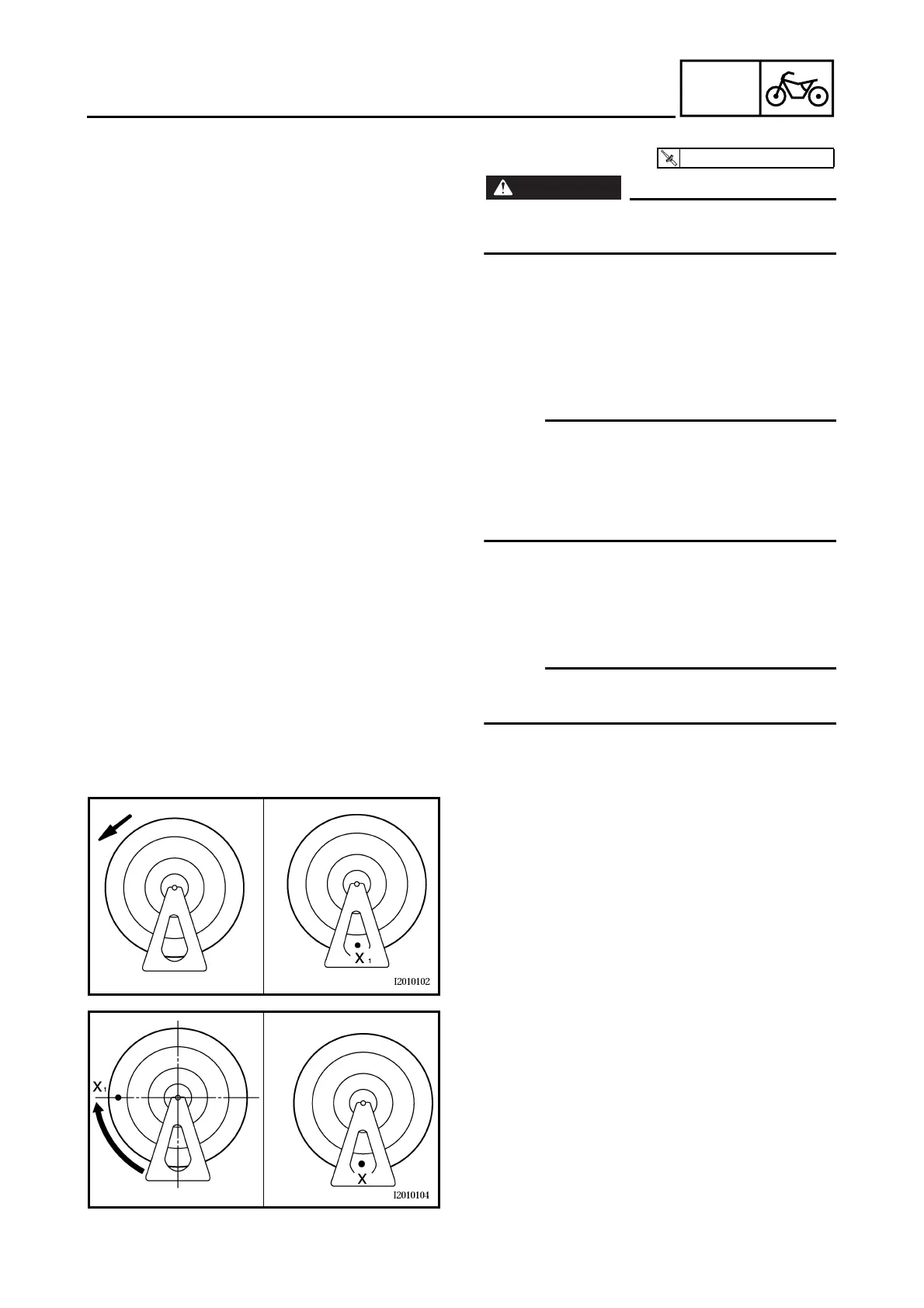

a. Spin the front wheel.
b. When the front wheel stops, put an “X” mark
at the bottom of the wheel.
c. Turn the front wheel 90° so that the “X”
mark is positioned as shown.
d. Release the front wheel.
e. When the wheel stops, put an “X” mark at
the bottom of the wheel.
f. Repeat steps (d) through (f) several times
until all the marks come to rest at the same
spot.
g. The spot where all the marks come to rest
is the front wheel’s heavy spot “X”.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
