4 - 87
CHAS
SWINGARM
EAS00701

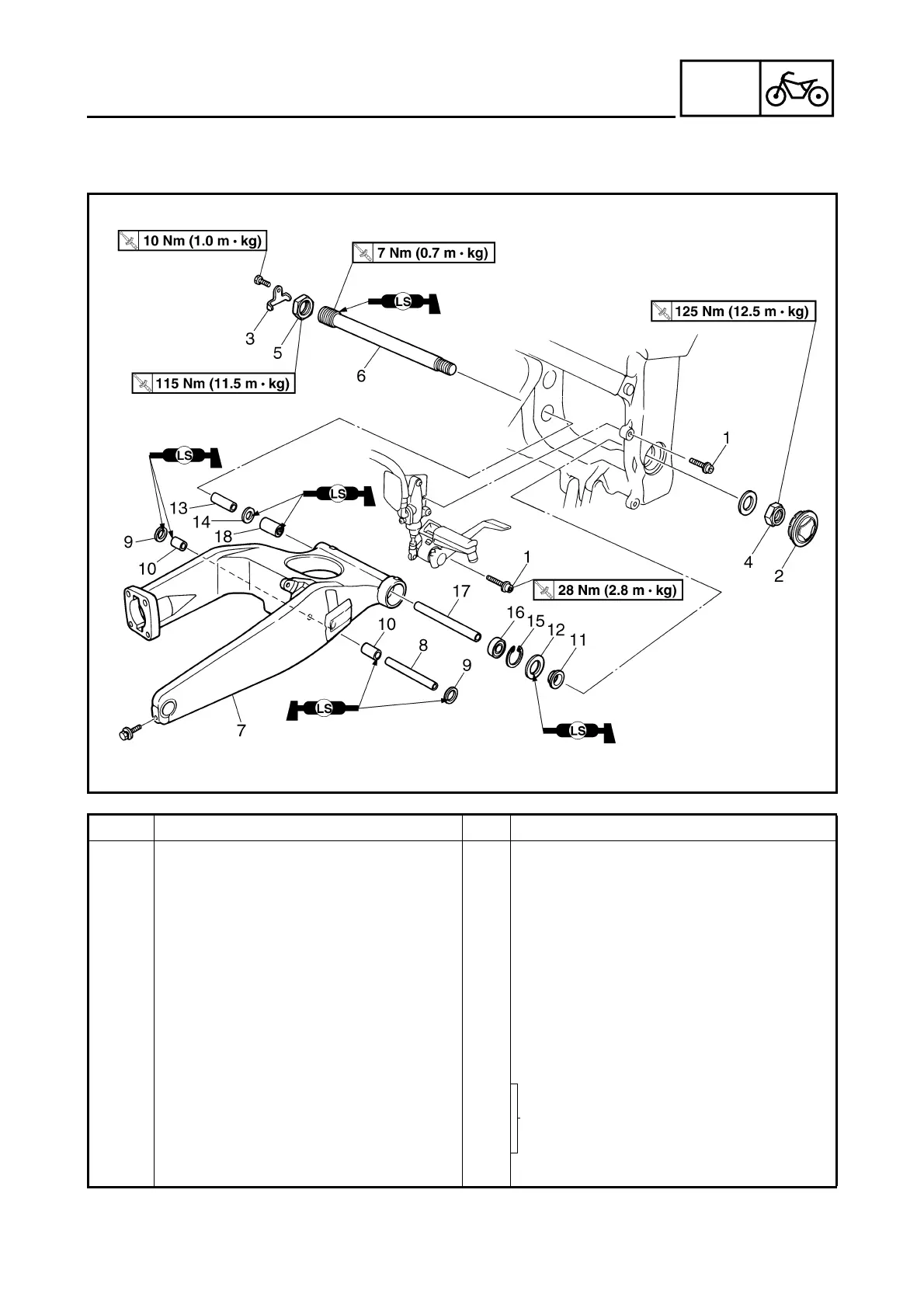

SWINGARM
Order Job/Part Q’ty Remarks
Removing the swingarm
Remove the parts in the order listed.
Mufflers Refer to “ENGINE” in chapter 5.
Rear wheel Refer to “REAR WHEEL AND BRAKE
DISC”.
Final drive assembly/universal joint Refer to “SHAFT DRIVE”.
Rear shock absorber assembly Refer to “REAR SHOCK ABSORBER
ASSEMBLY AND RELAY ARM”.
1 Right footrest bracket bolt 2
2Cover 1
3Cover 1
4 Pivot shaft nut 1
Refer to “REMOVING THE
SWINGARM”.
5 Locknut 1
6 Pivot shaft 1
7 Swingarm 1
8 Spacer 1
