Yamaha FJR1300N 2001 User Manual

5 - 48
ENG
EAS00275
EAS00277

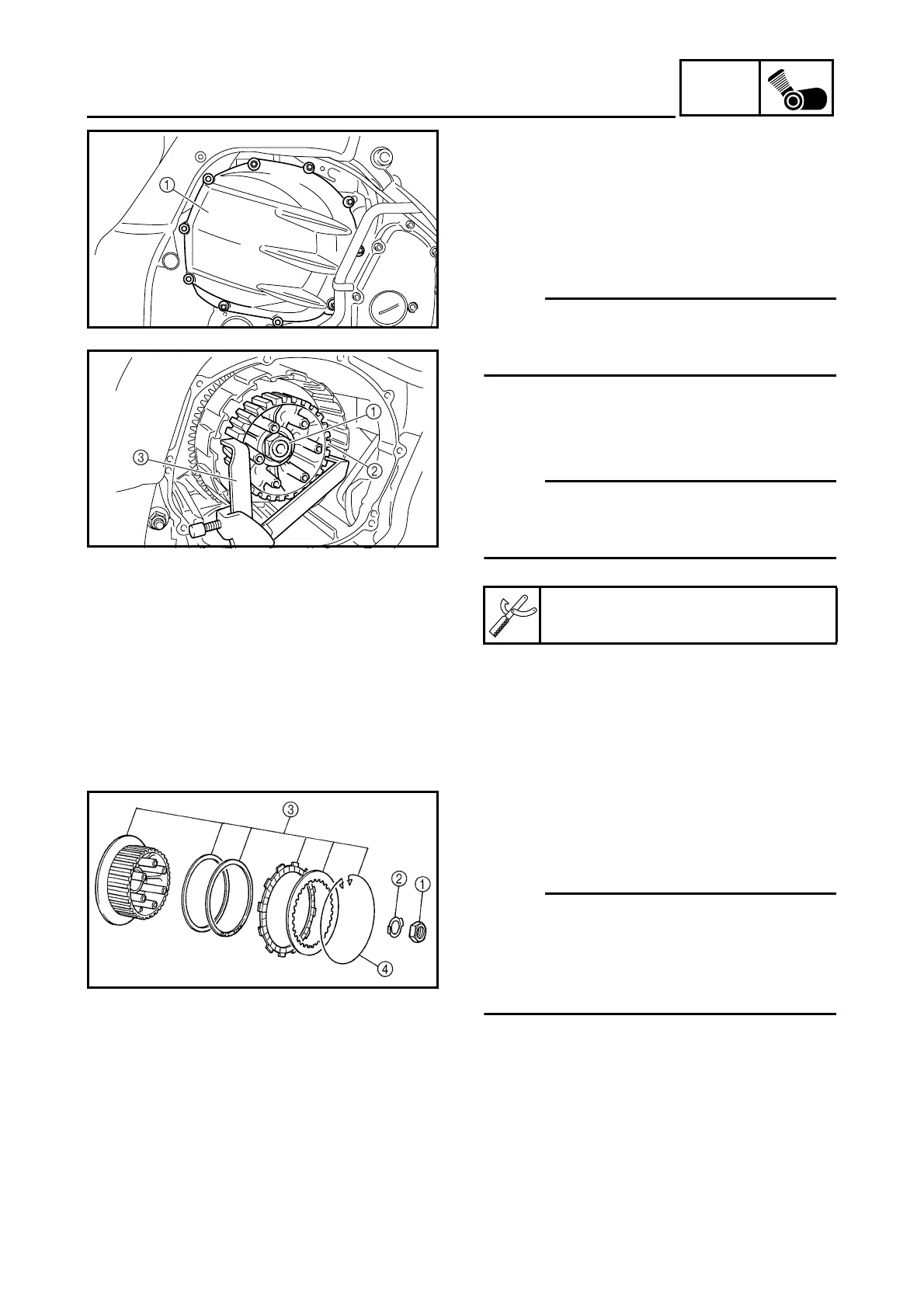

REMOVING THE CLUTCH
1. Remove:
• rear balancer weight
Refer to “BALANCERS”.
2. Remove:
•clutch cover
1
NOTE:
@
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
3. Straighten the lock washer tab.
4. Loosen:
• clutch boss nut
1
NOTE:
@
While holding the clutch boss
2
with the uni-
versal clutch holder
3
, loosen the clutch boss
nut.
Universal clutch holder
90890-04086
5. Remove:
• clutch boss nut
1
• lock washer
2
• clutch boss assembly
3
NOTE:
@
There is a built-in damper between the clutch
boss and the clutch plate. It is not necessary to
remove the wire circlip
4
and disassemble the
built-in damper unless there is serious clutch
chattering.
CLUTCH

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
