Yamaha FJR1300N 2001 User Manual

4 - 26
CHAS
FRONT AND REAR BRAKES
EAS00588

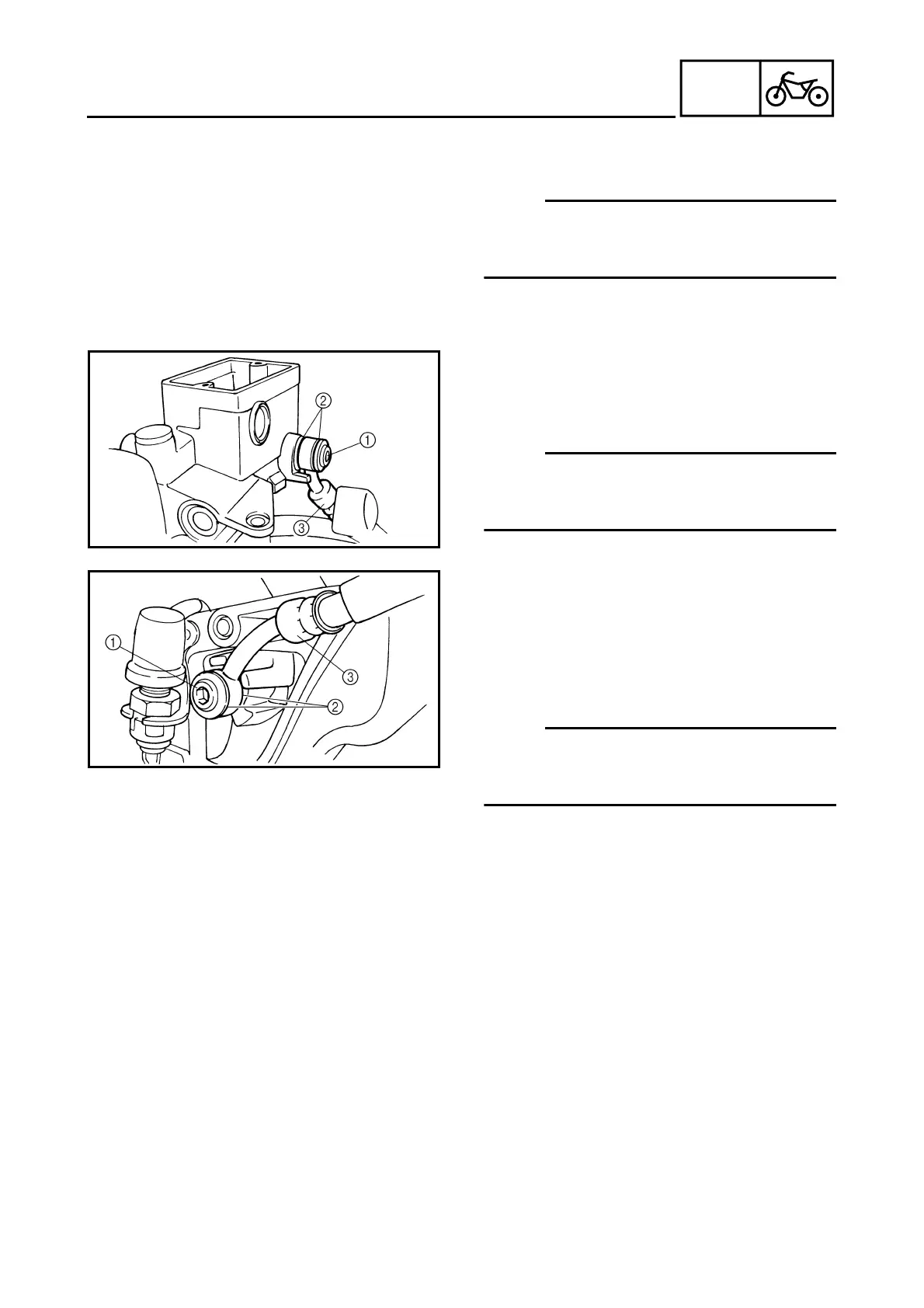

DISASSEMBLING THE FRONT BRAKE
MASTER CYLINDER
NOTE:
@
Before disassembling the front brake master
cylinder, drain the brake fluid from the entire
brake system.
1. Remove:
• union bolt
1
• copper washers
2
• brake hose
3
NOTE:
@
To collect any remaining brake fluid, place a
container under the master cylinder and the
end of the brake hose.
EAS00589
DISASSEMBLING THE REAR BRAKE
MASTER CYLINDER
1. Remove:
• union bolt
1
• copper washers
2
• brake hose
3
NOTE:
@
To collect any remaining brake fluid, place a
container under the master cylinder and the
end of the brake hose.

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
