Yamaha FJR1300N 2001 User Manual

4 - 57
CHAS
EAS00314

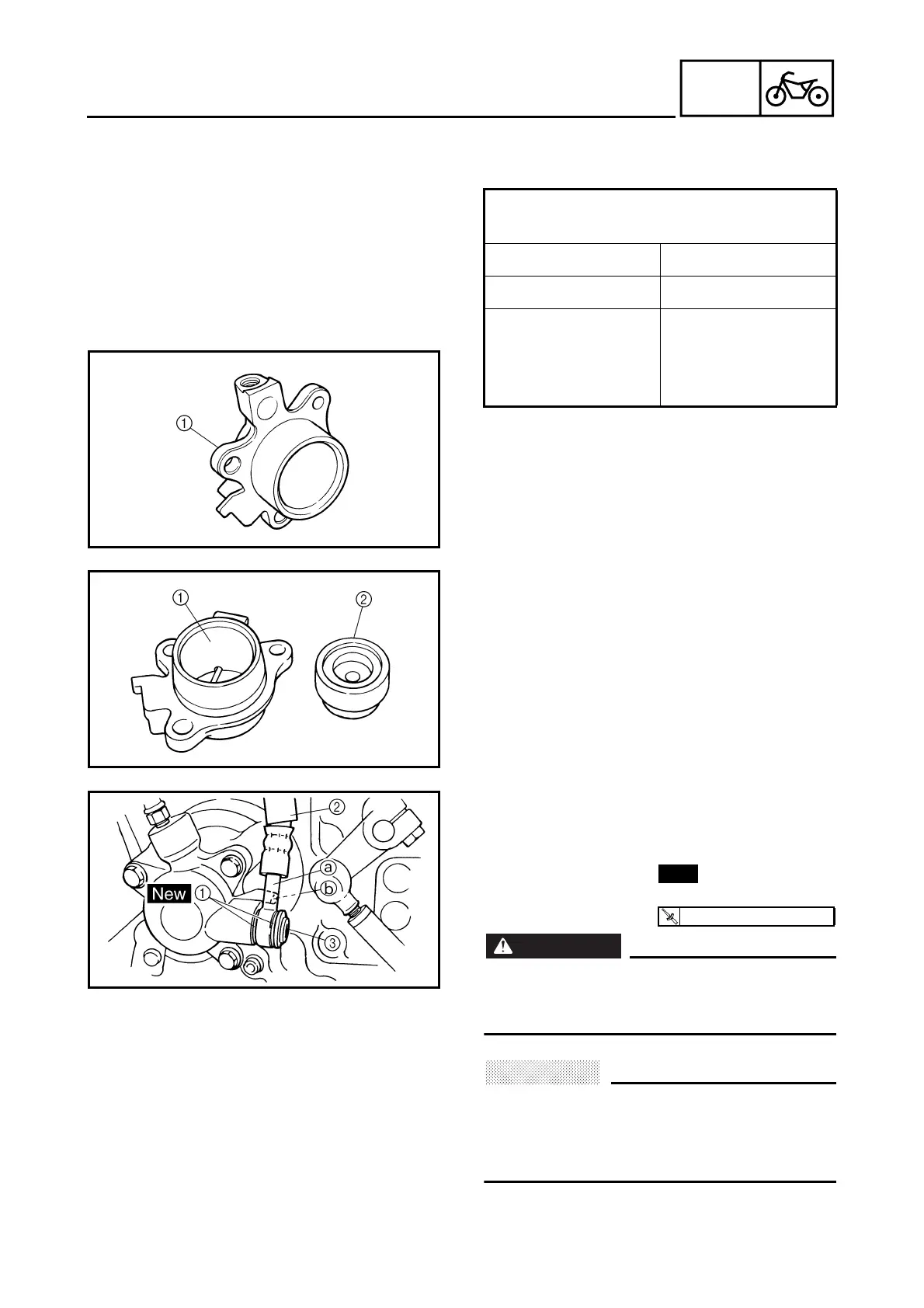

CHECKING THE CLUTCH RELEASE
CYLINDER
1. Check:
• clutch release cylinder body
1
Cracks/damage
→
Replace the clutch
release cylinder.
Recommended clutch component
replacement schedule
Piston seal Every two years
Clutch hose Every two years
Clutch fluid
Every two years
and whenever the
clutch is disassem-
bled
2. Check:
• clutch release cylinder
1
• clutch release cylinder piston
2
Rust/scratches/wear
→
Replace the clutch
release cylinder and clutch release cylinder
piston as a set.
EAS00315
ASSEMBLING AND INSTALLING THE
CLUTCH RELEASE CYLINDER
1. Install:
• copper washers
1
• clutch hose
2
• union bolt
3
WARNING
@
Proper clutch hose routing is essential to
insure safe motorcycle operation. Refer to
“CABLE ROUTING”.
CAUTION:
@
When installing the clutch hose onto the
clutch release cylinder, make sure the
clutch pipe
a
touches the projection
b
on
the clutch release cylinder.
New
T
R
.
.
30 Nm (3.0 m · kg)
HYDRAULIC CLUTCH

Yamaha FJR1300N 2001 Specifications

General

Displacement	1298 cc
Compression Ratio	10.8:1
Fuel System	Fuel injection
Final Drive	Shaft
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Bore x Stroke	79.0 mm x 66.2 mm
Ignition	TCI
Transmission	5-speed
Front Suspension	Telescopic forks
Rear Suspension	Swingarm
Front Brakes	Dual disc
Rear Brakes	282mm disc, single-piston caliper
Wheelbase	805 mm
Seat Height	805 mm
Fuel Capacity	25 liters
Dry Weight	264 kg / 582 lbs
