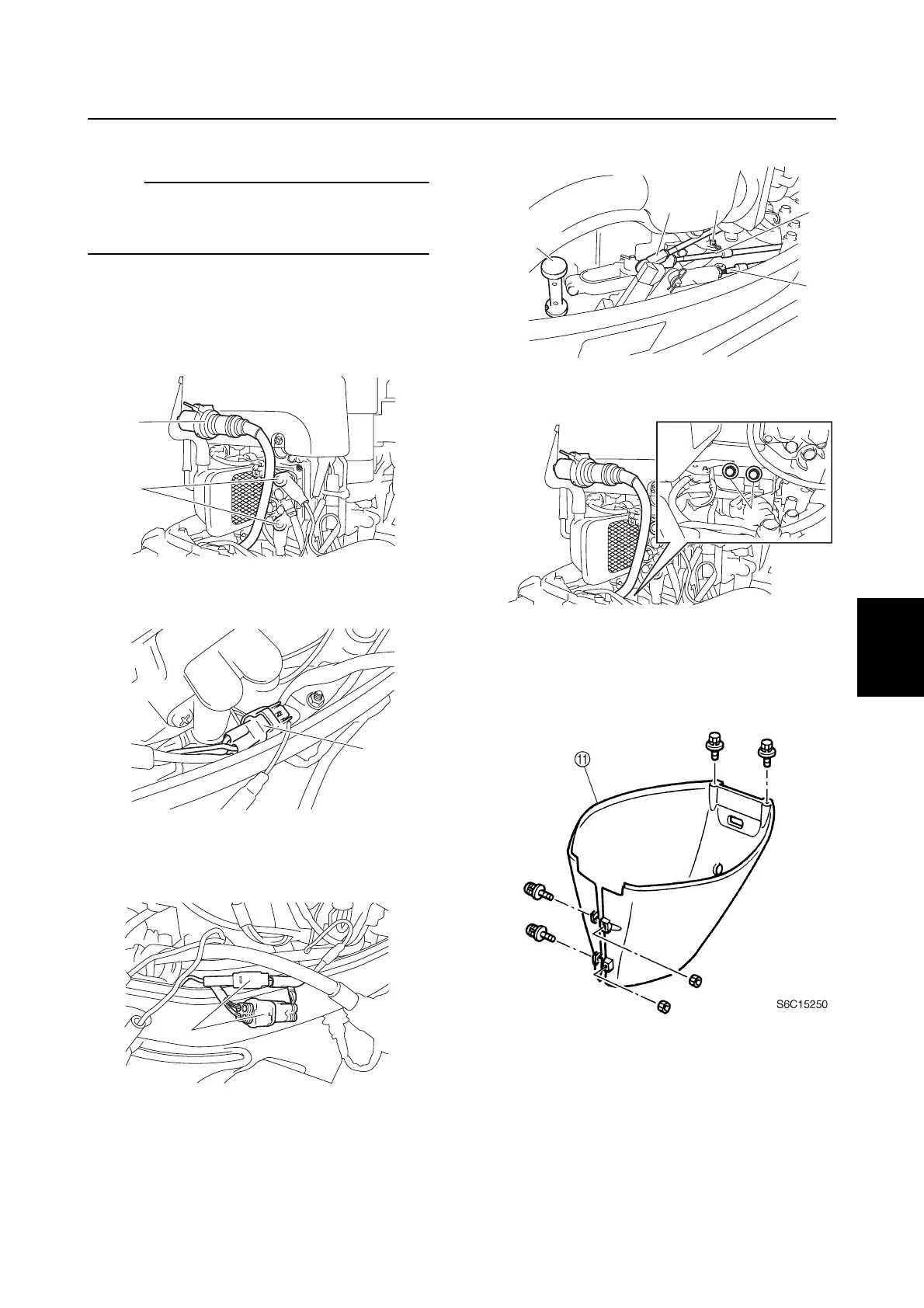

Removing the power unit
NOTE:
It is recommended to loosen the flywheel
magnet nut before removing the power unit to
improve working efficiency.
1. Remove the flywheel magnet cover.
2. Disconnect the battery leads, PTT motor
leads
1
, and main switch coupler
2
.
3. Disconnect the PTT switch coupler
3
.
4. Disconnect the warning indicator cou-
plers
4
(tiller handle model).
5. Disconnect the throttle cable
5
, shift
cable
6
, throttle link rod
7
, and shift
lever
8
.
6. Remove the oil dipstick
9
.
7. Remove the shift rod bolts
0
.
8. Disconnect the cooling water pilot hose,
flushing hose, and fuel hose.
9. Remove the apron
A
.
1
S6C15200
2
S6C15210
3
S6C15220
4
9
7
8
6
5
S6C15230
S6C15240
0
Power unit
