Yamaha FT60D - Installing the Oil Seal Housing; Installing the Propeller Shaft Housing

6C13G11
6-18
1
2
3
4
5
6
7
8
9

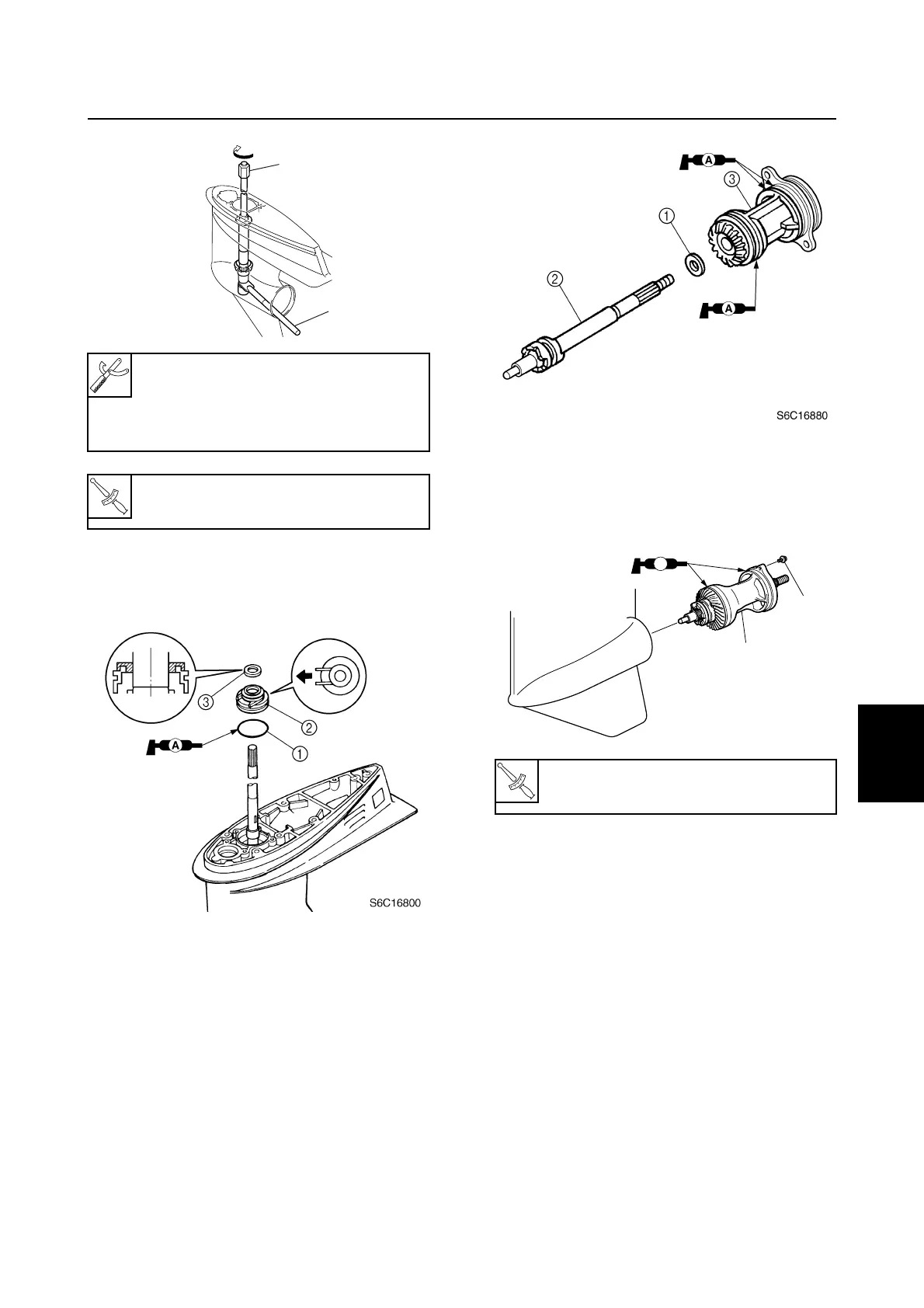

Installing the oil seal housing
1. Install a new O-ring
1
, the oil seal hous-
ing
2
, and the seal
3
.
Installing the propeller shaft housing
1. Install the washer
1
and propeller shaft
assembly
2
into the propeller shaft
housing assembly
3
.
2. Apply grease to a new O-rings.
3. Install the propeller shaft housing assem-
bly
4
into the lower case, and then
tighten the bolts
5
to the specified
torque.
Drive shaft holder 4
1
: 90890-06518
Pinion nut holder
2
:
New: 90890-06715
Current: 90890-06505
T
R
.
.
Pinion nut:
74 N·m (7.4 kgf·m, 54.6 ft·lb)
S68S6400
1
2
T
R
.
.
Propeller shaft housing bolt
5
:
16 N·m (1.6 kgf·m, 11.8 ft·lb)
S6C16890
4
5
D
Drive shaft and lower case (F50, F60)
