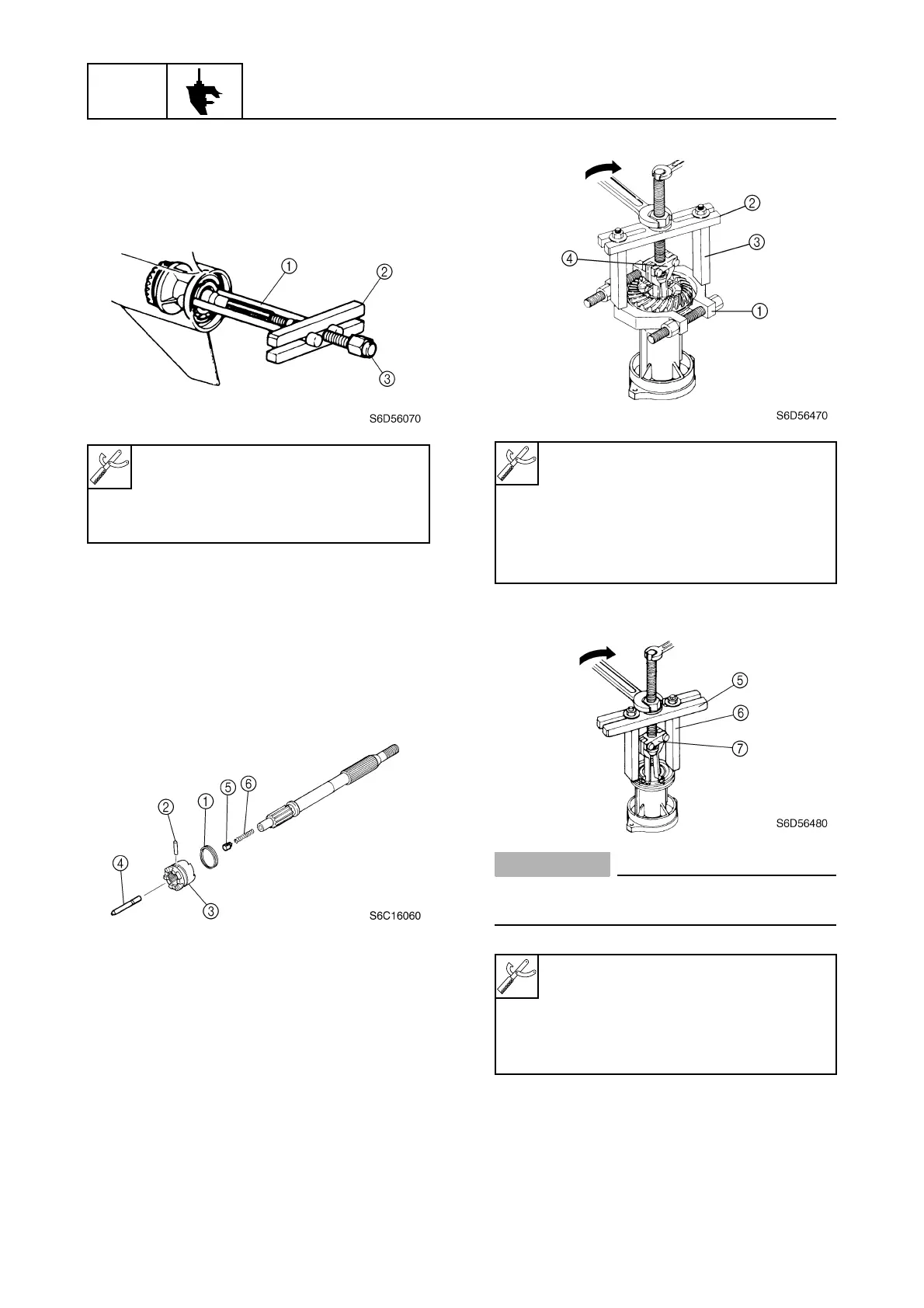

LOWR
Lower unit
6-9
6C13G11
Removing the propeller shaft
housing assembly
1. Remove the bolts, and then pull out the
propeller shaft housing assembly.
2. Remove the propeller shaft assembly.
Disassembling the propeller shaft
assembly
1. Remove the spring
1
, then the cross pin
2
, dog clutch
3
, shift plunger
4
, shift
slider
5
, and spring
6
.
Disassembling the propeller shaft
housing
1. Remove the reverse gear and reverse
gear shim(s).
2. Remove the ball bearing.
CAUTION:
Do not reuse the bearing, always replace
it with a new one.
3. Remove the oil seals and needle bear-
ing.
Bearing housing puller claw S
1
:
90890-06564
Stopper guide plate
2
: 90890-06501
Center bolt
3
: 90890-06504
Bearing separator
1
: 90890-06534
Stopper guide plate
2
: 90890-06501
Stopper guide stand
3
:
90890-06538
Bearing puller assembly
4
:
90890-06535
Stopper guide plate
5
: 90890-06501
Stopper guide stand
6
:
90890-06538
Bearing puller assembly
7
:
90890-06535
