Yamaha FT60D - Assembling the Power Trim and Tilt Unit

BRKT
Bracket unit
7-45
6C13G11

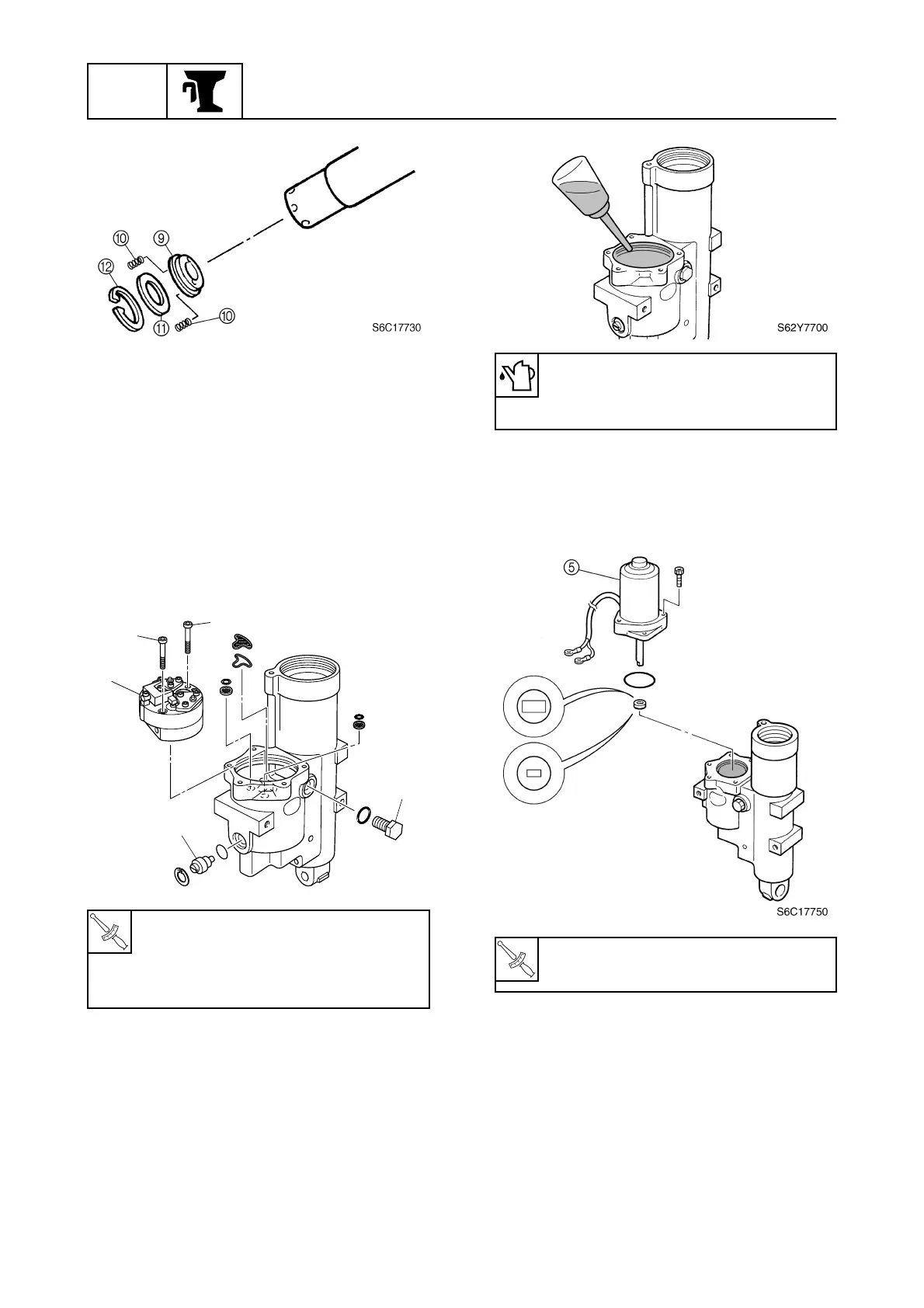

Assembling the power trim and tilt
unit
1. Hold the trim cylinder in a vise using alu-
minum plates on both sides.
2. Install the filters and gear pump assem-
bly
1
by installing the bolts
2
, then tight-
ening them to the specified torque.
3. Install the manual valve
3
and reservoir
cap
4
.
4. Fill the reservoir with the recommended
fluid to the correct level as shown.
5. Install the new O-ring, joint, and power
trim and tilt motor
5
by installing the
bolts, then tightening them to the speci-
fied torque.
6. Add fluid of the recommended type to the
first level at the bottom of the trim cylin-
der.
T
R
.
.
Gear pump bolt
2
:
5 N·m (0.5 kgf·m, 3.7 ft·lb)
Reservoir cap
4
:
7 N·m (0.7 kgf·m, 5.2 ft·lb)
S6C17740
2
1
3
4
2
Recommended power trim and tilt
fluid:
ATF Dexron
II
T
R
.
.
PTT motor bolt:
4 N·m (0.4 kgf·m, 3.0 ft·lb)
