Yamaha FT60D - Top View

6C13G11
8-6
1
2
3
4
5
6
7
8
9

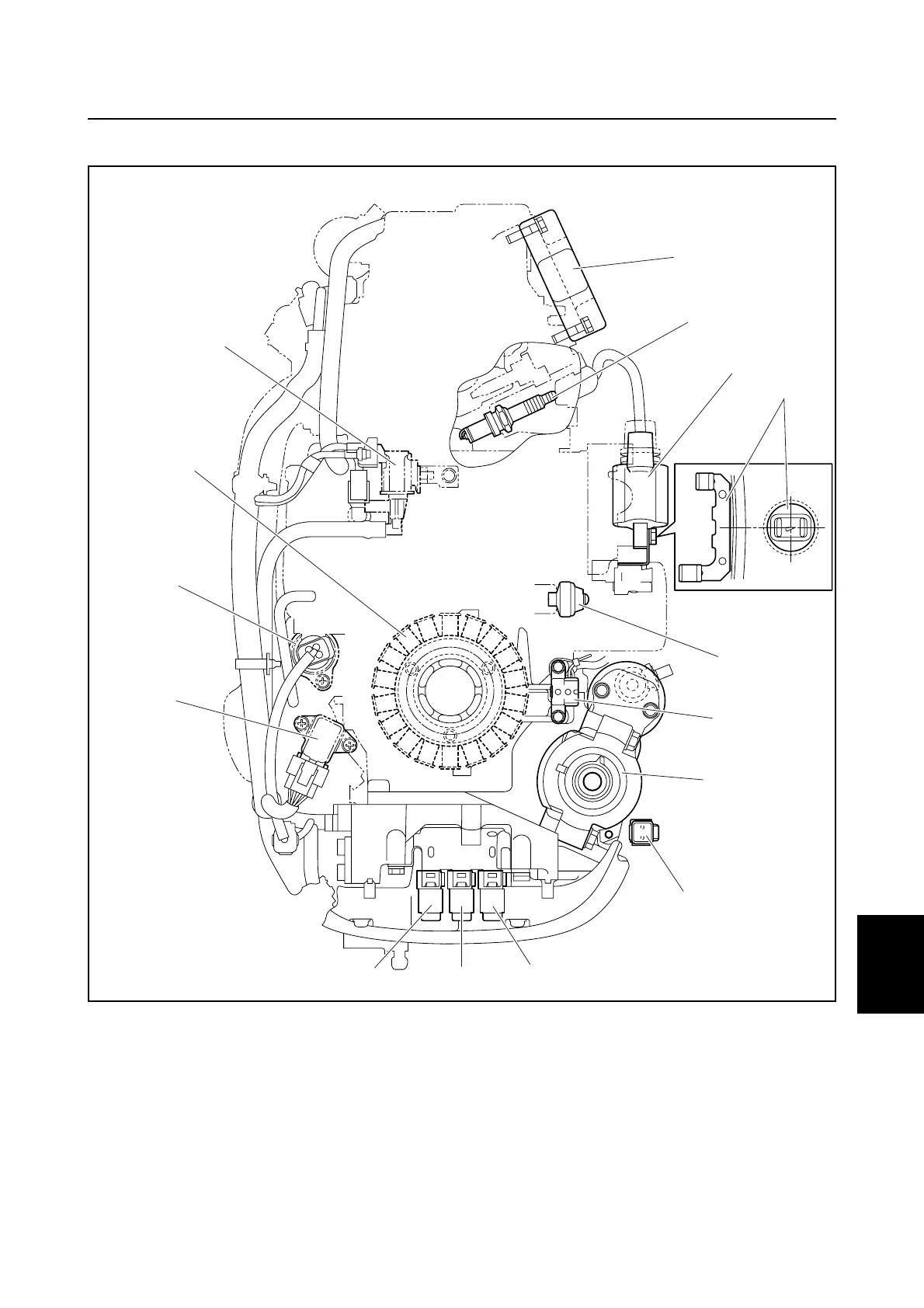

Top view
1
Solenoid valve
2
Rectifier Regulator
3
Spark plug
4
Ignition coil
5
Power trim and tilt switch
(remote control model)
6
Oil pressure switch
7
Pulser coil
8
Starter motor
9
Fuse (30 A) (starter relay)
0
Fuse (20 A) (Rectifier Regulator)
A
Fuse (20 A) (main switch and power trim and
tilt switch)
B
Fuse (20 A) (ECM, ignition coil, electric fuel
pump, fuel injection, idle speed control, and
vapor separator)
C
Sensor assembly (intake air temperature and
intake air pressure)
D
Idle speed control
E
Stator coil
S6C18190
1
2
3
4
5
6
7
8
9
0
A
B
C
D
E
Electrical components
