Yamaha FT60D - Checking the Cooling Water Temperature Sensor; Checking the Shift Position Switch; Checking the Neutral Switch (Tiller Handle Model); Checking the Main and Fuel Pump Relay (Main Control)

ELEC
Electrical systems
– +
8-11
6C13G11
4. Check the switch for no continuity at the
specified pressure. Replace if there is
continuity.

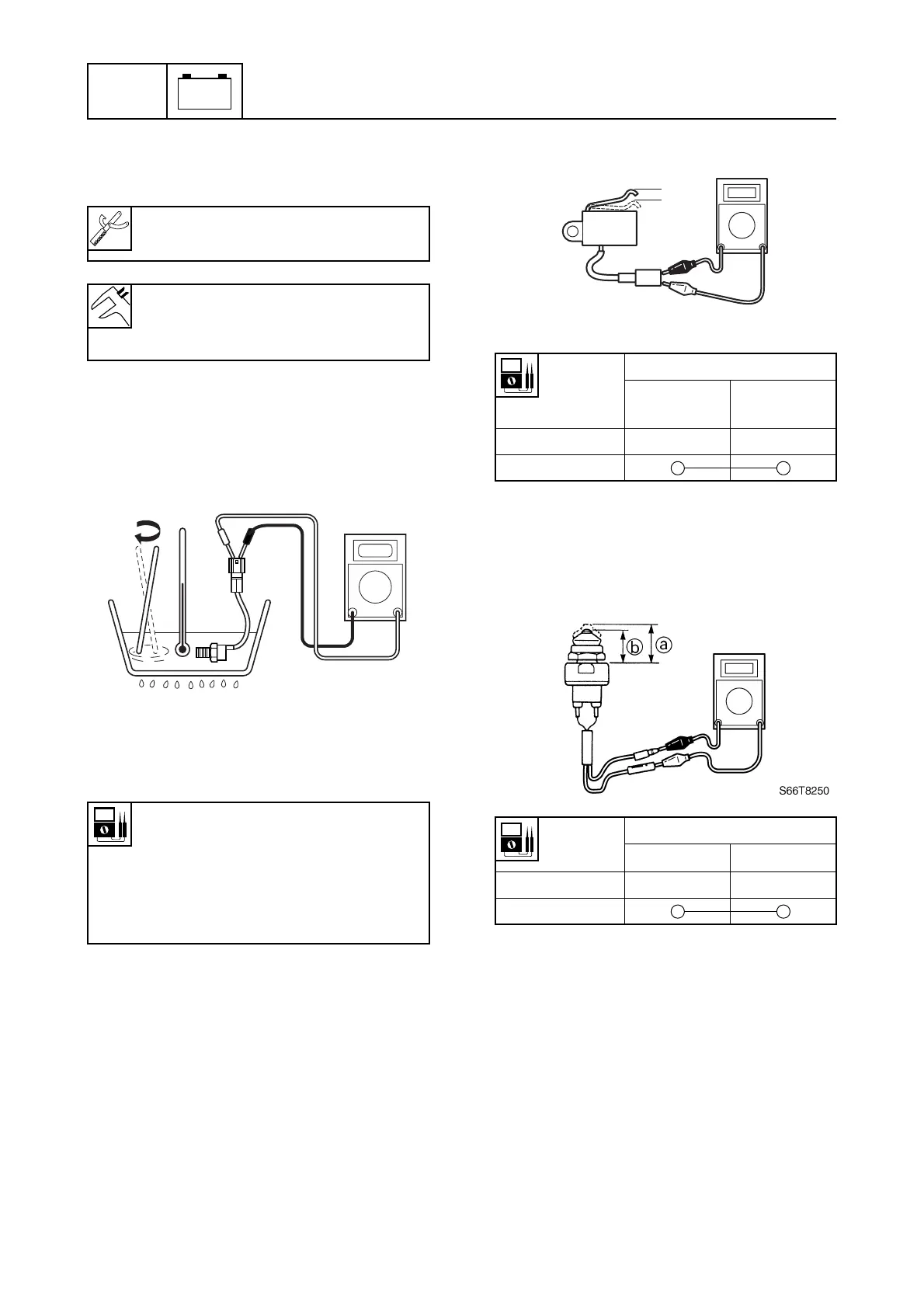

Checking the cooling water
temperature sensor
1. Place the cooling water temperature sen-
sor in a container of water and slowly
heat the water.
2. Measure the cooling water temperature
sensor resistance. Replace if out of spec-
ification.
Checking the shift position switch
1. Check the shift position switch for conti-
nuity. Replace if there is no continuity.
Checking the neutral switch (tiller
handle model)
1. Check the neutral switch for continuity.
Replace if there is no continuity.
Checking the main and fuel pump
relay (main control)
1. Remove the main and fuel pump relay
1
.
Vacuum/pressure pump gauge set:
90890-06756
Specified oil pressure:
29.4–58.8 kPa
(0.29–0.59 kgf/cm
2
, 4.26–8.53 psi)
Cooling water temperature sensor
resistance:
Black/yellow (B/Y) – Black (B)
at 20 °C (68 °F): 2.439 k
Ω
at 60 °C (140 °F): 0.589 k
Ω
at 100 °C (212 °F): 0.193 k
Ω
S69J8240
Switch
position
Lead color
Blue/green
(L/G)
Black (B)
Free
a
Push
b
Switch
position
Lead color
Brown (Br) Brown (Br)
Free
a
Push
b
S69J8270
a
b
