POWR
Power unit
5-49
6C13G11

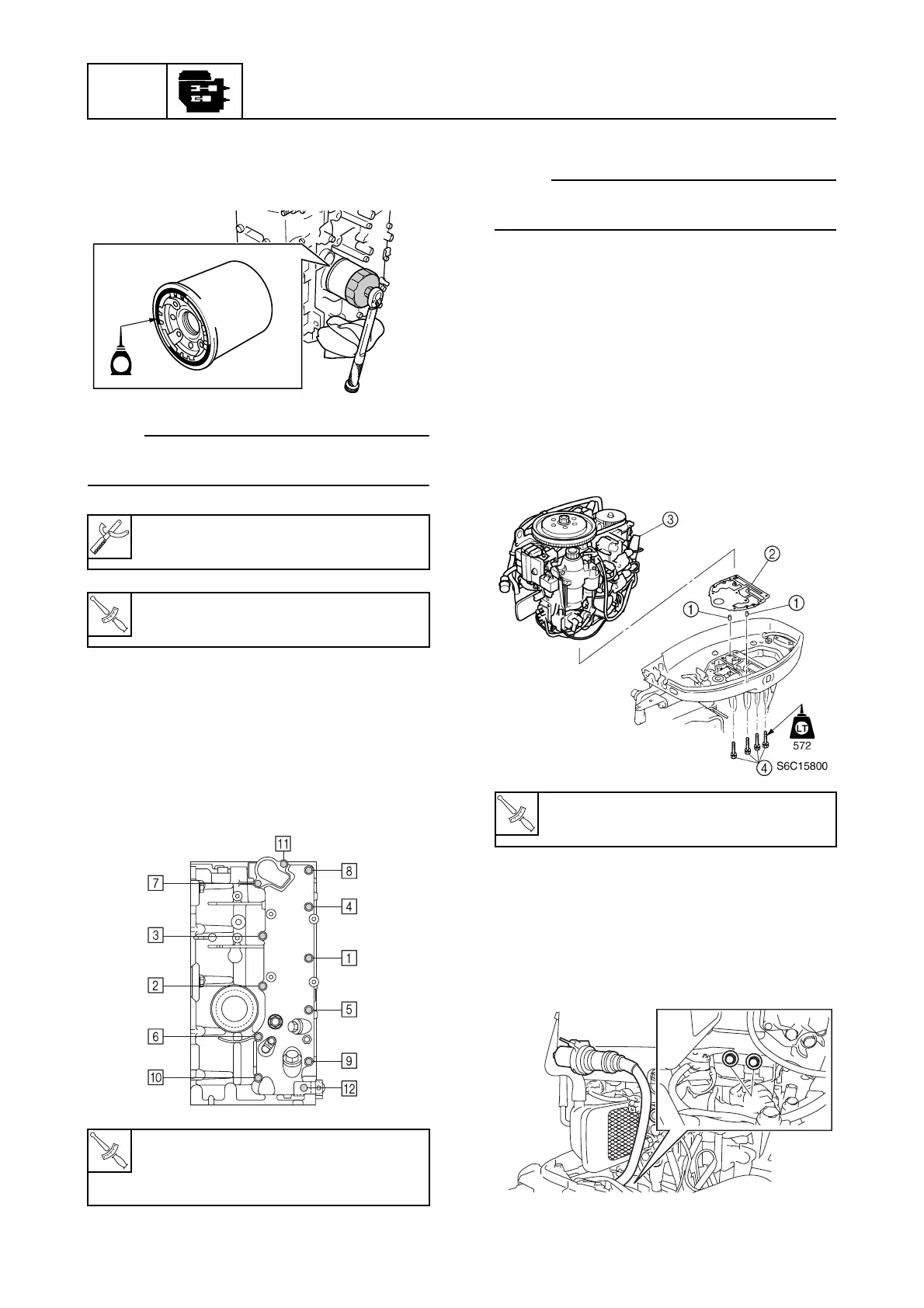

14. Install the oil filter, and then tighten it to
the specified torque using the oil filter
wrench.
NOTE:
Apply a thin coat of engine oil to the O-ring of
the new oil filter before installation.
15. Install a new gasket and the exhaust
cover.
16. Install the thermostat and thermostat
cover, and then tighten the bolts to the
specified torques in two stages and in the
sequence shown.
17. Install the cylinder head.
NOTE:
For installation procedure, see “Installing the
cylinder head.”
Installing the power unit
1. Clean the power unit mating surface, and
install the dowels
1
and a new gasket
2
.
2. Install the power unit
3
by installing the
bolts
4
, then tightening them to the
specified torque.
3. Install the apron.
4. Connect the flushing hose, cooling water
pilot hose, and fuel hose.
5. Install the oil dipstick.
6. Install the shift rod bolts
5
.
Oil filter wrench: 90890-01426
T
R
.
.
Oil filter:
18 N·m (1.8 kgf·m, 13.3 ft·lb)
T
R
.
.
Exhaust cover bolt:
1st: 6 N·m (0.6 kgf·m, 4.4 ft·lb)
2nd: 12 N·m (1.2 kgf·m, 8.9 ft·lb)
S6C15780
E
S6C15790
Power unit mounting bolt
4
:
27 N·m (2.7 kgf·m, 20.0 ft·lb)
S6C15810
5
